Head boxes behind each other

Opposite pull blind systems with cassettes placed behind each other are needed when there is not enough space on one side for installation or for aesthetic reasons. In this case, only a deflection pulley is placed on the side without a cassette. The pull cord then runs behind the pulley back into the second cassette. Typically, the film and bottom bar are mounted in a rotated position.

The construction-related light gap is slightly narrower in this version but can also be covered with a cover profile. Side guidance is done through special profiles that cover the light gap and protect and guide the pull cord.

• All profiles and covers are made of aluminium and available in anodized or any RAL colour.

• Geometric shapes can be solved in various options.



Generally, there are two variations:

Variants with double pull cord:

• Pull cords running in front of the screen. (Motor is at the front)
• Deflection pulleys visible on the room side
• Bottom bar and film mounted rotated

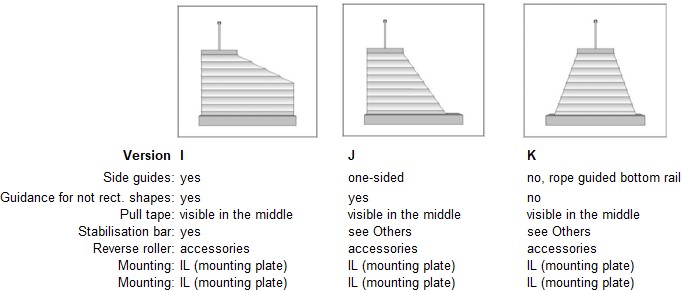

Variants with one middle Pull Cord

• Pull cord mounted in the center – Bottom bar max. 500 mm wide
• Pull cords run in front of the screen (Motor is at the front)
• Reverse rollers are visible from the room side
• Bottom bar and film mounted rotated
