Compact-Line

The Compact-Line offers an elegant solution for shading glass surfaces up to 1500 x 2000 mm, thanks to its particularly small cassette (35 x 35 mm).

Advantages:

  • Easy installation: Plug-/adhesive-mounting without screws, fast and clean.

  • Residue-free removal: Ideal for rental properties or temporary applications.

  • Gentle on the facade: No damage from drilling.

  • Perfect for retrofitting and modern glass facades.

Head Box Size
type widthheight
CO35 mm35 mm
COg35 mm35 mm
Maximum Dimensions
Head BoxCO/COg
max. width1500 mm
max. height - chain operation2000 mm
Note! Maximum Width-to-Height Ratio: 1:4
Possible Operating Options
OperatingCOCOg
chain++
cord--
Multistop--
12 V Wireless Motor / 24 V Wired Motor--
Variants

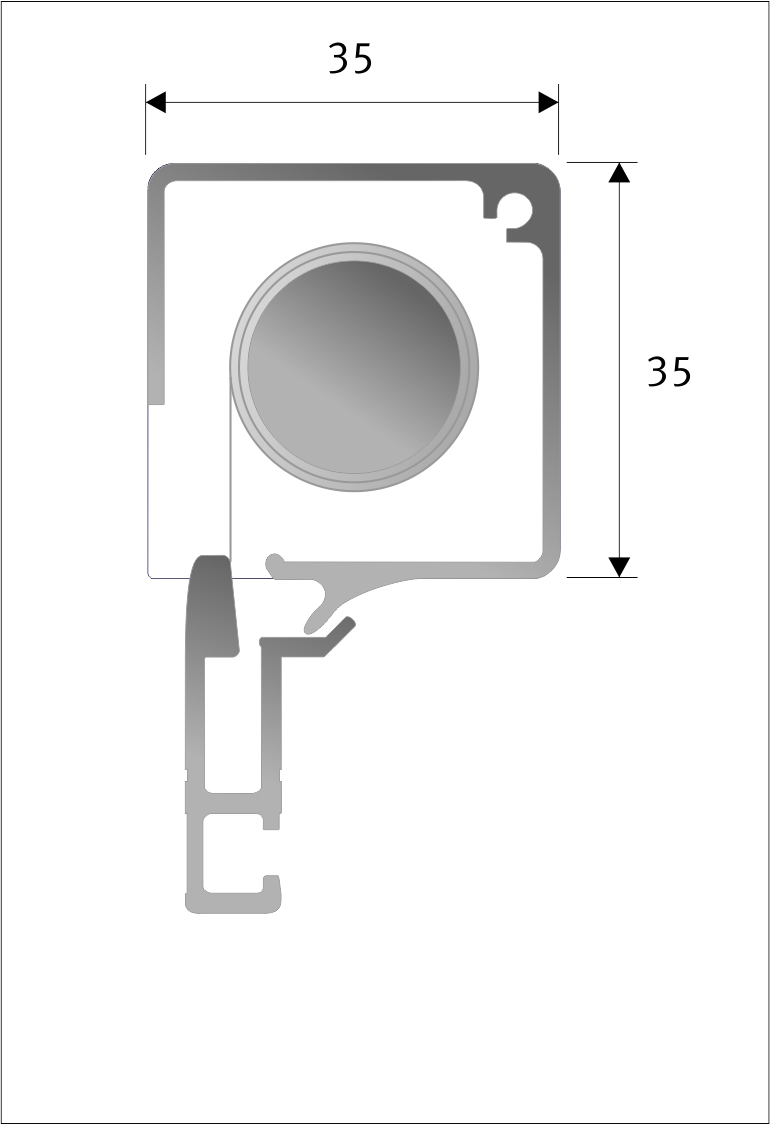

Head box COg (closed) for mounting into frame

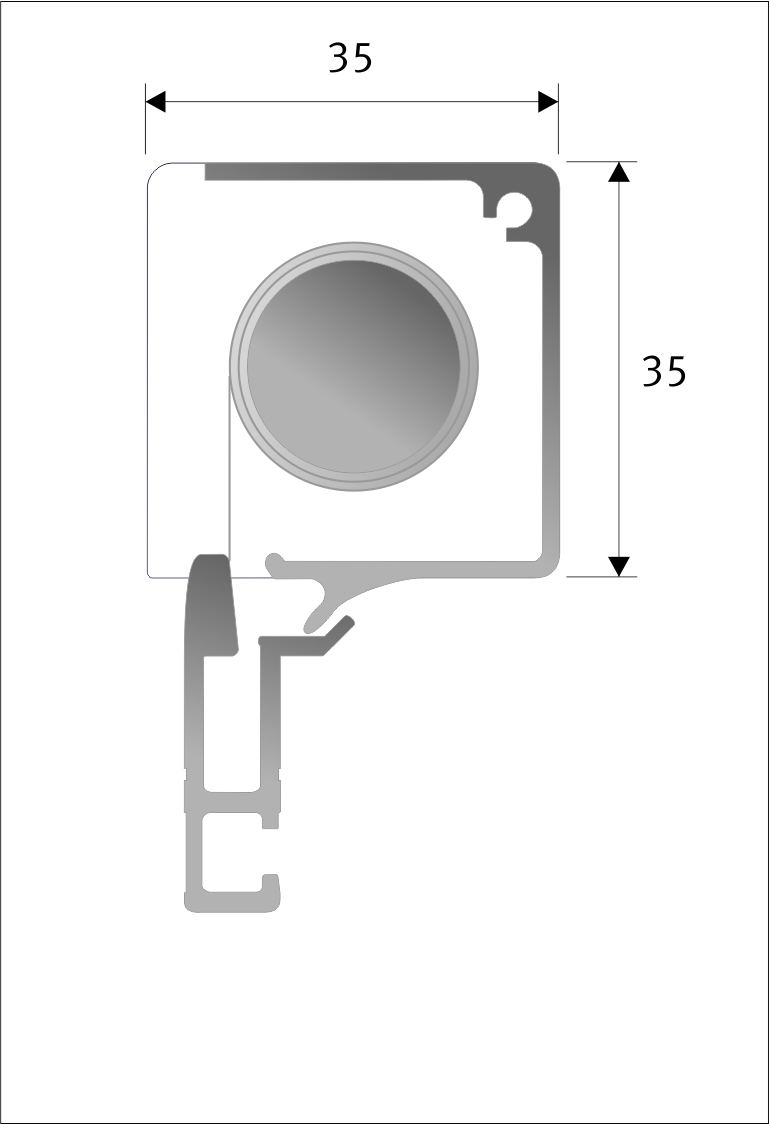

Head box CO (open) for mounting on the frame
