Flexi-Line Large

The Flexi-Line Large system offers versatile options for large fabric panels. In addition to the C5 and R5 cassettes, it is possible to work completely without covers – ideal for suspended ceilings, where the components are integrated in a protected and invisible manner. Depending on fabric thickness and panel length, widths of up to 4000 mm can be realized, with the width-height ratio being a maximum of 1:4.



Installation options:

  • Without cover:

With open carriers – optionally with or without a carrier rail (carrier rail recommended)

Rope guidance possible or decorative free-hanging with heavy end bar.

  • With cover:

Selection between square C5 cover or round R5 cover

Both side guides and rope guides are possible when used with covers



  • Drive optionally via chain or all standard 220-Volt motors

  • Aluminium parts available in RAL colours

  • Plastic parts available in grey, white, and upon request in black

Head Box Size
type widthheight

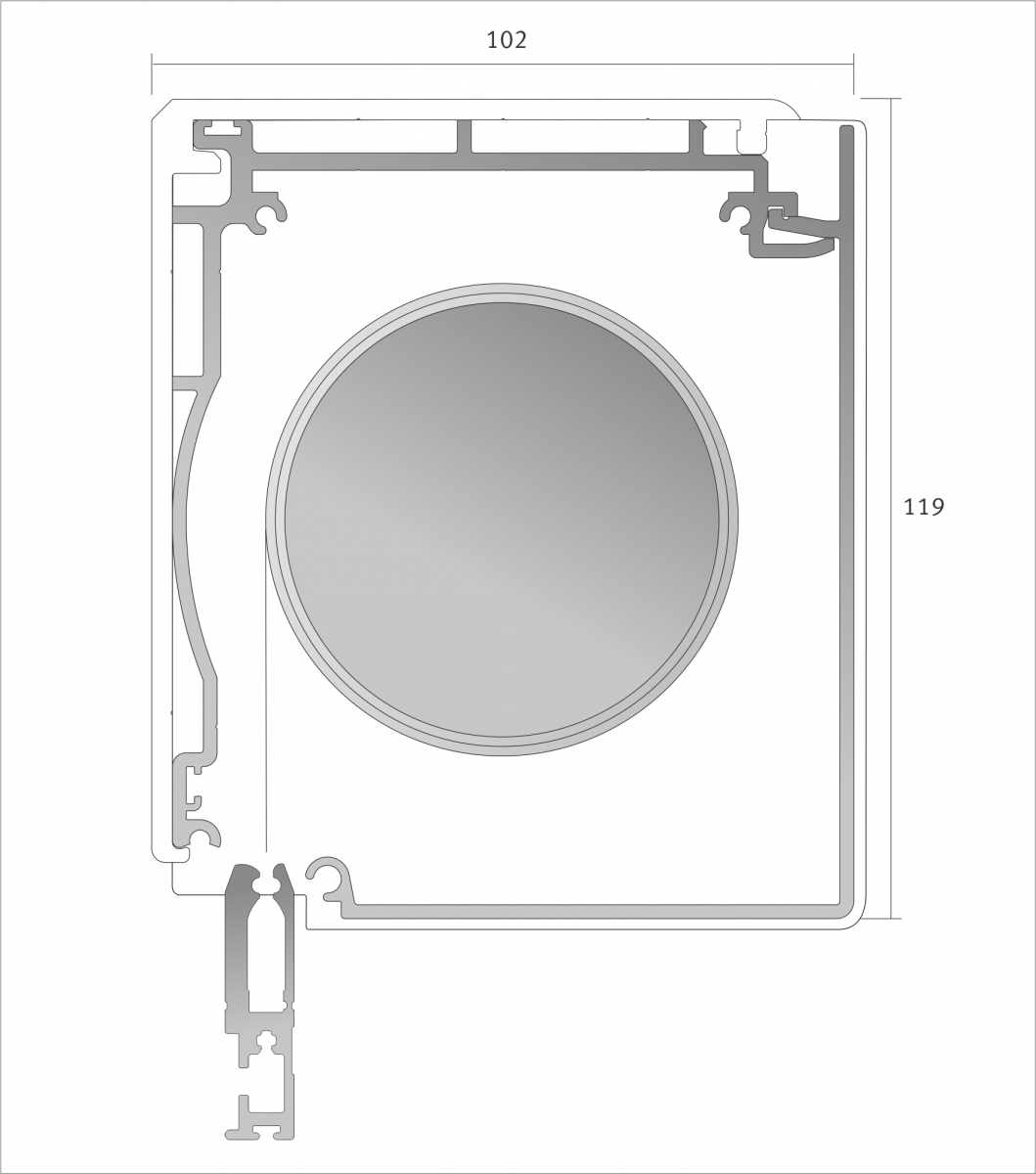

C5102 mm119 mm

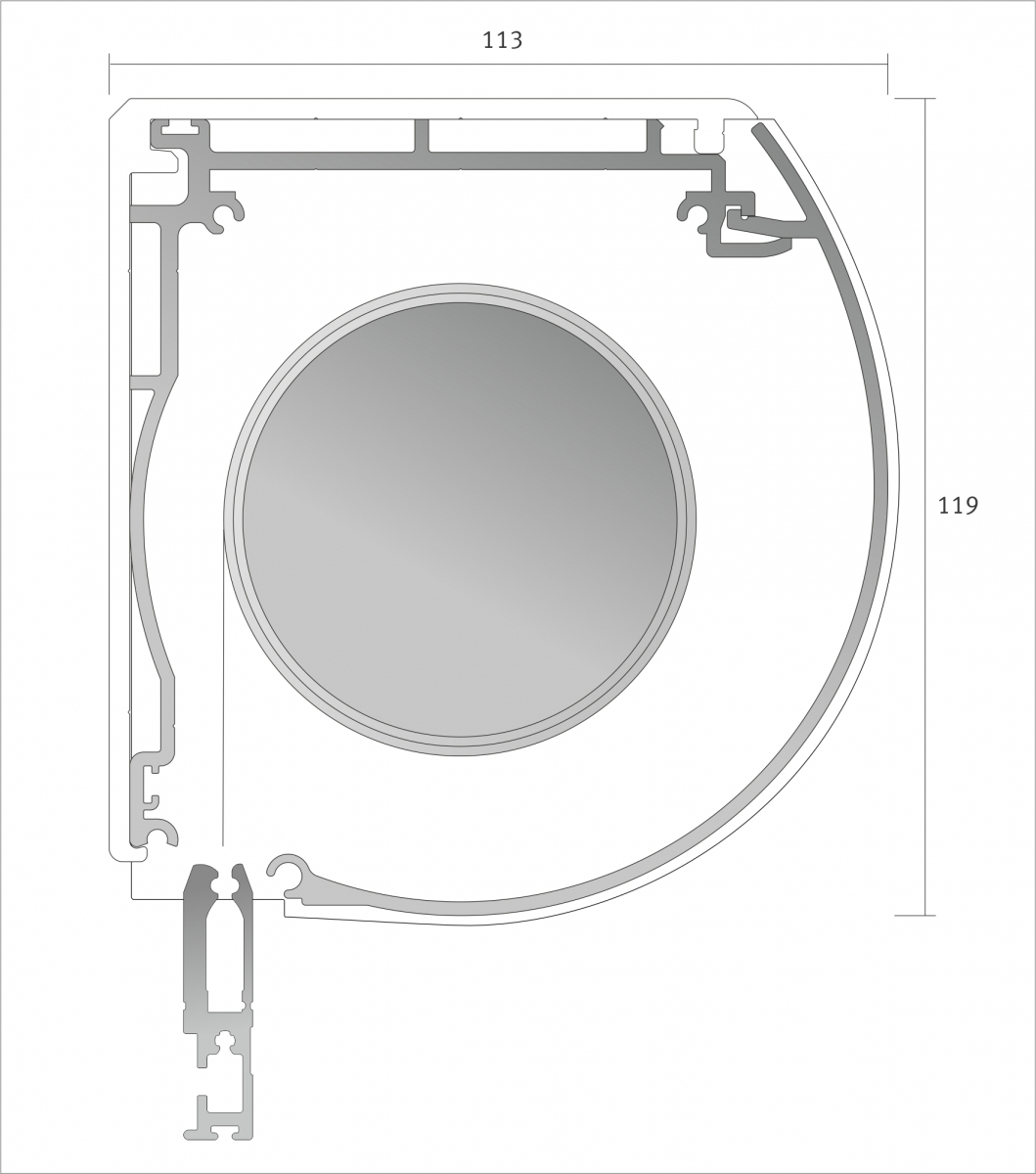

R5113 mm119 mm

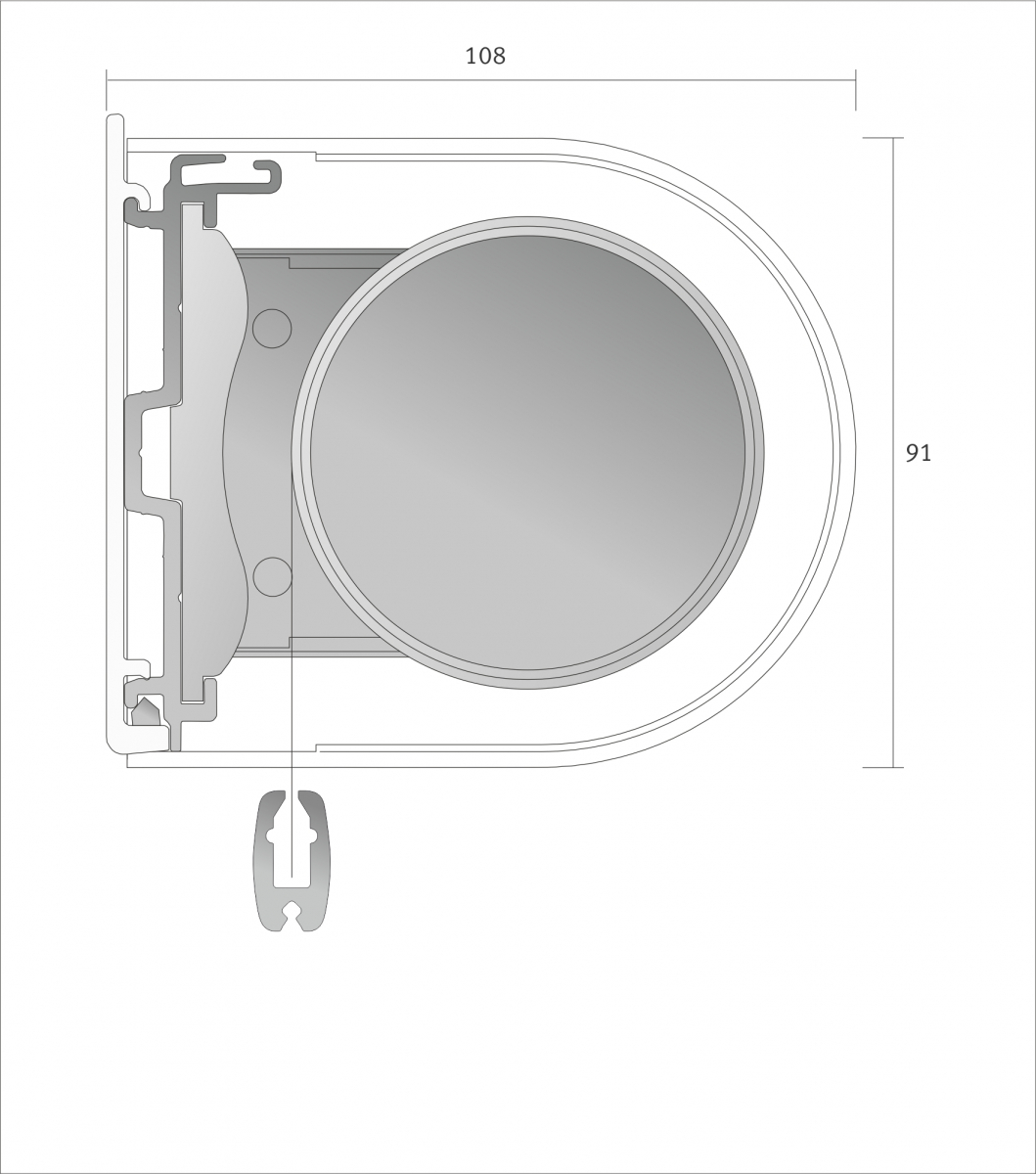

Carrier Rail108 mm91 mm

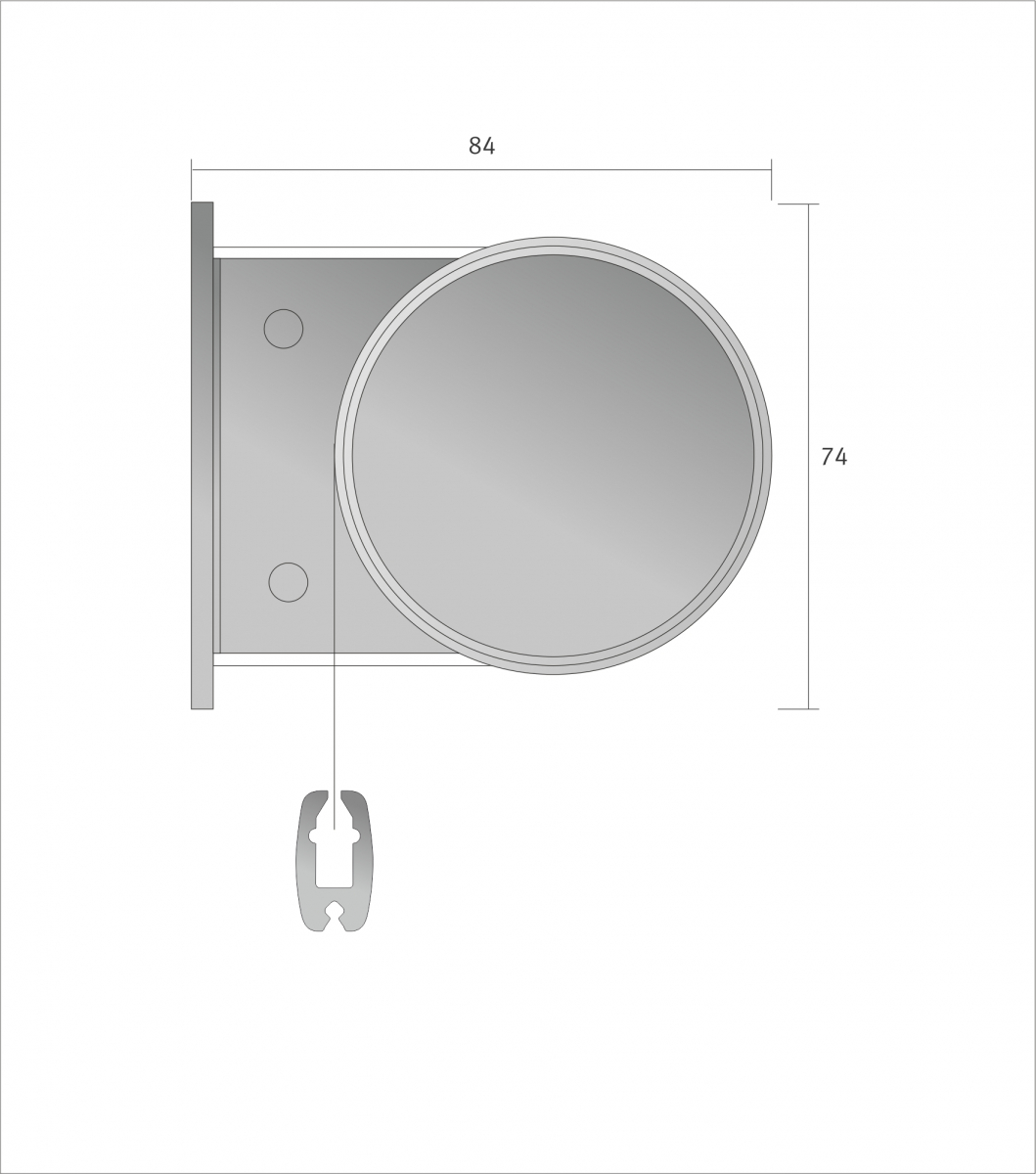

Carrier84 mm74 mm
Maximum Dimensions
Head BoxC5/ R5Carrier RailCarrier
max. width4000 mm4000 mm4000 mm
max. height - chain operation5000 mm5000 mm5000 mm
max. height - motor operation5000 mm5000 mm5000 mm
Note! Maximum Width-to-Height Ratio: 1:4
Possible Operating Options
OperatingC5/ R5Carrier RailCarrier
chain+++
cord---
Multistop---
12 V Wireless Motor / 24 V Wired Motor+++
230 V Wired Motor+++
Variants
MultiTex® Flexi-Line Large C5
MultiTex® Flexi-Line Large R5
MultiTex® Flexi-Line large Carrier Rail
MultiTex® Flexi-Line Large Carrier
