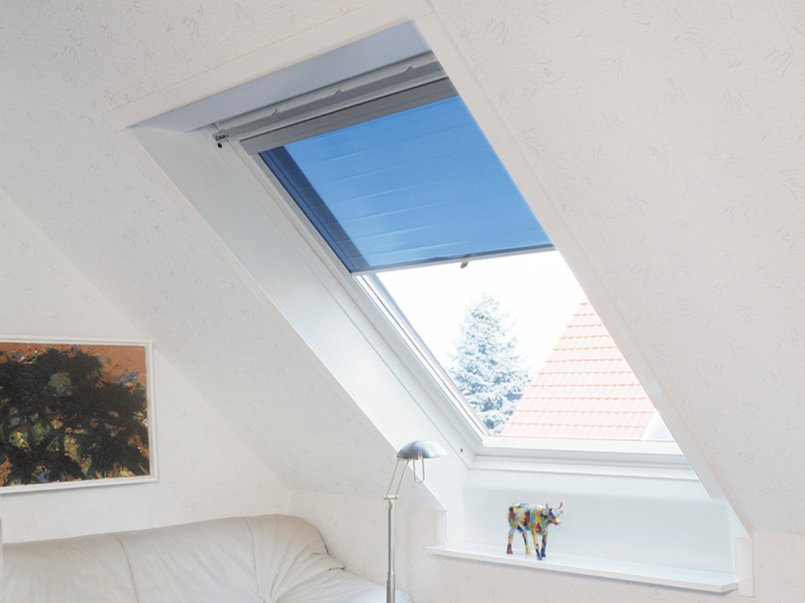

MultiStop roller blinds for Velux and other roof windows
MULTIFILM also offers solutions for roof and horizontal tilt windows. Most roof windows can be equipped with the MultiStop system. Freely adjustable manual operation, either at the bottom bar bar or via a special telescopic rod.
• MULTIFILM - Heat and glare protection, especially for roof areas, reduces heating and saves energy
• The spring-loaded roller allows easy freely adjustable operation – telescopic rod is optional
• Two panels can be placed opposite each other on one window – heat protection or darkening
| type | width | height |
|---|---|---|
| R1 | 42 mm | 46 mm |
| C1 | 44 mm | 43 mm |
| C2 | 57 mm | 55 mm |
| D1 | 41 mm | 44 mm |
| Head Box | R1/C1 | C2 | D1 |
|---|---|---|---|
| max. width | 1500 mm | 1500 mm | 1500 mm |
| max. height | 1800 mm | 2000 mm | 1600 mm |
Depending on the width-to-height ratio
Variants

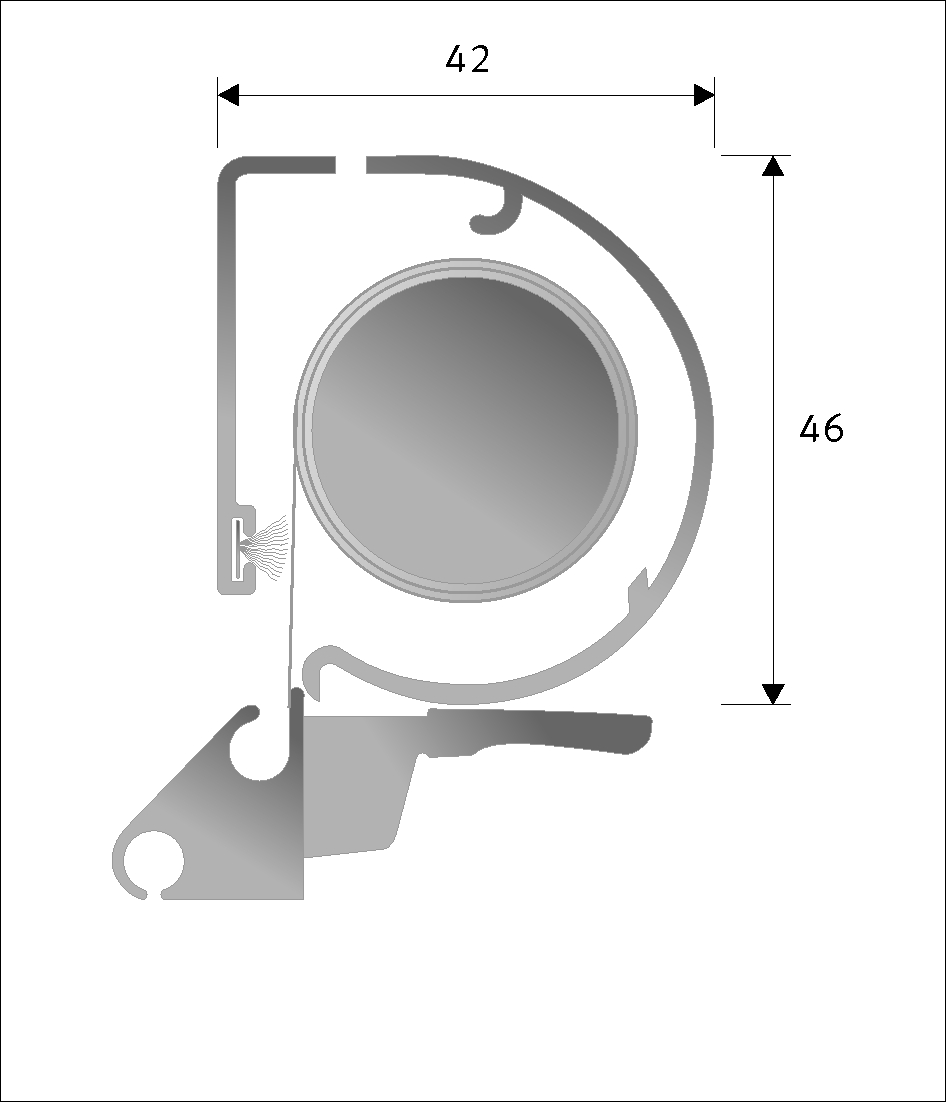

MultiStop R1 mounting on the frame

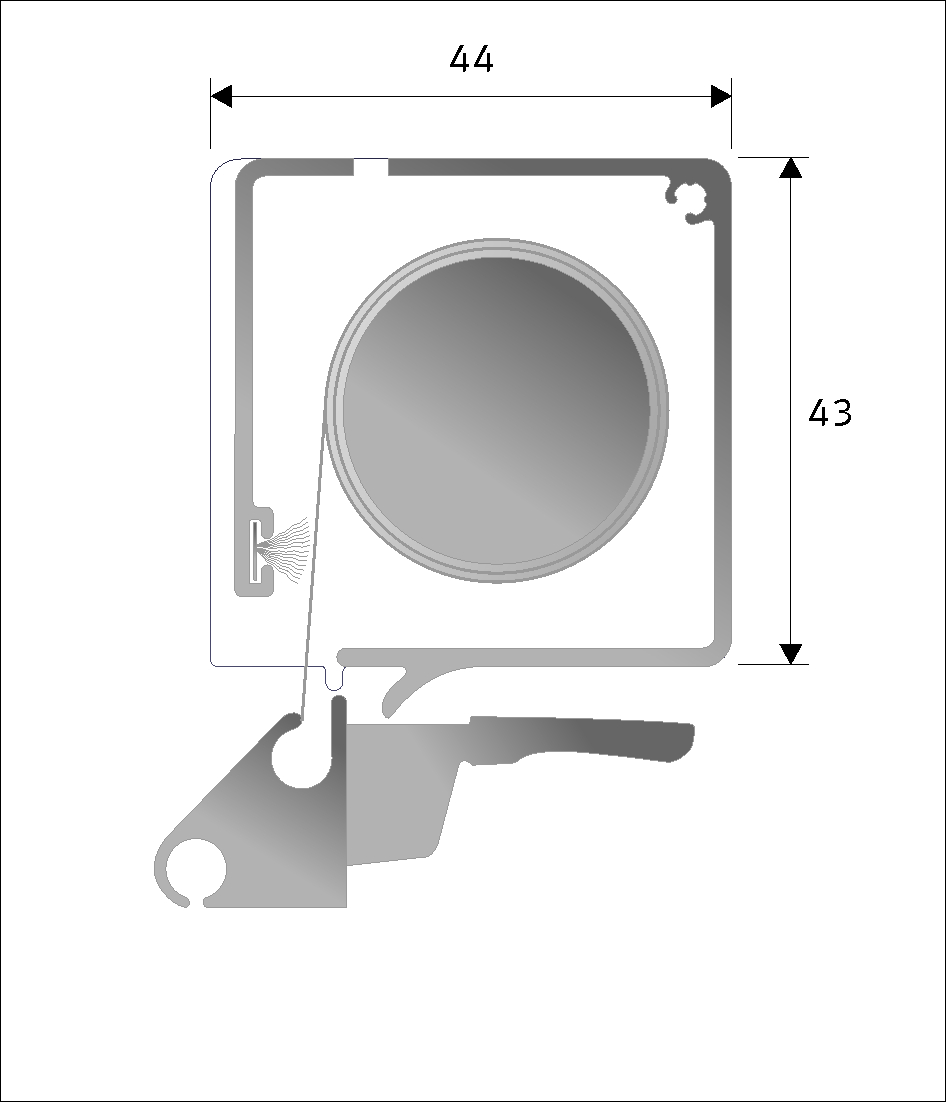

MultiStop C1 mounting on the frame

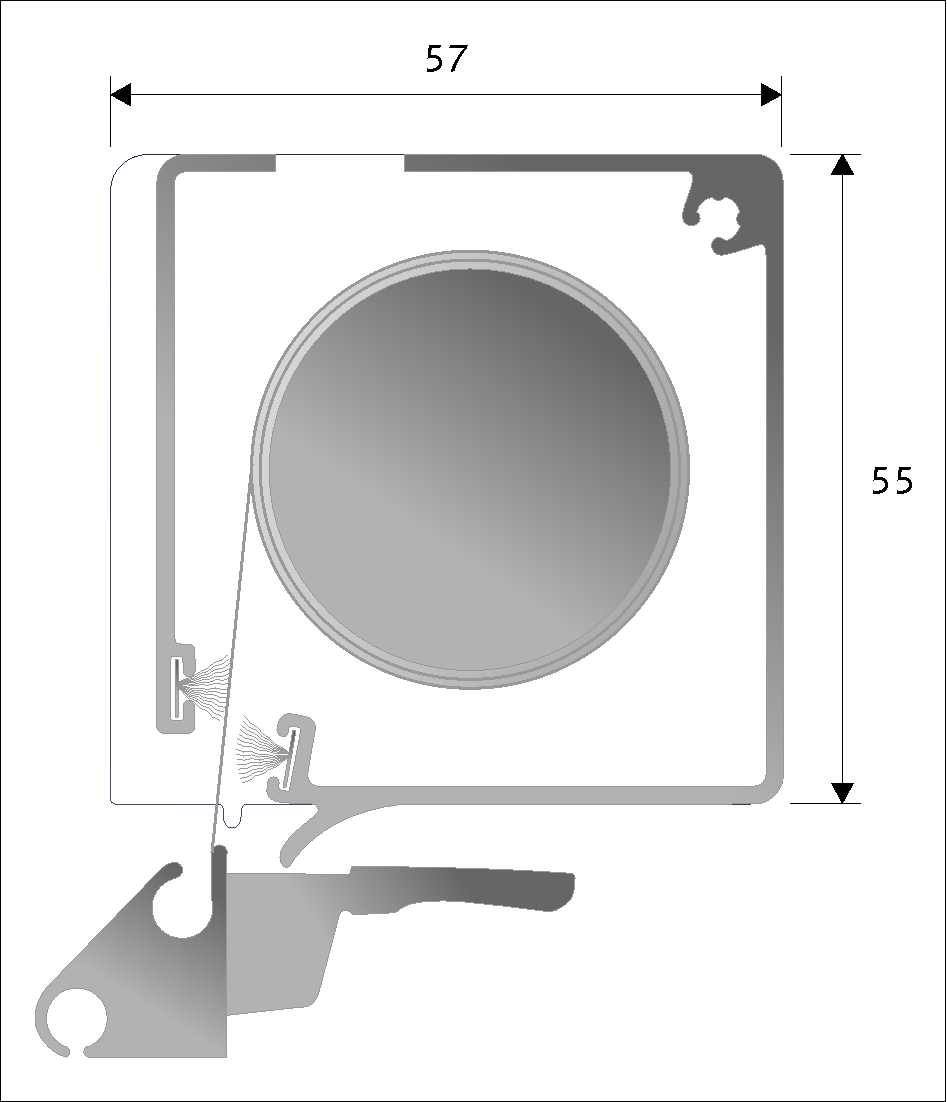

MultiStop C2 mounting on the frame

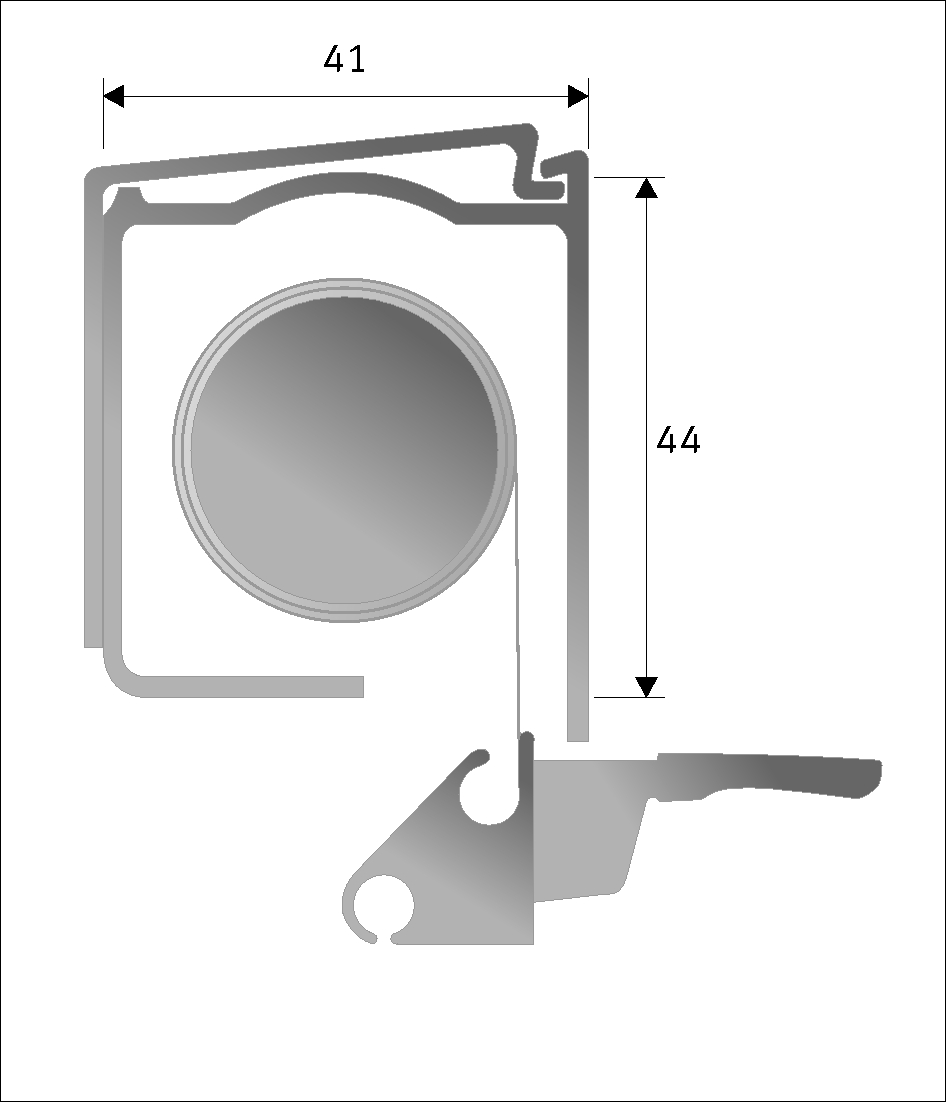

MultiStop D1 adopted for VELUX
