Classic-Line
The Classic-Line system offers solutions for many installation situations with a large selection of cassettes, end bars, side guides, and fastening options. The compact design allows systems up to 2200 mm in width and 3400 mm in height, optionally with or without a motor.
-
Also available as Lux-Line roller blinds with bottom-to-top pull direction.
-
Flexible operation:
24-Volt motor
12-Volt battery motor
Manual operation via chain drive or spring pull
| type | width | height |
|---|---|---|
| C1 | 44 mm | 43 mm |
| C2 | 57 mm | 55 mm |
| Head Box | C1 | C2 |
|---|---|---|
| max. width | 1500 mm | 2200 mm |
| max. height - chain operation | 2500 mm | 3400 mm |
| max. height - motor operation | 2100 mm | 3400 mm |
Note! Maximum Width-to-Height Ratio: 1:4
Possible Operating Options| Operating | CO | COg |
|---|---|---|
| chain | + | + |
| cord | - | - |
| Multistop | - | - |
| 12 V Wireless Motor / 24 V Wired Motor | + | + |
| 230 V Wired Motor | - | - |
Variants

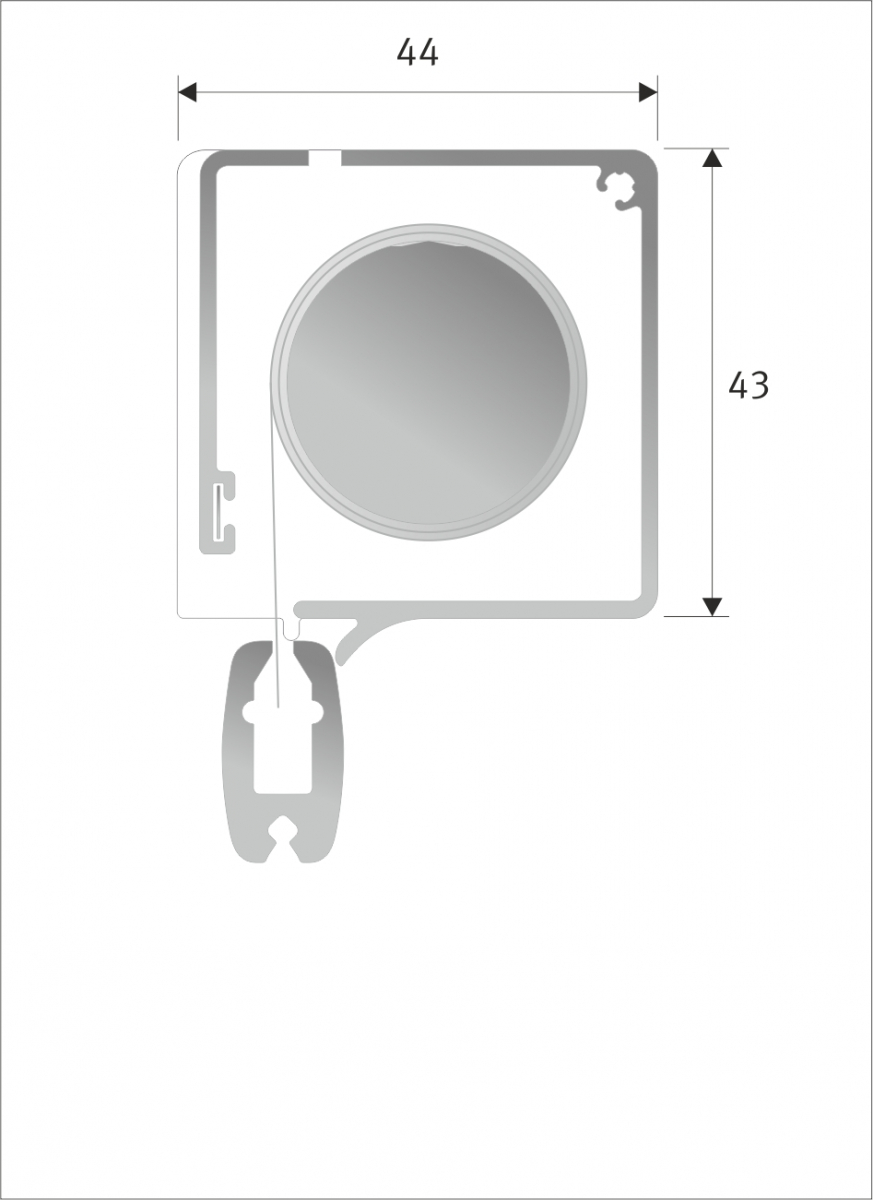

MultiTex® Classic-Line head box C1

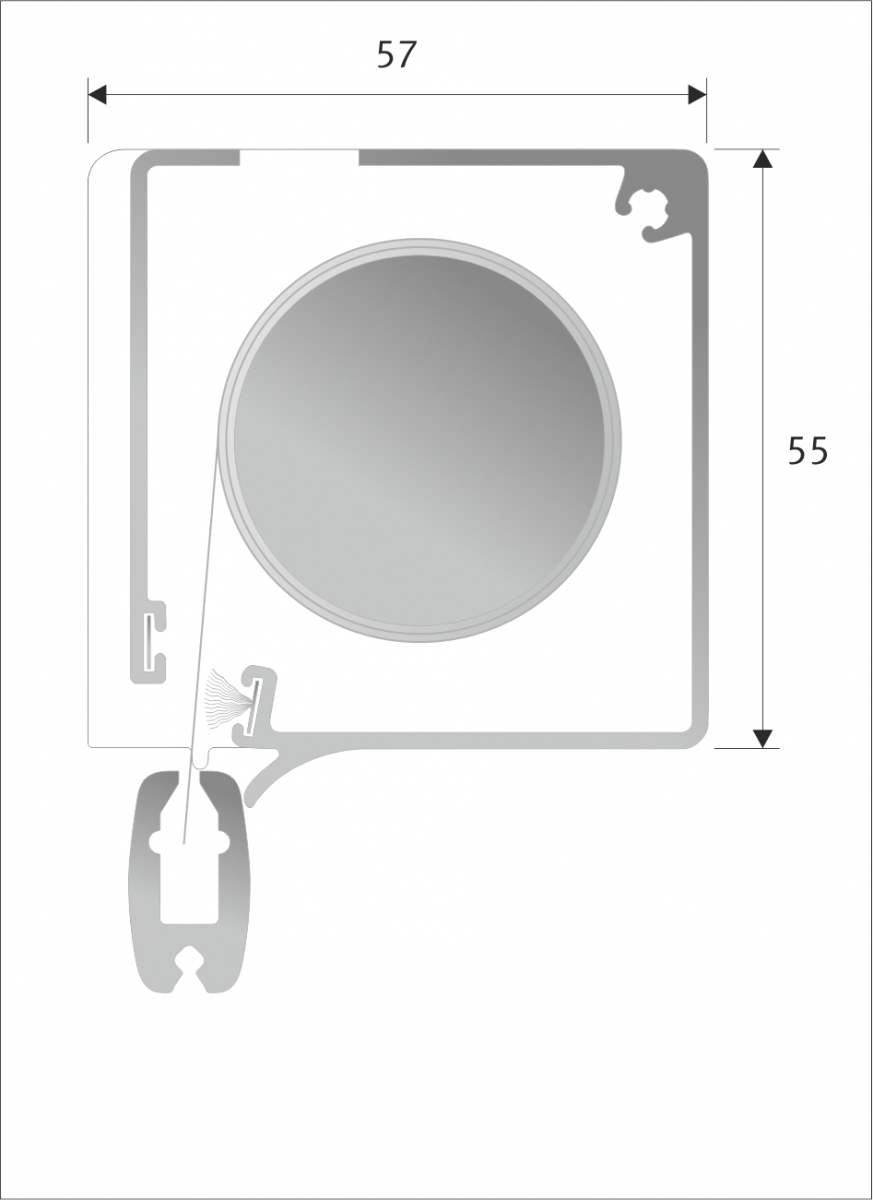

MultiTex®Classic-Line head box C2
