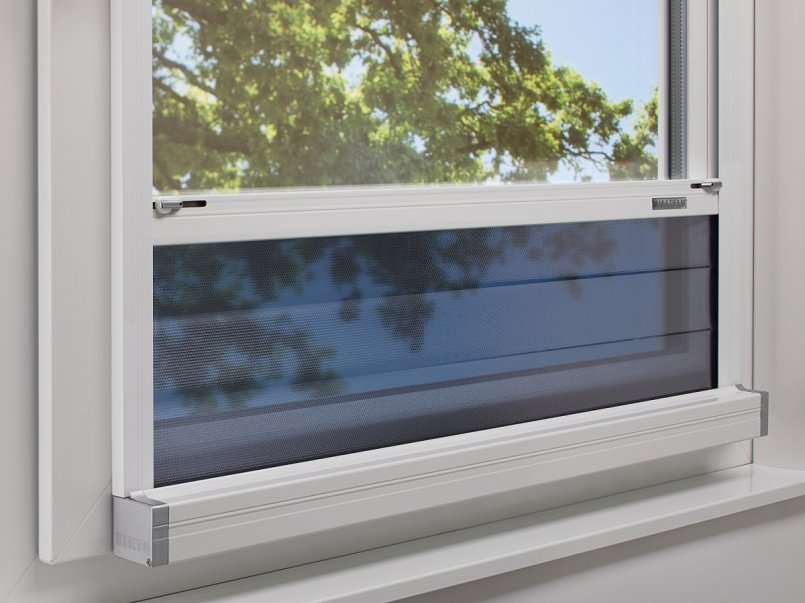

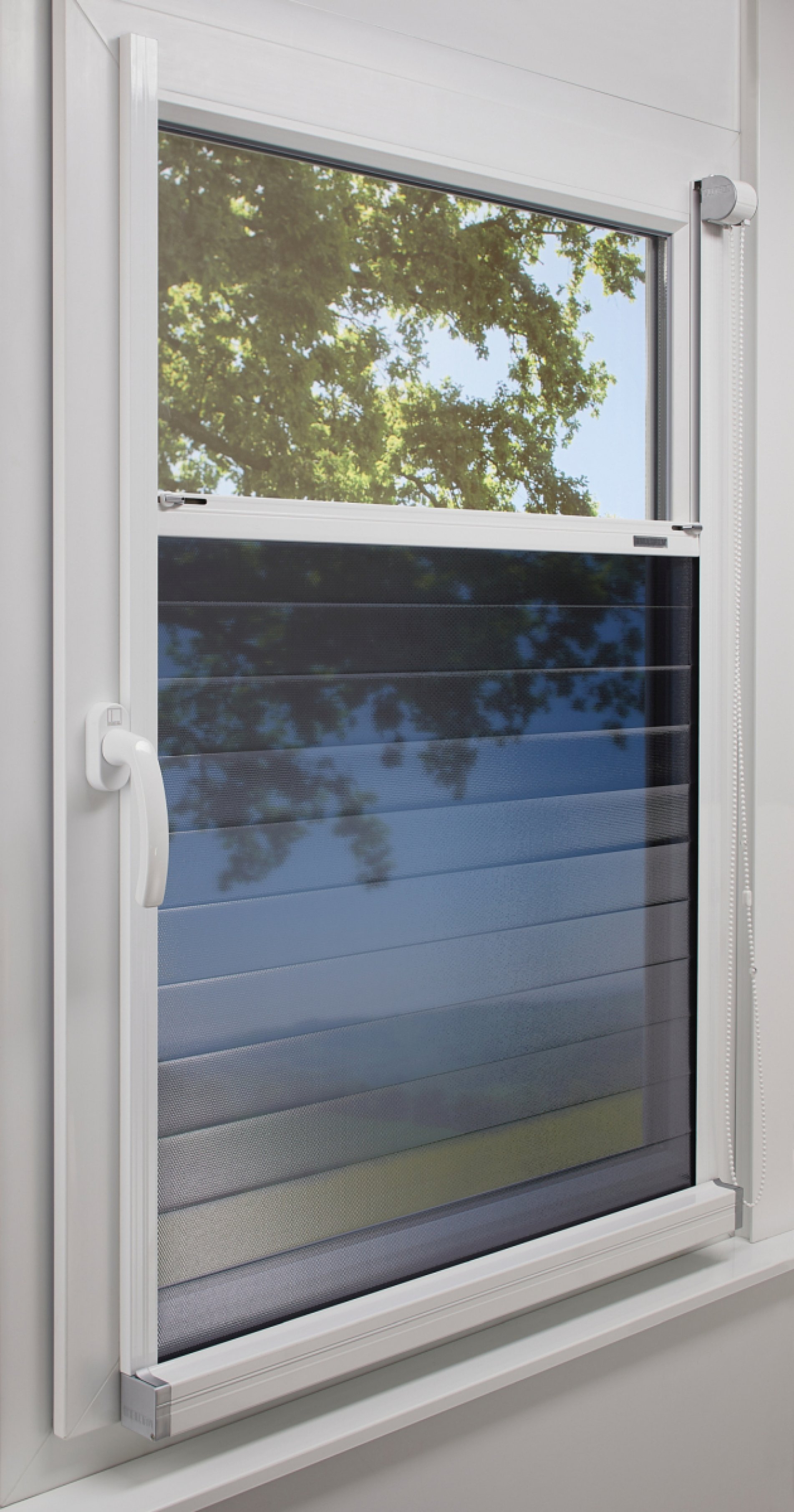

MultiFilm® Lux-Line - the roller blind from bottom to top
The MULTIFILM® Lux-Line offers roller systems for individual and architecturally demanding window shapes. With the pull direction from bottom to top, the Lux-Line is ideal for maximum glare protection in the lower window area while still allowing daylight to enter from above. Suitable for windows up to 1500 mm in width and 3400 mm in height, operated via chain or cord.
Highlights:
-
Shading for non-rectangular windows
-
Custom solutions for gable windows and inclined skylight windows
| type | width | height |
|---|---|---|
| C1 | 44mm | 43mm |
| R1 | 42mm | 46mm |
| C2 | 57 mm | 54 mm |
| Cassette | C1 | R1 | C2 |
|---|---|---|---|
| max. width | 1500mm | 1500 mm | 2200 mm |
| max. height - chain operation | 1800 mm | 1800 mm | 3400 mm |
| max. height - spring operation | 1800 mm | 1800 mm | 3400 mm |
Element height may vary according to film type and pleating
Possible Operating Options| Operating | C1 | R1 | C2 |
|---|---|---|---|
| chain | + | + | + |
| cord | + | + | + |
| Multistop | + | + | + |
| 12 V Wireless Motor / 24 V Wired Motor | - | - | - |
Variants

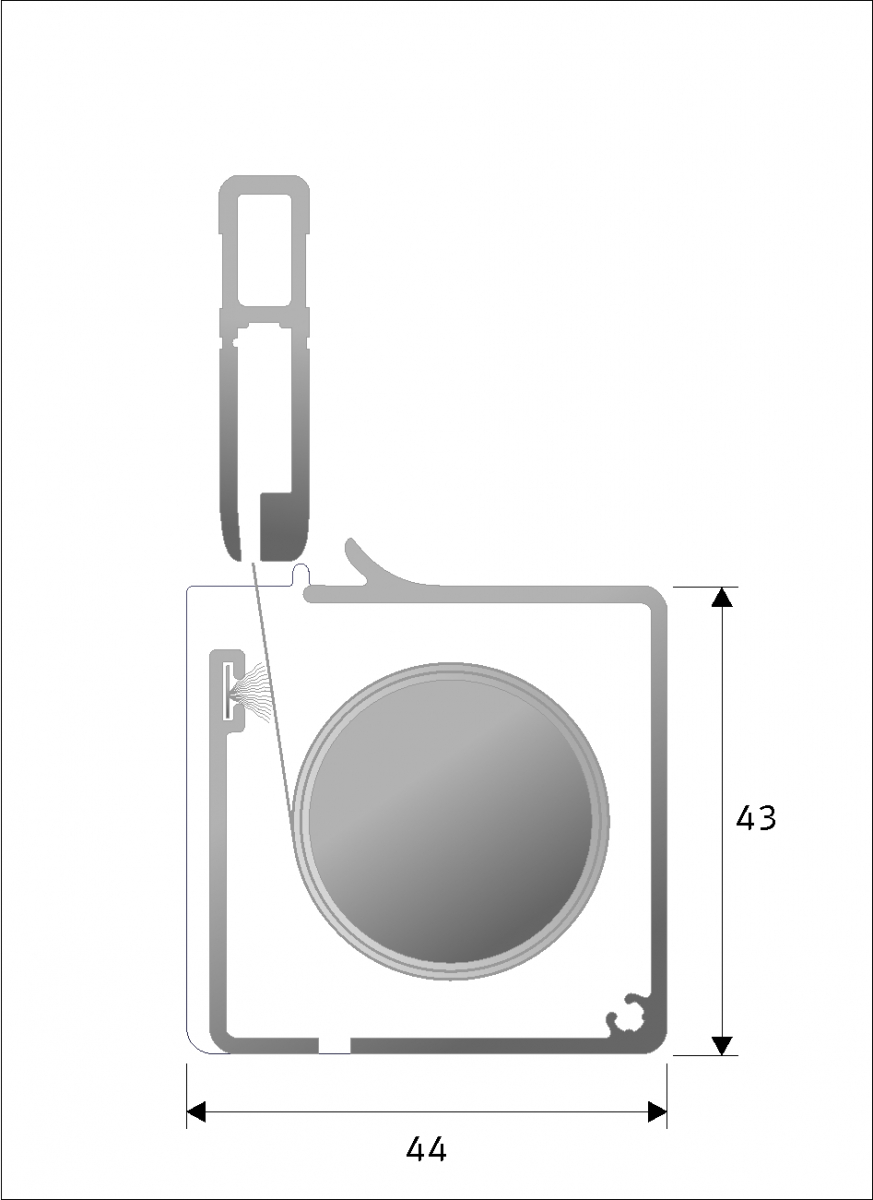

MultiFilm® Lux-Line C1

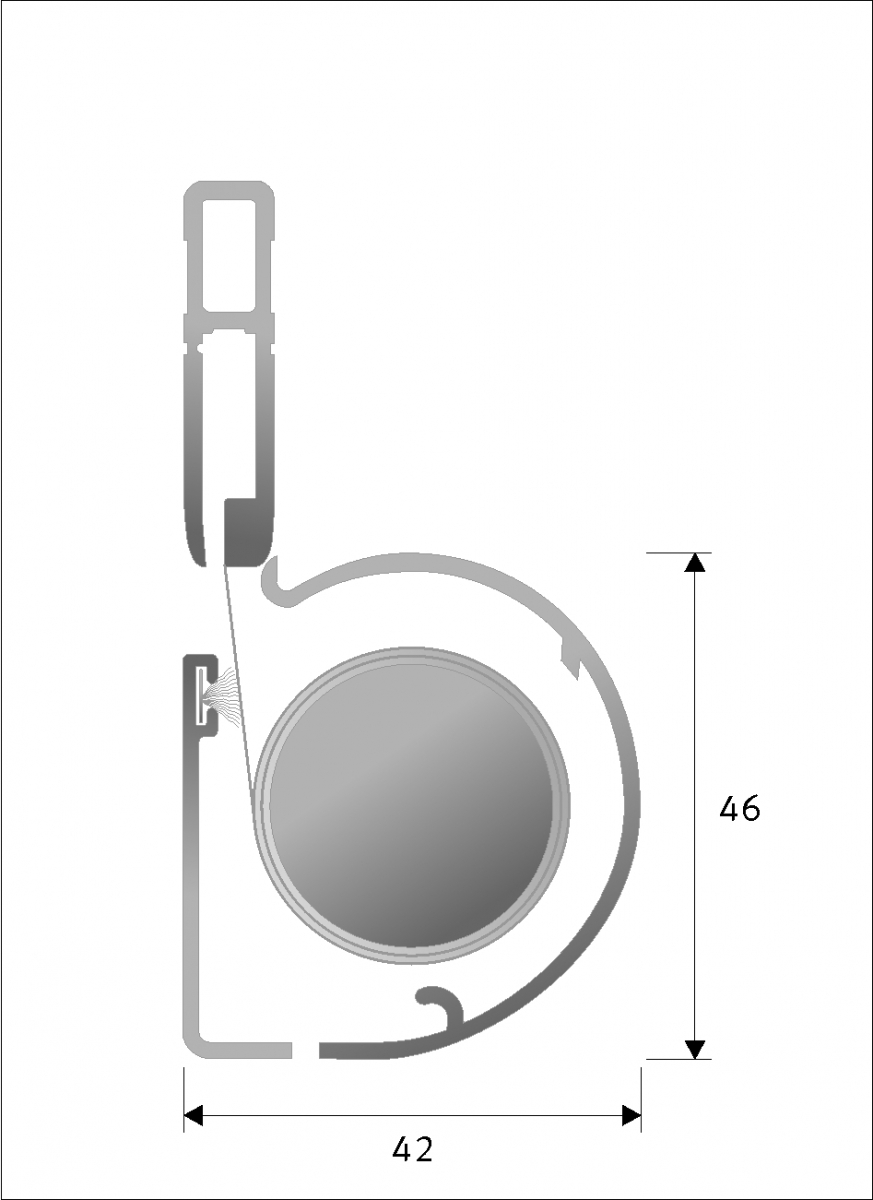

MultiFilm®Lux-Line R1

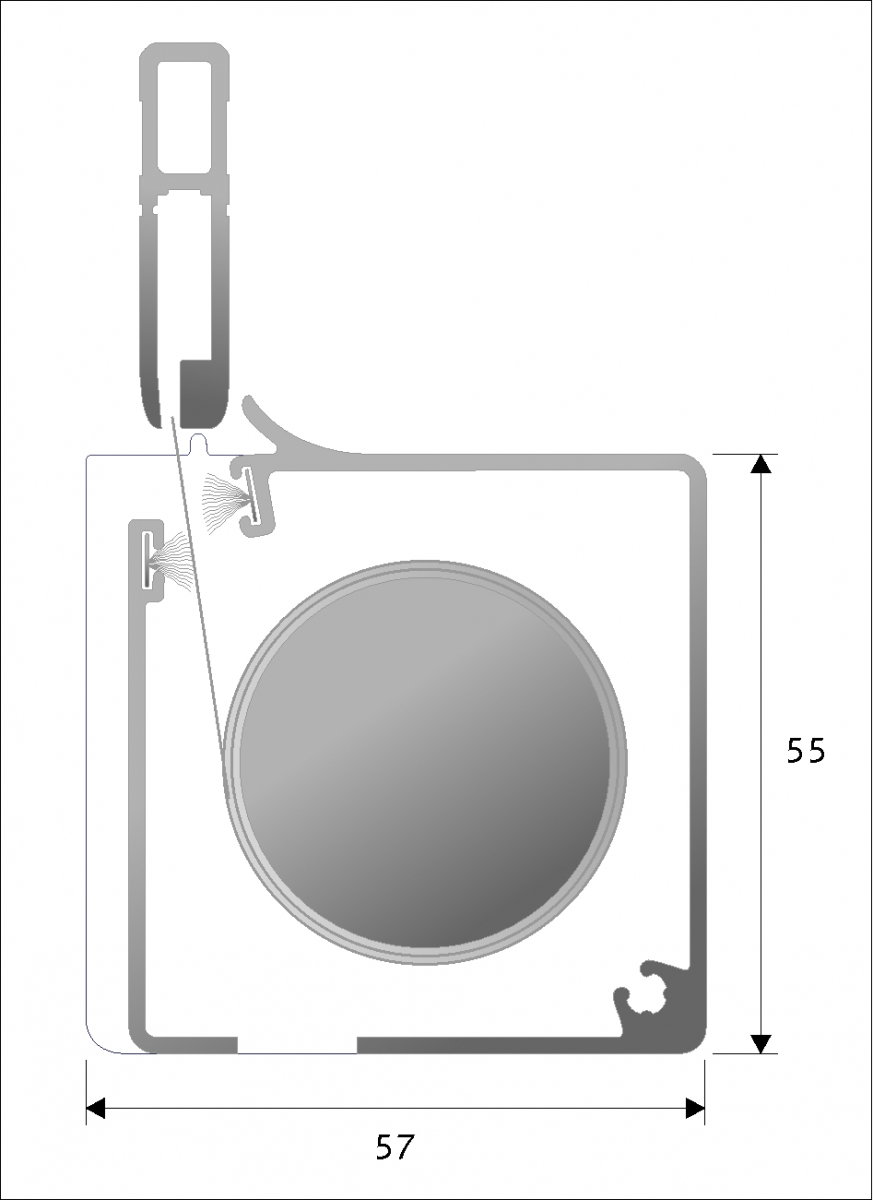

MultiFilm® Lux-Line C2
