Trend-Line

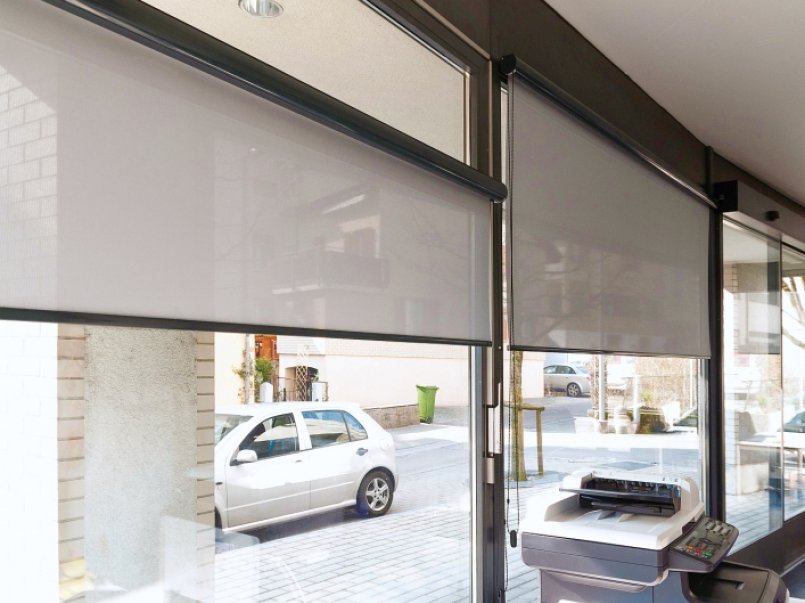

Trend-Line roller blinds combine decorative design with functionality and offer flexible options such as closed cassettes or open support rails, cable guides, or freely hanging end bars.
With a maximum size of 2200 mm in width and 3400 mm in height, the system is suitable for private customers, businesses, and administrative buildings.
Varied drives:
-
24-Volt technology, integrable into 230-Volt networks
-
Battery motors: Ideal for retrofitting, with charging intervals – depending on usage – every two to three months
-
Manual operation: Chain drive
| type | width | height |
|---|---|---|
| R3 | 64 mm | 66 mm |
| Only Carrier Rail (without Cover) | 56 mm | 66 mm |
| Head Box | R3 | Only Carrier Rail (without Cover) |
|---|---|---|
| max. width | 2200 mm | 2200 mm |
| max. height - chain operation | 3400 mm | 3400 mm |
| max. height - motor operation | 3400 mm | 3400 mm |
Note! Maximum Width-to-Height Ratio: 1:4
Possible Operating Options| Operating | R3 | Only Carrier Rail (without Cover) |
|---|---|---|
| chain | + | + |
| cord | - | - |
| Multistop | - | - |
| 12 V Wireless Motor / 24 V Wired Motor | + | + |
| 230 V Wired Motor | - | - |
Variants

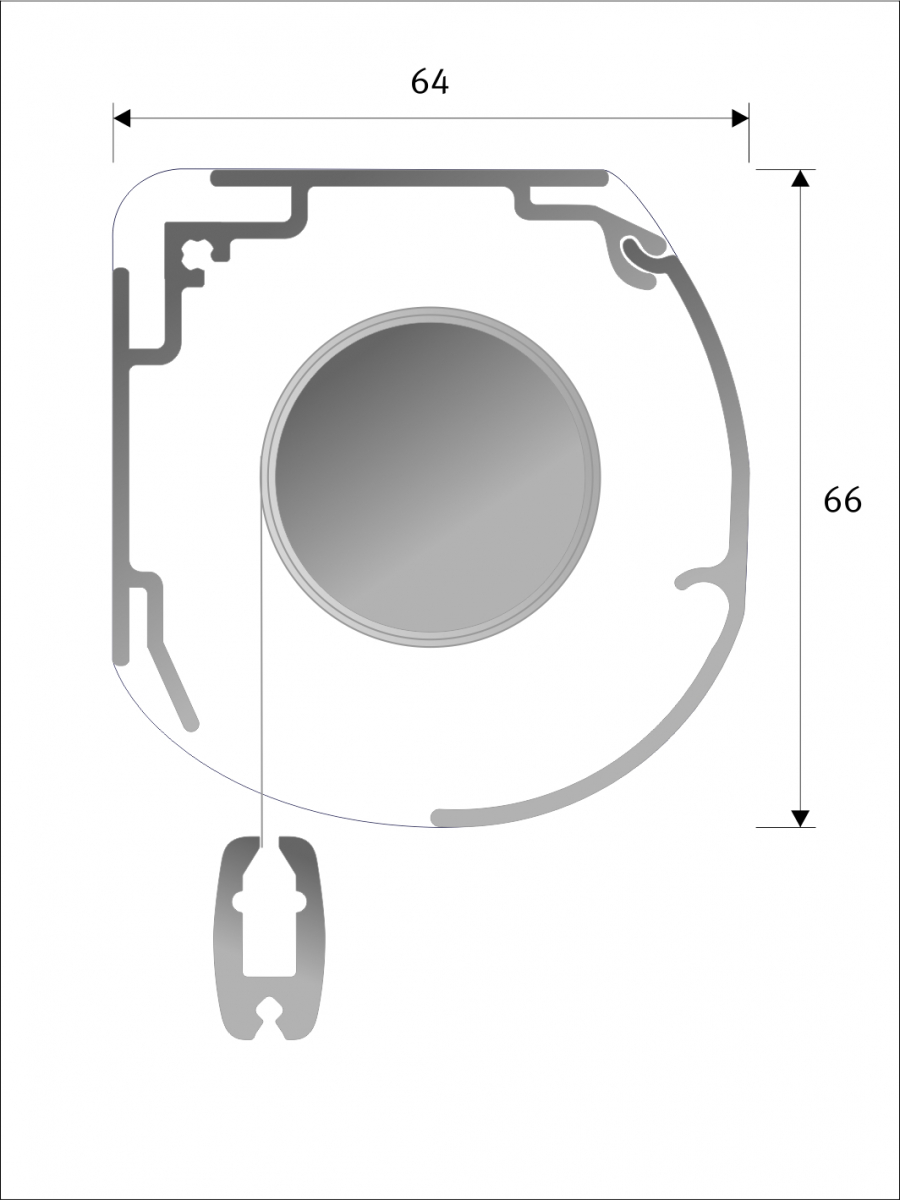

MultiTex® Head box Trend-Line R3

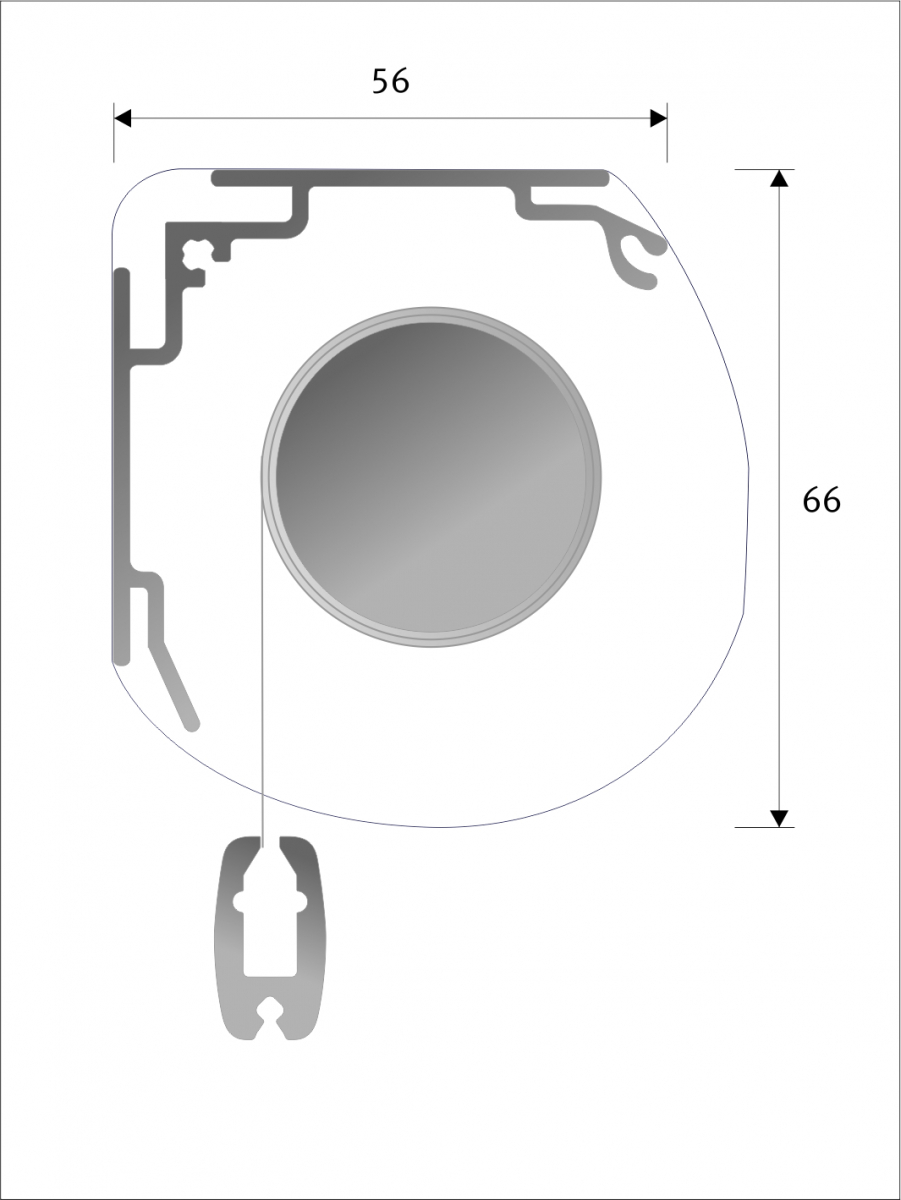

MultiTex® Trend-Line without head box with support rail
