MultiFilm® Trend-Line
The Trend-Line roller blinds combine decorative design with functionality, offering flexible options such as closed cassettes or open support rails, cord guides, or free-hanging bottom rails.
With a maximum size of 2200 mm in width and 3400 mm in height, the system is suitable for private customers, businesses, and administrations.
Versatile drives:
-
24-volt technology, integrable into 230-volt networks
-
Battery-powered motors: Ideal for retrofitting, with a charging interval—depending on usage—every two to three month
-
Manual operation: Chain drive, spring mechanism, or MultiStop bottom rail
| type | width | height |
|---|---|---|
| R3 | 64 mm | 66 mm |
| Only Carrier Rail (without Cover) | 56 mm | 66 mm |
| Cassette | R3 | Only Carrier Rail (without Cover) |
|---|---|---|
| max. width | 2200 mm | 2200 mm |
| max. height - chain operation | 3400 mm | 3400 mm |
| max. height - motor operation | 3400 mm | 3400 mm |
Element height may vary according to film type and pleating
Possible Operating Options| Operating | R3 | Only Carrier Rail |
|---|---|---|
| chain | + | + |
| cord | - | - |
| Multistop | - | - |
| 12 V Wireless Motor / 24 V Wired Motor | + | + |
Variants

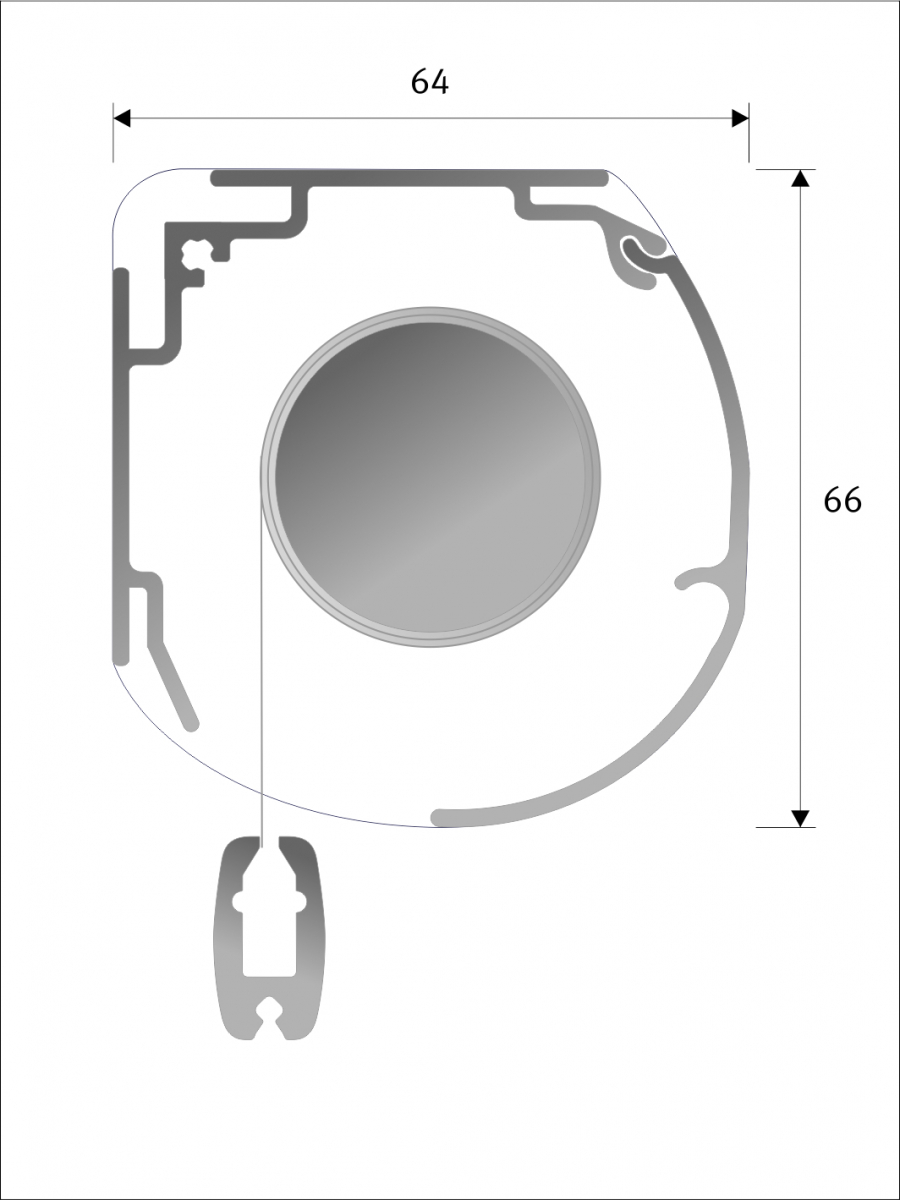

MultiFilm® Trend-Line head box R3

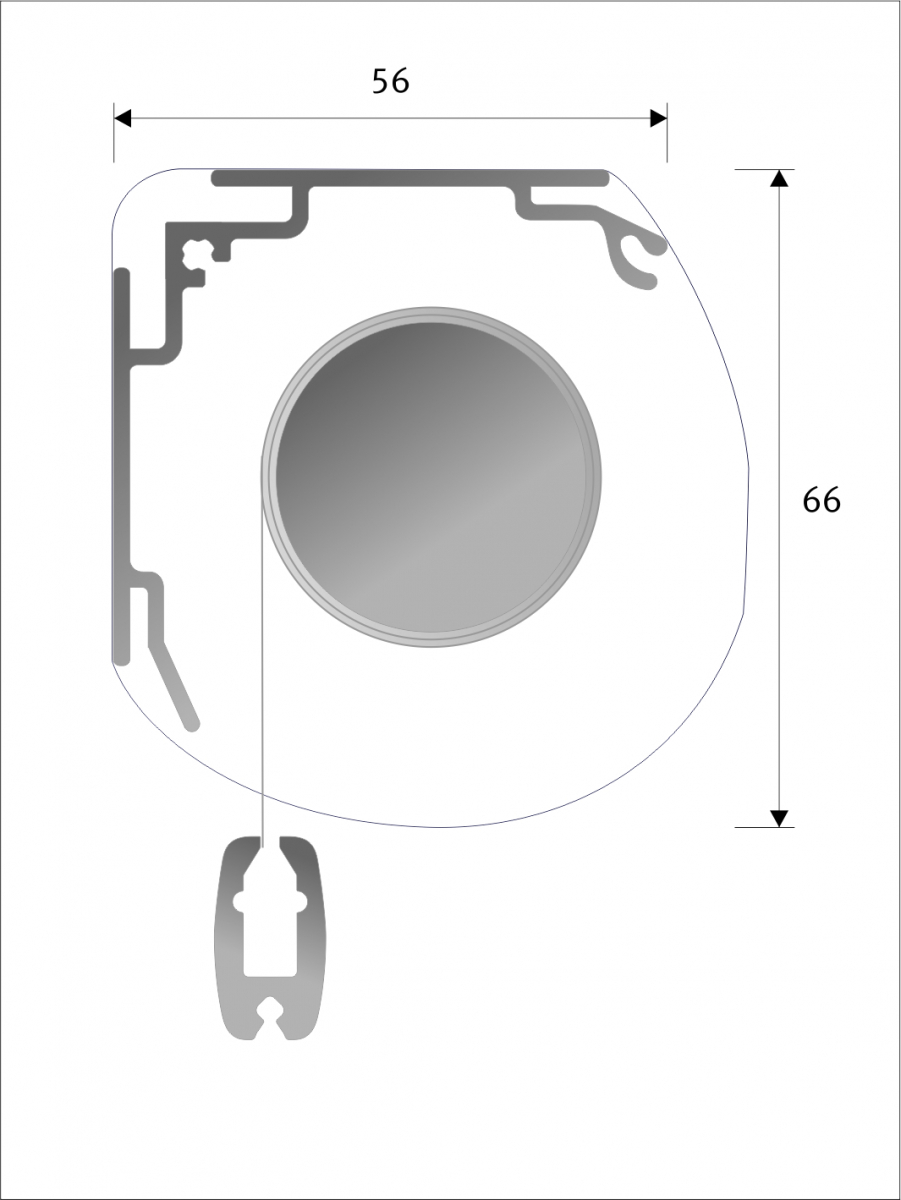

MultiFilm® Trend-Line without headbox with support rail
