MultiFilm®-Film
High-Performance Shading Systems
- Effective heat protection
- Comfortable indoor climate
- Natural daylight illumination
- Optimal glare control
- Unobstructed outside view
- Reduced cooling and heating energy consumption
- UV protection - blocks up to 99% of UV radiation
The unique film material with a triple effect
-

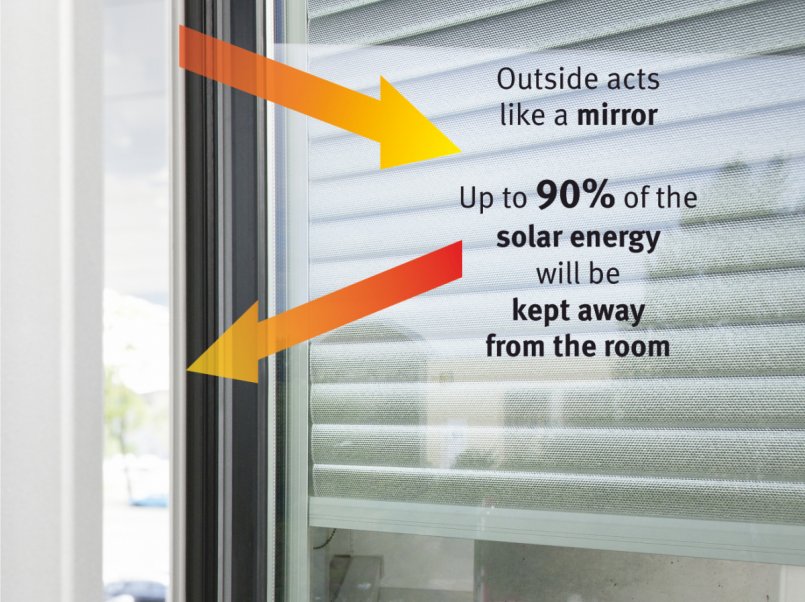

The mirror-like exterior reflects solar energy and ensures an optimal indoor climate.
-

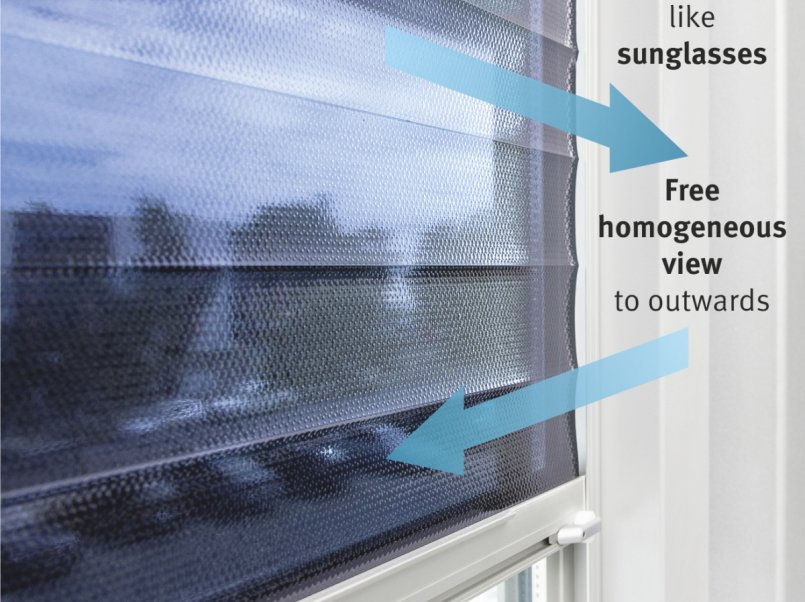

The transparent roller film maintains a free and unobstructed view outside.
-
The film diffuses incoming daylight like sunglasses and provides reliable glare protection

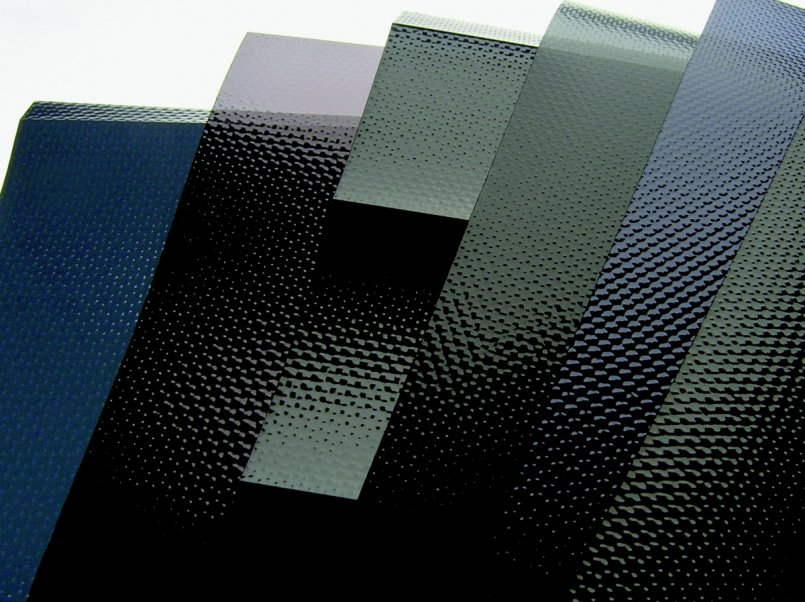

MultiFilm® Film Range
| Film | Colour outside/ inside |
Visible trans-mittance TVL* |
Solar reflectance* |
g-value* | Suitability in respect of | |||
|---|---|---|---|---|---|---|---|---|
| heat protection | glare protection | view to the outside | ||||||
 | SiAt012N.SiAt013N | silver/anthracite | 1 % | 81% | 5% | ++ | ++ | ++ |
 | SiAt022NM.SiAt023NM | silver/anthracite | 2% | 78% | 7% | ++ | ++ | ++ |
 | SiAt032FR-B1 | silver/anthracite | 3% | 60 | 25 | + | + | ++ |
 | SiAt072N | silver/anthracite | 7% | 61% | 17% | + | + | ++ |
 | SiBc022.SiBc023 | silver/bronce | 2% | 75% | 8% | ++ | ++ | ++ |
 | SiBc092 | silver/bronce | 9% | 59% | 19% | + | 0 | ++ |
 | SiSi022 | silver/silver | 2% | 79% | 9% | ++ | 0 | + |
 | SiSi183 | silver/silver | 16% | 67% | 18% | + | - | ++ |
 | GyGy022N | grey/grey | 3% | 23% | 27% | - | ++ | ++ |
 | GyGy073 | grey/grey | 7% | 17% | 40% | - | + | ++ |
 | SiBk002 | silver/black | 0,01% | 84% | 3% | ++ | ++ | - |
 | SiWt002 | Silver/white | 0,10% | 84% | 5% | ++ | ++ | - |
All technical data are subject to manufacturing tolerances.
++ highly suitable | + suitable | o conditionally suitable | – not suitable
-
MultiFilm® films are classified as flame-retardant, non-dripping, and low-smoke according to ÖNORM A 3800 Part 1.
-
The SiAt032FR-B1 film is classified as Class B1 (flame-retardant) according to DIN 4102 Part 1.
-
All MultiFilm® films provide excellent UV protection. The UV transmission of the films corresponds to their light transmission.
Product Features
-

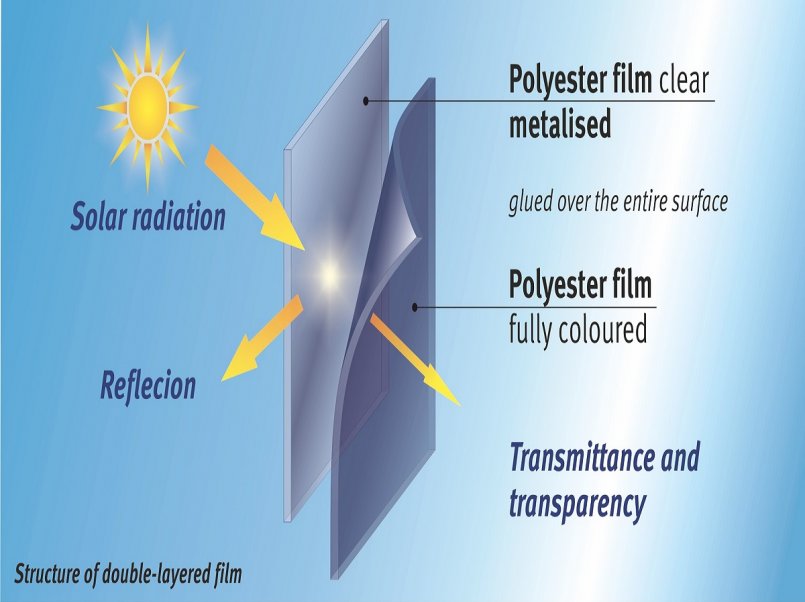

Two- or three-layer polyester film
-
Highly reflective due to an internal aluminum coating
-
Ultra-thin: thickness of 0.1 to 0.2 mm
-
Printable with MultiDecor® for advertising purposes
-
Light transmission: 0 % to approx. 10 %
-
Solar reflection: up to 84 %
-
UV protection (UV transmission corresponds to light transmission)
Film Enhancement

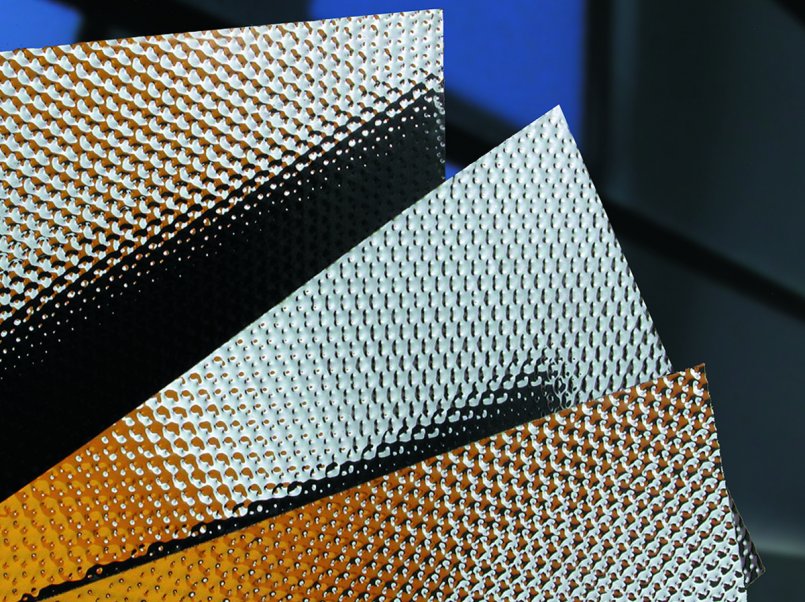

Embossed surface
-
Textured structure for diffused light scattering and good visibility
-
High resistance to scratches and mechanical stress
-
Increased surface stability
-
Special process for stabilizing the film
-

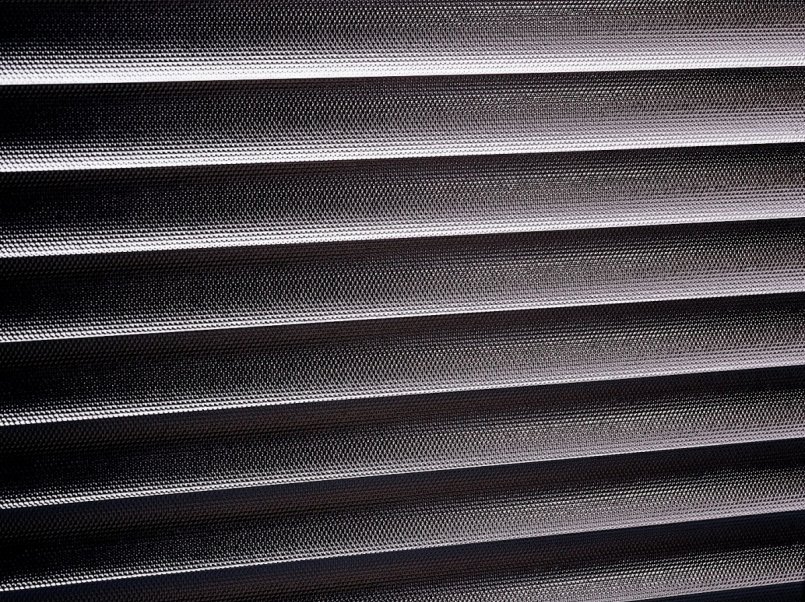

Soft, curved pleat design
-
Harmonious interior and exterior appearance
-
Pleat division freely selectable between 30 and 100 mm
-
Pleats available up to 3 m wide for large-format roller systems
-
Special ultrasonic welding process
-
High-strength bonding of individual film pieces up to 3 × 8 m
-
Enables shading of large glazed surfaces with a single system
-
Discreet, fully durable weld seams
-
For adjacent systems: seams aligned at the same height
With MULTIFILM® films, you get advanced solutions for heat reduction, glare-free visibility, and energy savings – ideal for large glazed areas and demanding applications.
