Flexi-Line Medium

The Flexi-Line Medium system offers versatile solutions for demanding designs with high-quality fabric panels. In addition to the C4 and R4 cassettes, it is also possible to work completely without covers – ideal for suspended ceilings, where the components are integrated in a protected and invisible manner. Depending on fabric thickness and length, widths of up to 2800 mm can be realized, with the width-height ratio being a maximum of 1:4.



Installation options:

  • without cover:

With open carriers – optionally with or without a carrier rail (carrier rail recommended)

Rope guidance possible or decorative free-hanging with heavy bottom bar.

  • with cover:

Selection between square C4 cover or round R4 cover

Side guides or rope guides are possible when used with cover



  • Compatible with 12-Volt battery, 24-Volt, or 220-Volt motors

  • Aluminium parts available in RAL colours

  • Plastic parts available in gray, white, and upon request in black



Head Box Size
type widthheight
C464 mm66 mm
R456 mm66
Carrier Rail68,5 mm55 mm
Carrier63,5 mm55 mm
Maximum Dimensions
Head BoxC4/ R4Carrier RailCarrier
max. width2800 mm2800 mm2800 mm
max. height - chain operation4000 mm4000 mm4000 mm
max. height - motor operation4000 mm4000 mm4000 mm
Note! Maximum Width-to-Height Ratio: 1:4
Possible Operating Options
OperatingC4/ R4Carrier RailCarrier
chain+++
cord---
Multistop---
12 V Wireless Motor / 24 V Wired Motor+++
230 V Wired Motor+++
Variants

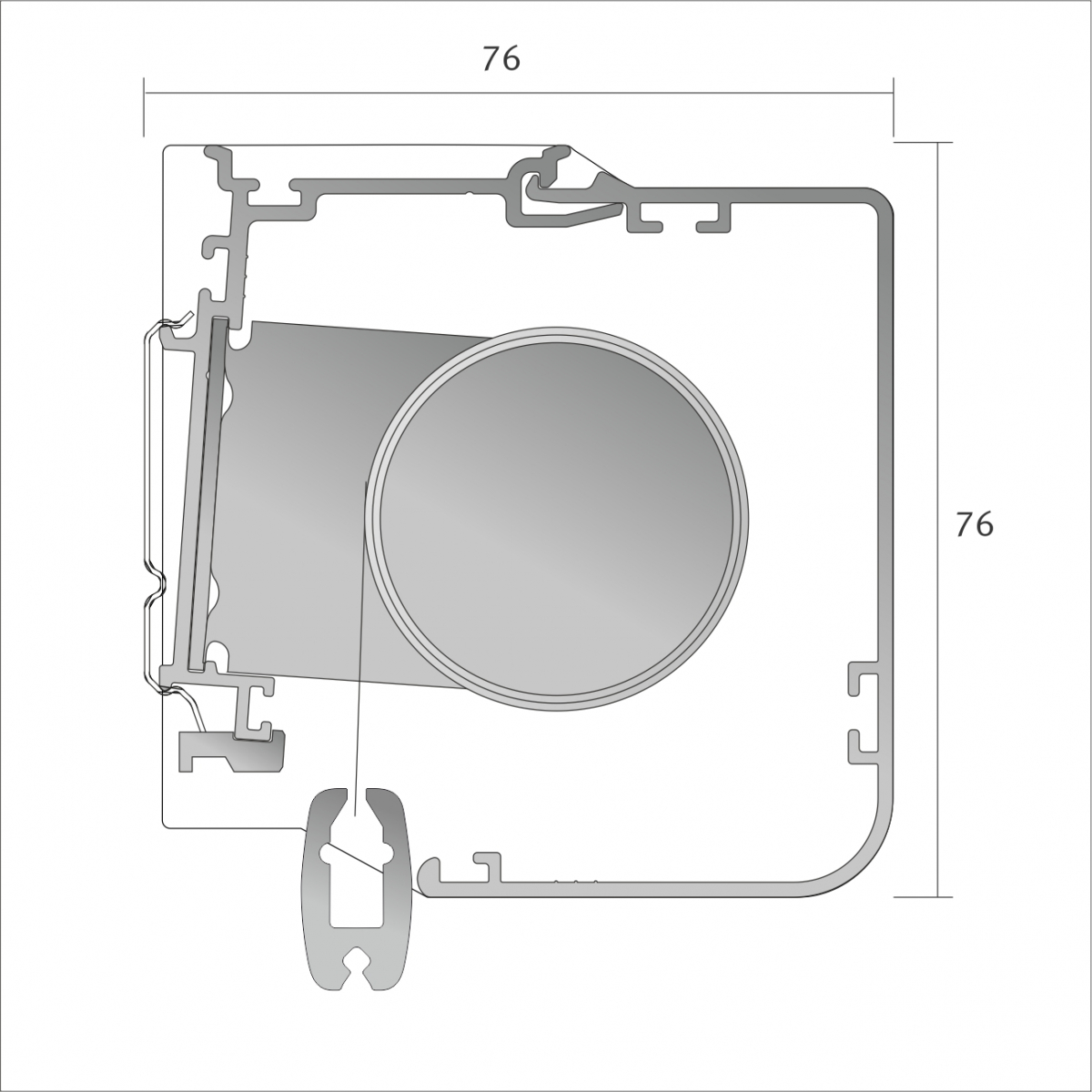

MultiTex® Flexi-Line Medium C4

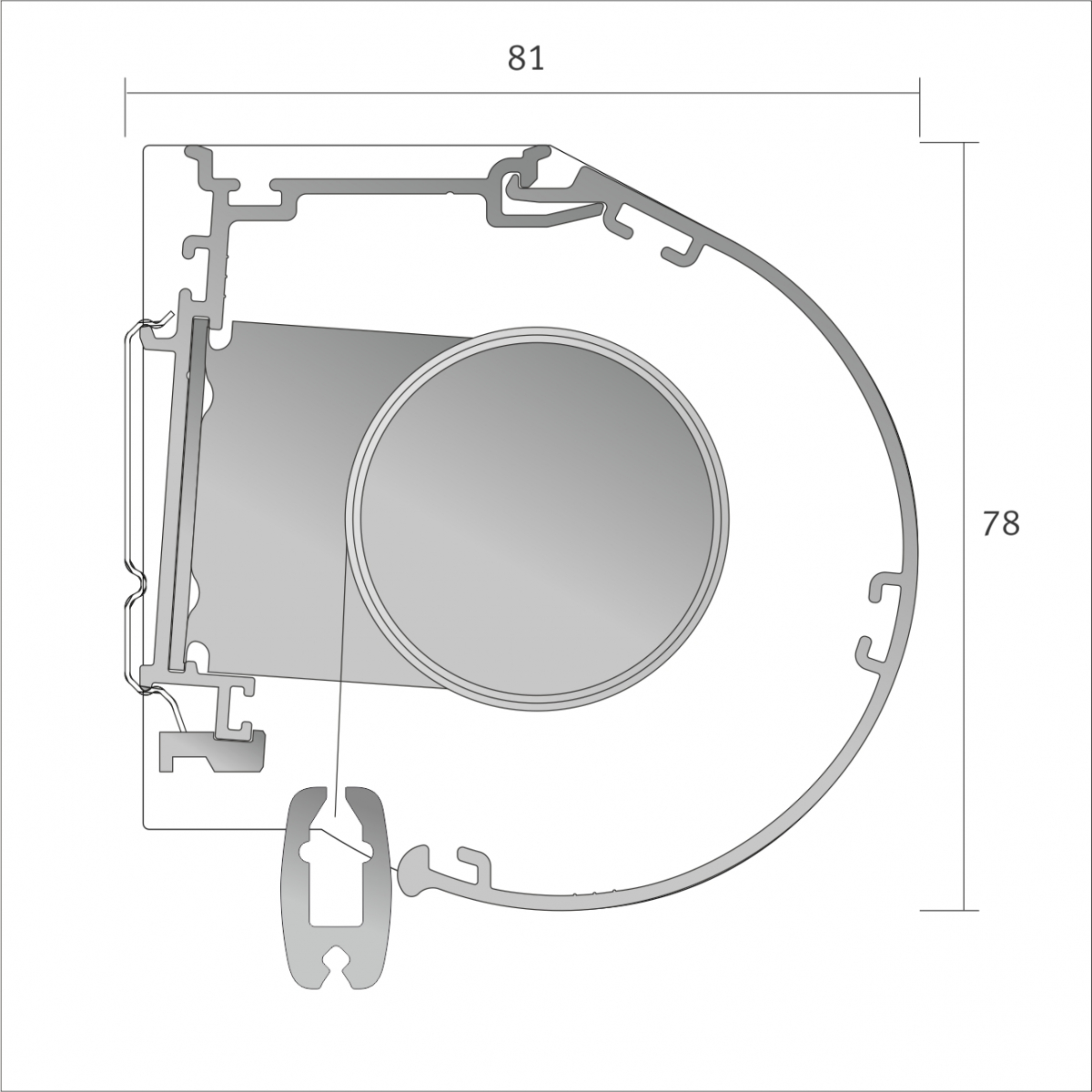

MultiTex® Flexi-Line Medium R4

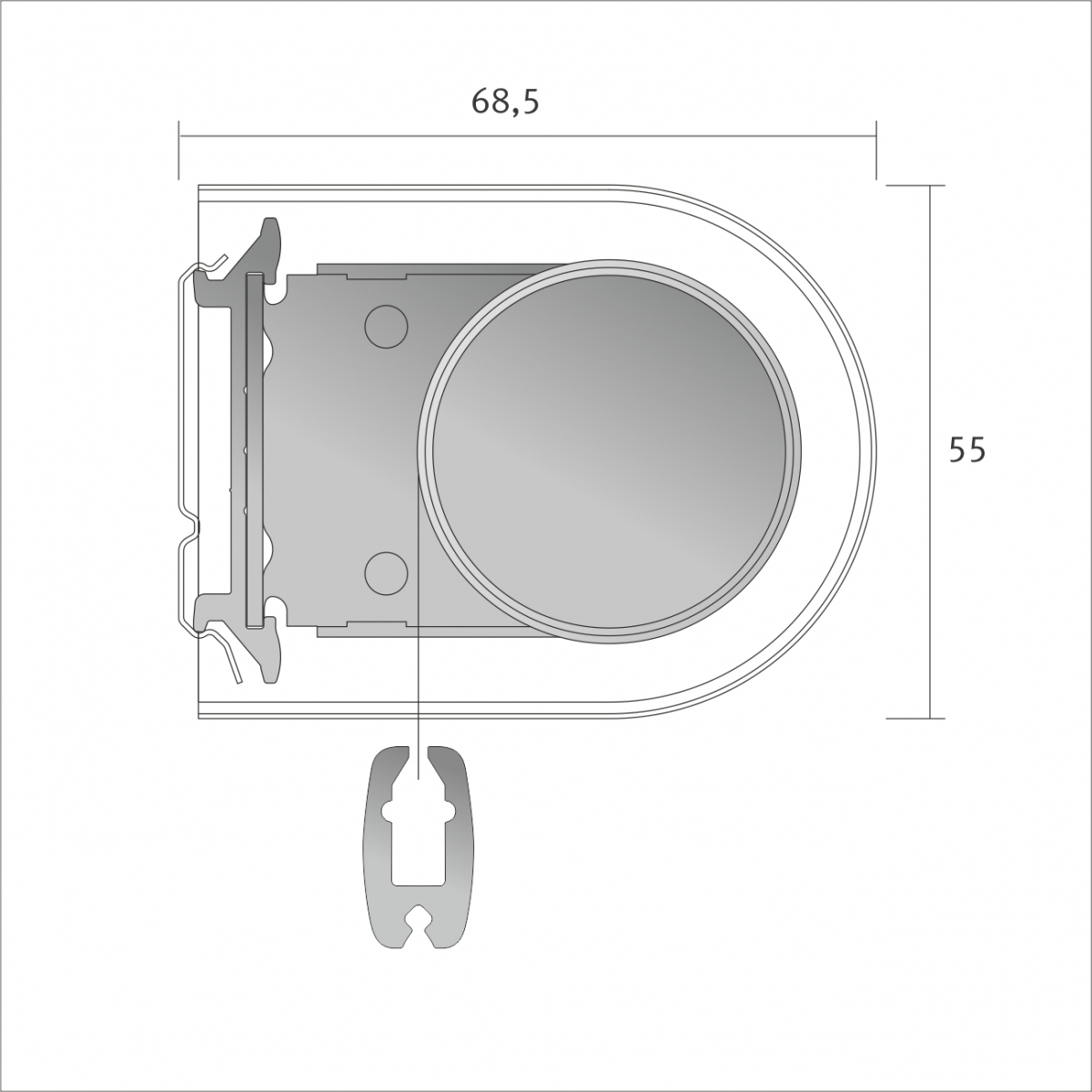

MultiTex® Flexi-Line Medium Carrier Rail

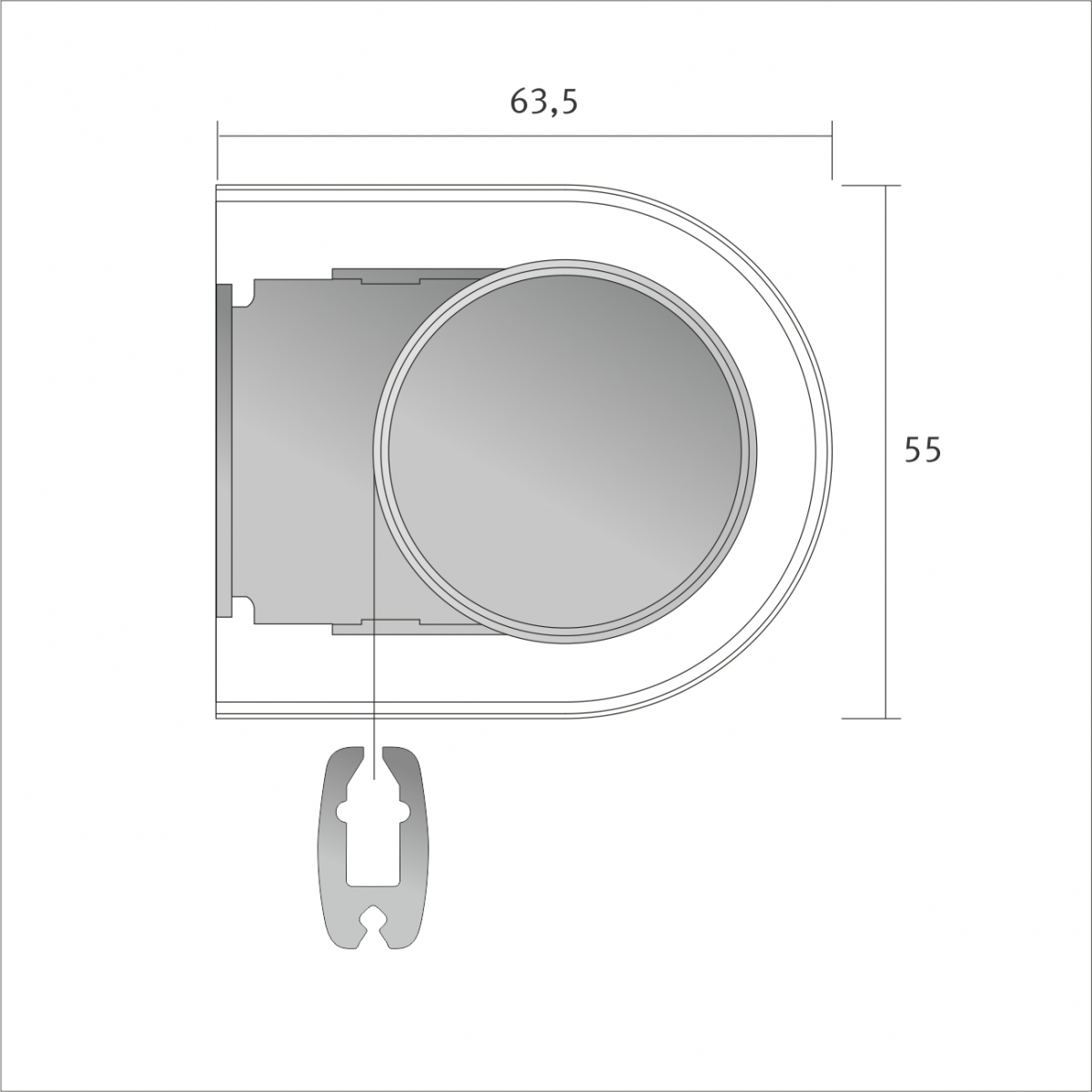

MultiTex® Flexi-Line Medium Carrier
