Opposite pull blinds for horizontal and inclined glazing

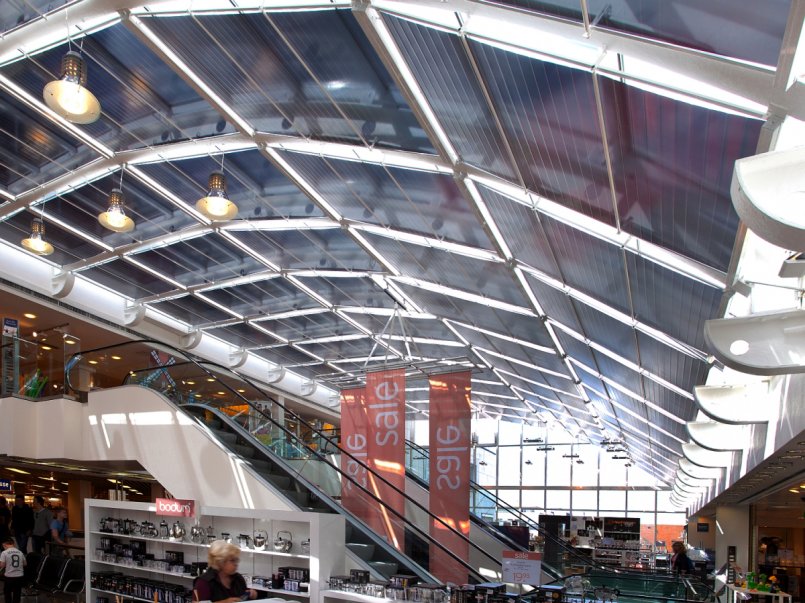

MULTIFILM offers solutions for window areas in atriums, roof windows, and dome lights with glazing angles of more than 25 degrees. The counter-tension system is implemented using either two opposite-facing or two sequentially arranged cassettes. One cassette contains the fabric, and the other houses the motor.
Thanks to this "counter-tension" (GGZ) technology, the fabric remains taut at all times – making both sloped and horizontal installations easily achievable.
• Custom solutions for non-rectangular windows and glass surfaces are available.
• Depending on the configuration, maximum widths of 2500 mm and maximum heights of 4000 mm are possible.
• When using the F1 cassette, 230-volt drives are required.
| type | width | height |
|---|---|---|
| C2 | 57 mm | 54 mm |
| F1 | 75 mm | 75 mm |
| Head Box | C2 | F1 |
|---|---|---|
| max. width | 1800 mm | 3000mm |
| max. height - motor operation | 2500 mm | 4000 mm |
| max. height - motor operation | 3400 mm | 3400 mm |
Depending on the width-to-height ratio
Possible Operating Options| Operating | C2 | F1 |
|---|---|---|
| 12 V Wireless Motor / 24 V Wired Motor | + | - |
| 230 V Wired Motor | - | + |
Variants

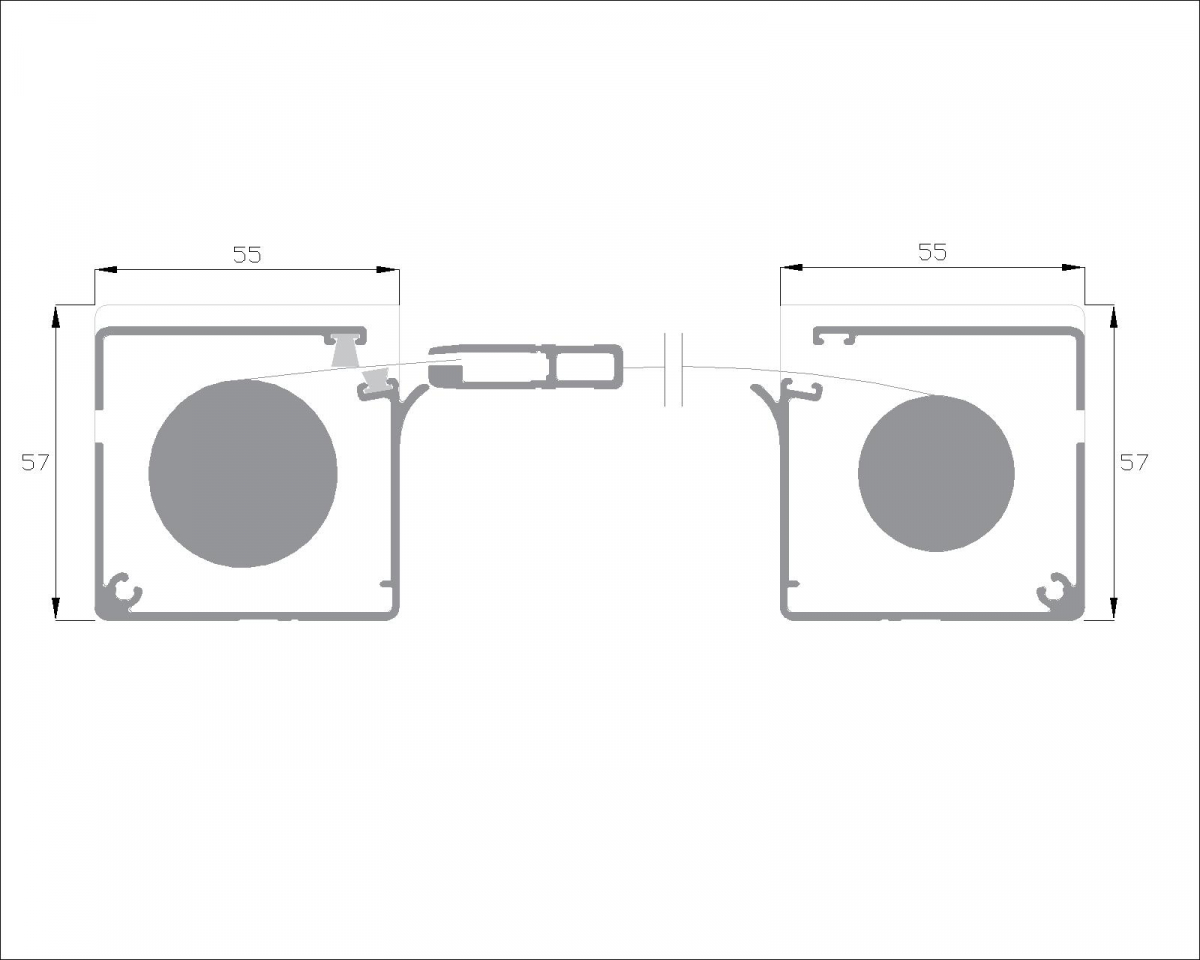

Opposite pull blind (GGZ) C2 head boxes opposite

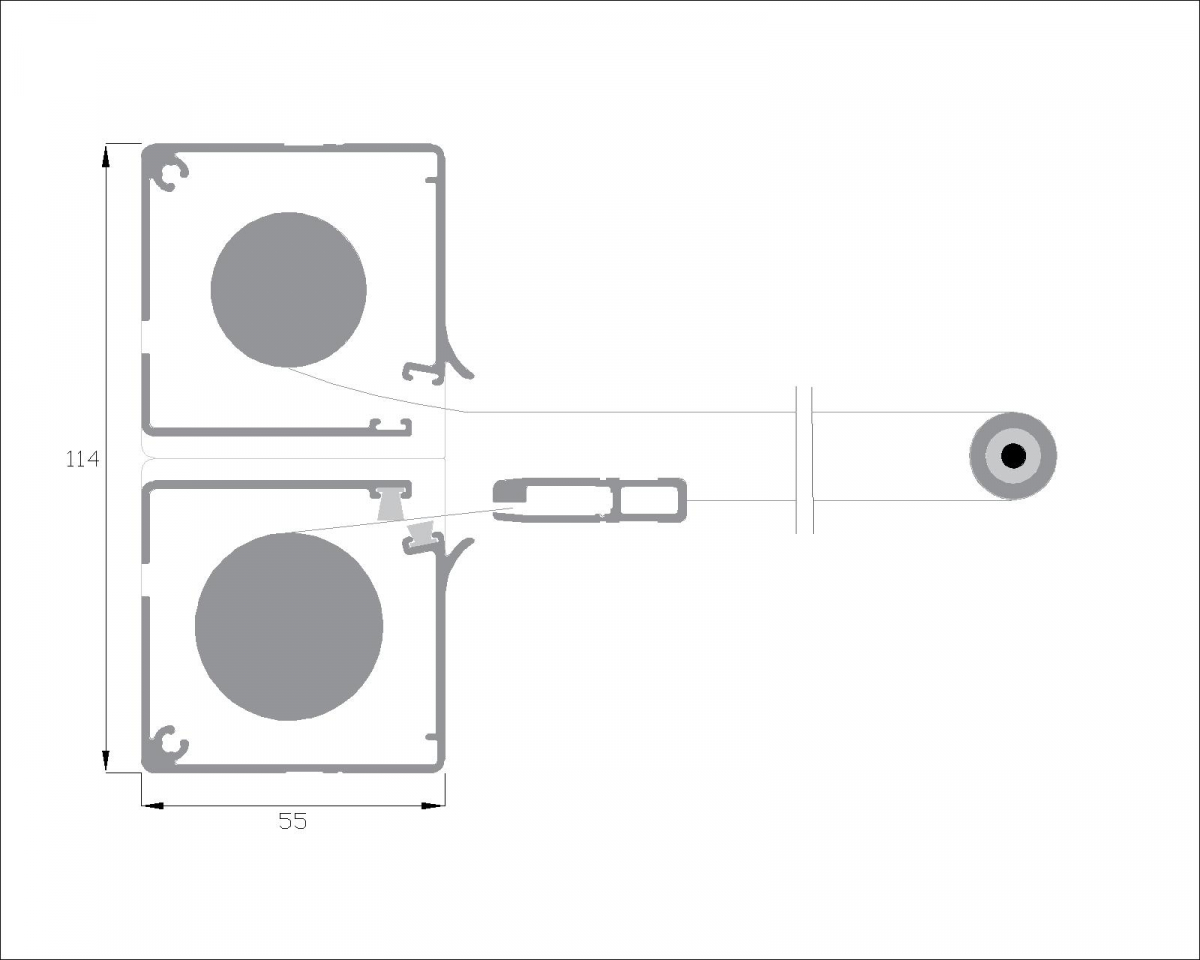

Opposite pull blind (GGZ) C2 head boxed behind each other

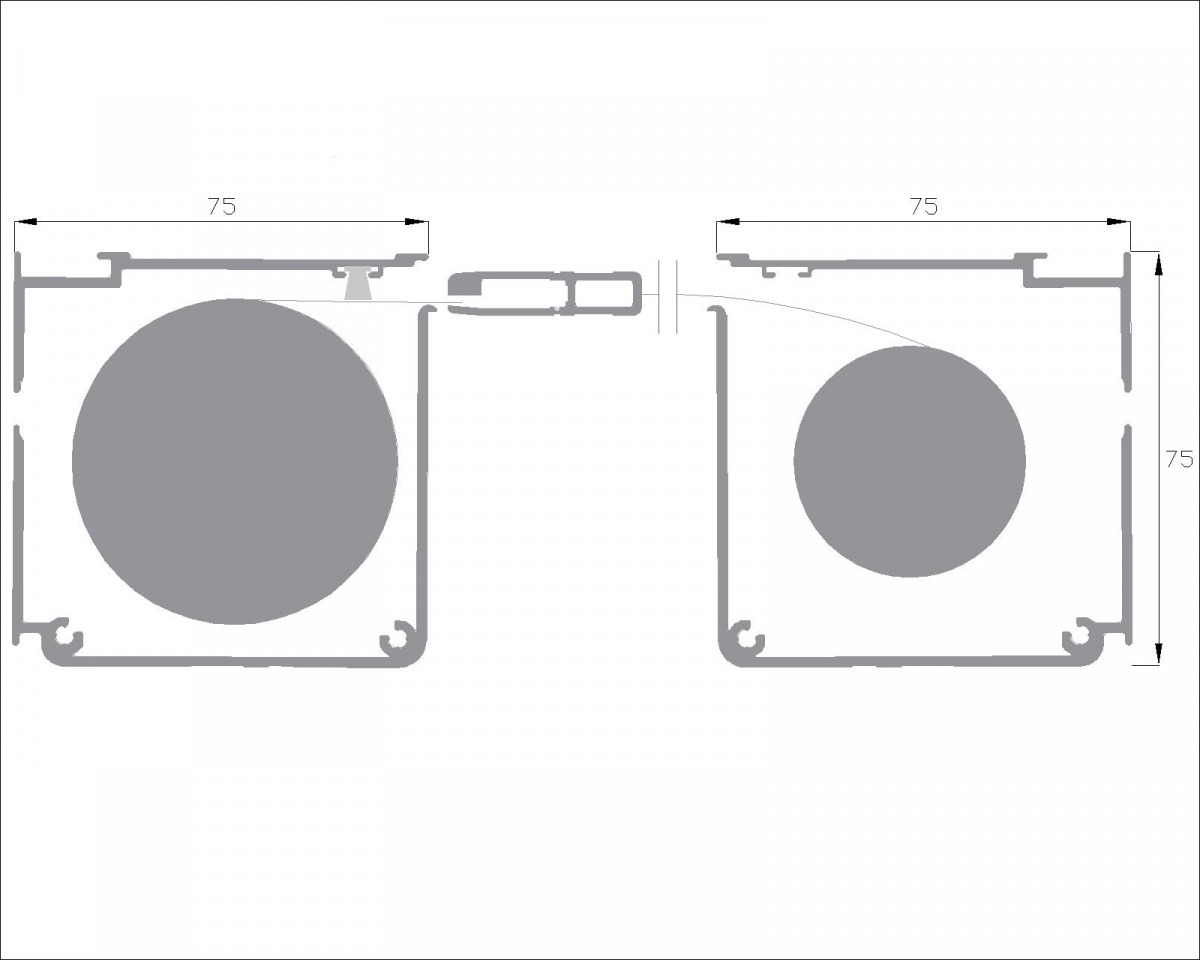

Opposite pull blinds (GGZ) F1 head boxes opposite

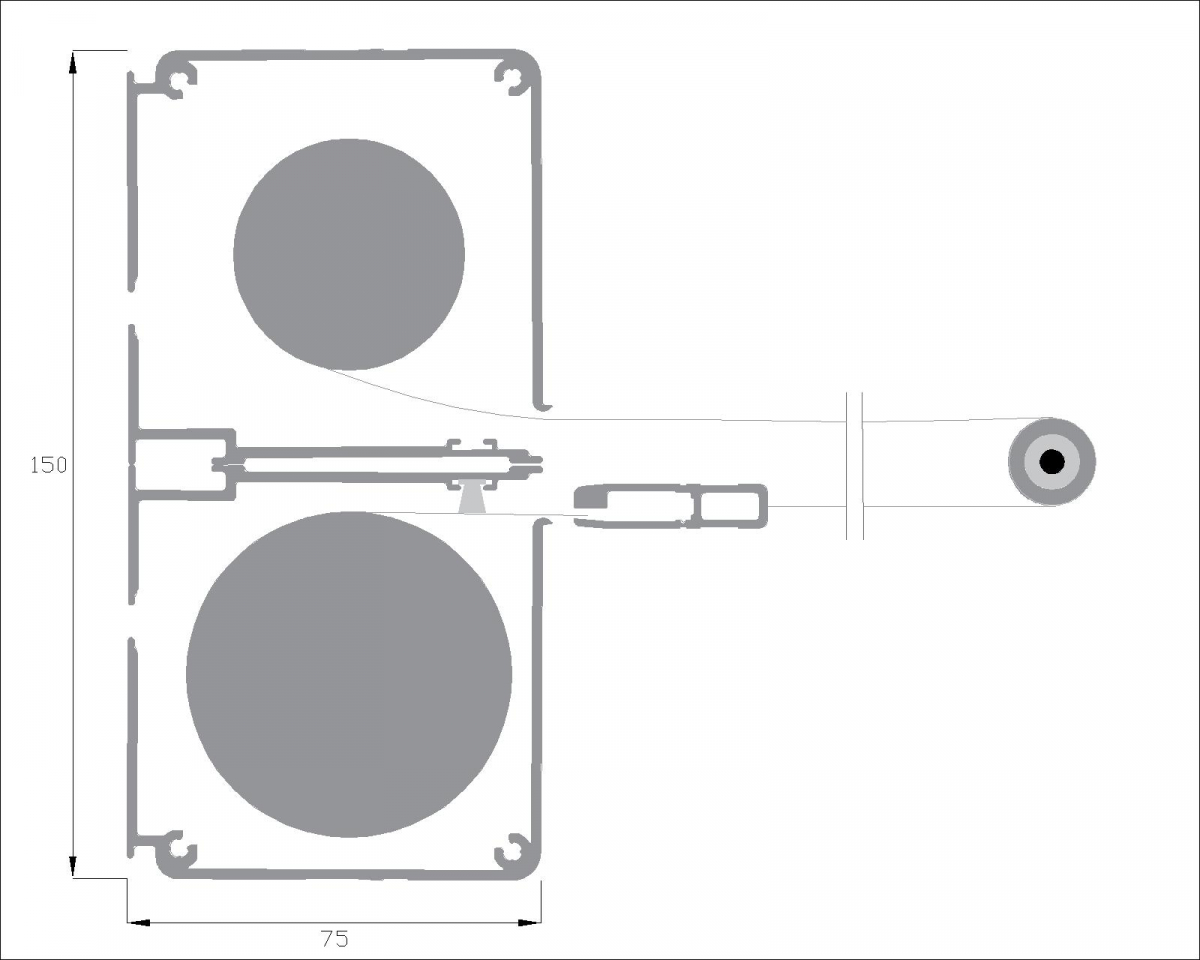

Opposite pull blinds (GGZ) F1 head boxes behind each other
