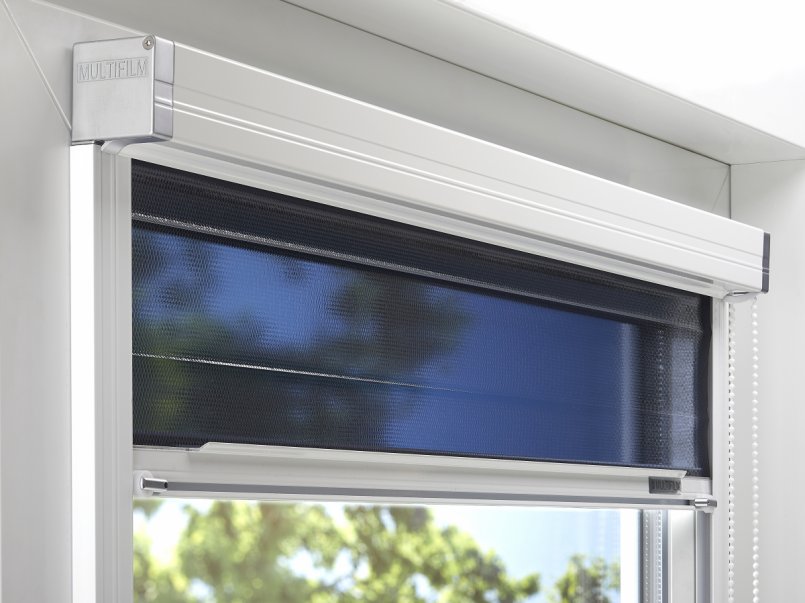

MultiFilm® Classic-Line
The Classic-Line system offers a wide selection of cassettes, bottom rails, side guides, and mounting options, making it suitable for various installation scenarios. Its compact design allows for systems up to 2200 mm in width and 3400 mm in height, with or without a motor.
Highlights:
Versatile product variants:
-
-
Lux-Line roller blinds: Operates from bottom to top
-
-
-
Roller blinds with geometric form for non-rectangular windows
-
MultiSky and counter-pull roller blinds for skylights
-
Flexible operation:
-
-
24V motor
-
Battery-powered motor
-
Manual control via chain drive, spring mechanism, or MultiStop
-
| type | width | height |
|---|---|---|
| C1 | 44 mm | 43 mm |
| R1 | 42 mm | 46 mm |
| C2 | 57 mm | 54 mm |
| Cassette | C1 | R1 | C2 |
|---|---|---|---|
| max. width | 1500 mm | 1500 mm | 2200 mm |
| max. height - chain operation | 3400 mm | 3400 mm | 3400 mm |
| max. height - spring operation | 1800 mm | 1800 mm | 3400 mm |
| max. height - Multistop | 1800 mm | 1800 mm | 2000 mm |
| max. height - motor operation | 3100 mm | 2800 mm | 3400 mm |
Element height may vary according to film type and pleating
Possible Operating Options| Operating | C1 | R1 | C2 |
|---|---|---|---|
| chain | + | + | + |
| cord | + | + | + |
| Multistop | + | + | + |
| 12 V Wireless Motor / 24 V Wired Motor | + | + | + |
Variants

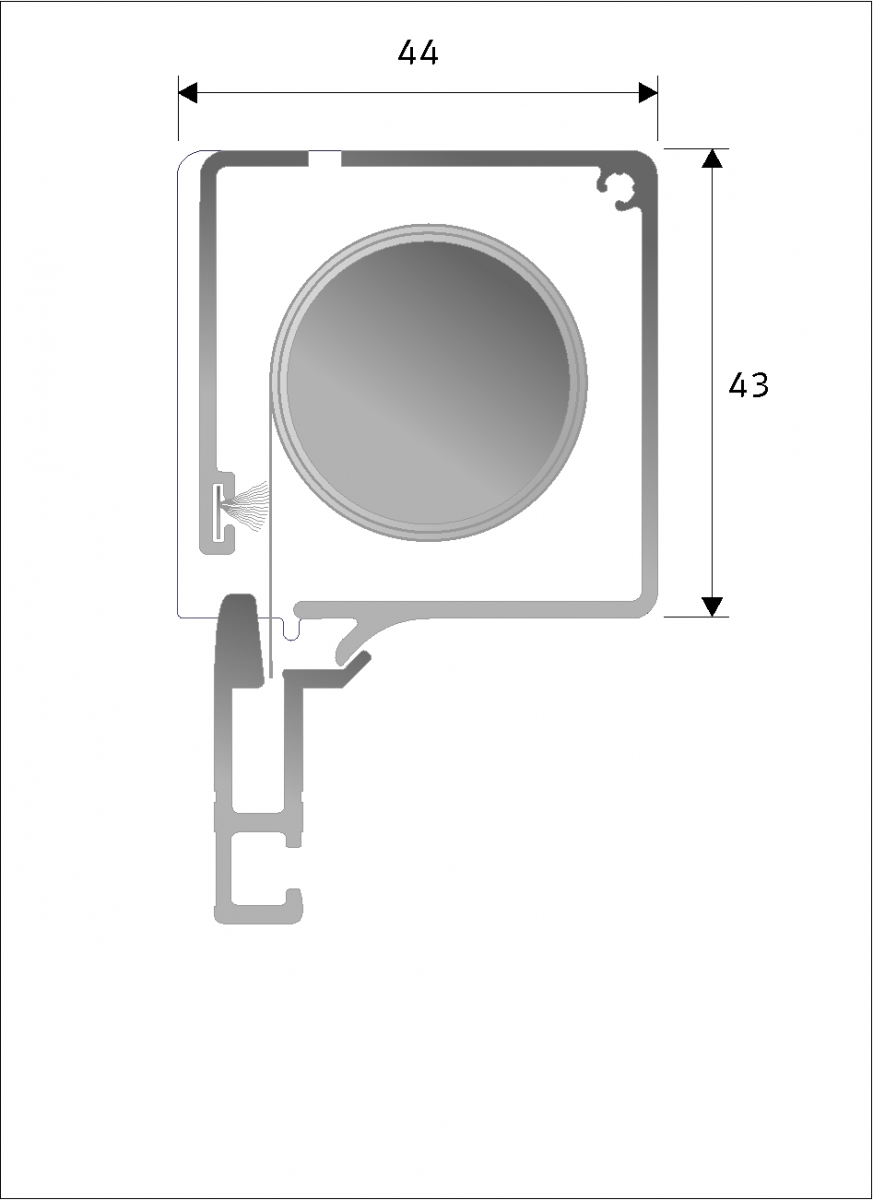

MultiFilm® Classic-Line head box C1 with integrated cleaning brush
MultiFilm® Classic-Line head box R1 with integrated cleaning brush

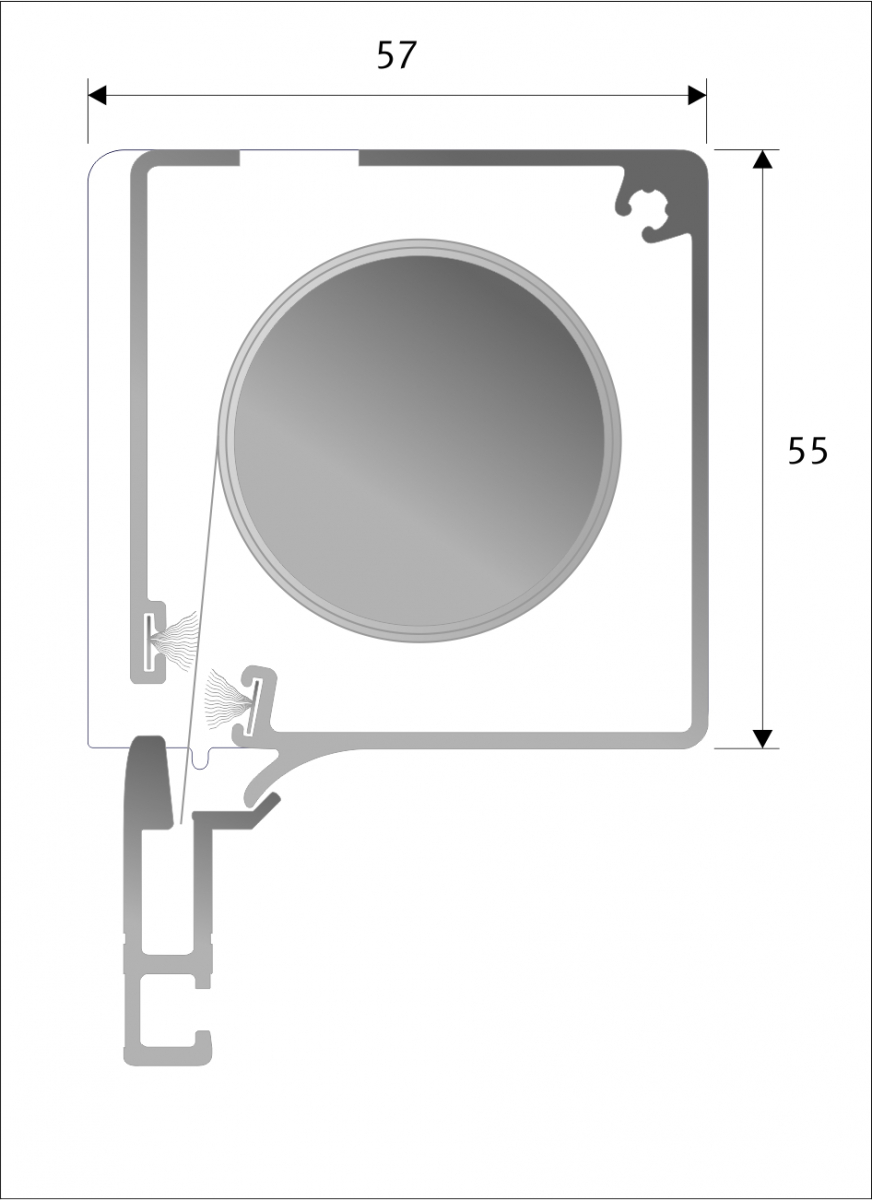

MultiFilm® Classic-Line head box C2 with integrated cleaning brush
