MultiFilm® Facade-Systems | XXL

The MULTIFILM® XXL roller blinds are specially designed for buildings with large-scale glazing, offering effective sun protection without compromising aesthetics.

Thanks to a special welding technology, roller blinds with a maximum width of 3000 mm and a length of up to 8000 mm are produced, making them ideal for large glass façades.

Features:

  • Electrically operable, also integrable into building automation

  • Alternative: Manual operation

  • Particularly stable, pleated films for optimal stability and appealing design

  • Profile parts made of durable aluminium and robust chain drives for high load capacity

  • Design options: With cassette or without cassette, can be integrated directly into suspended ceilings, making them nearly invisible

  • The perfect solution for modern architecture with large window areas that combines functionality and aesthetics

Head Box Size
type widthheight
F175 mm75 mm
F292 mm92 mm
Maximum Dimensions
Head BoxF1F2
max. width2700 mm3000 mm
max. height - chain operation6000 mm8000 mm
max. height - motor operation8000 mm8000 mm
Element height may vary according to film type and pleating
Possible Operating Options
OperatingF1F2
chain++
cord--
Multistop--
230 V Wired Motor++
Variants

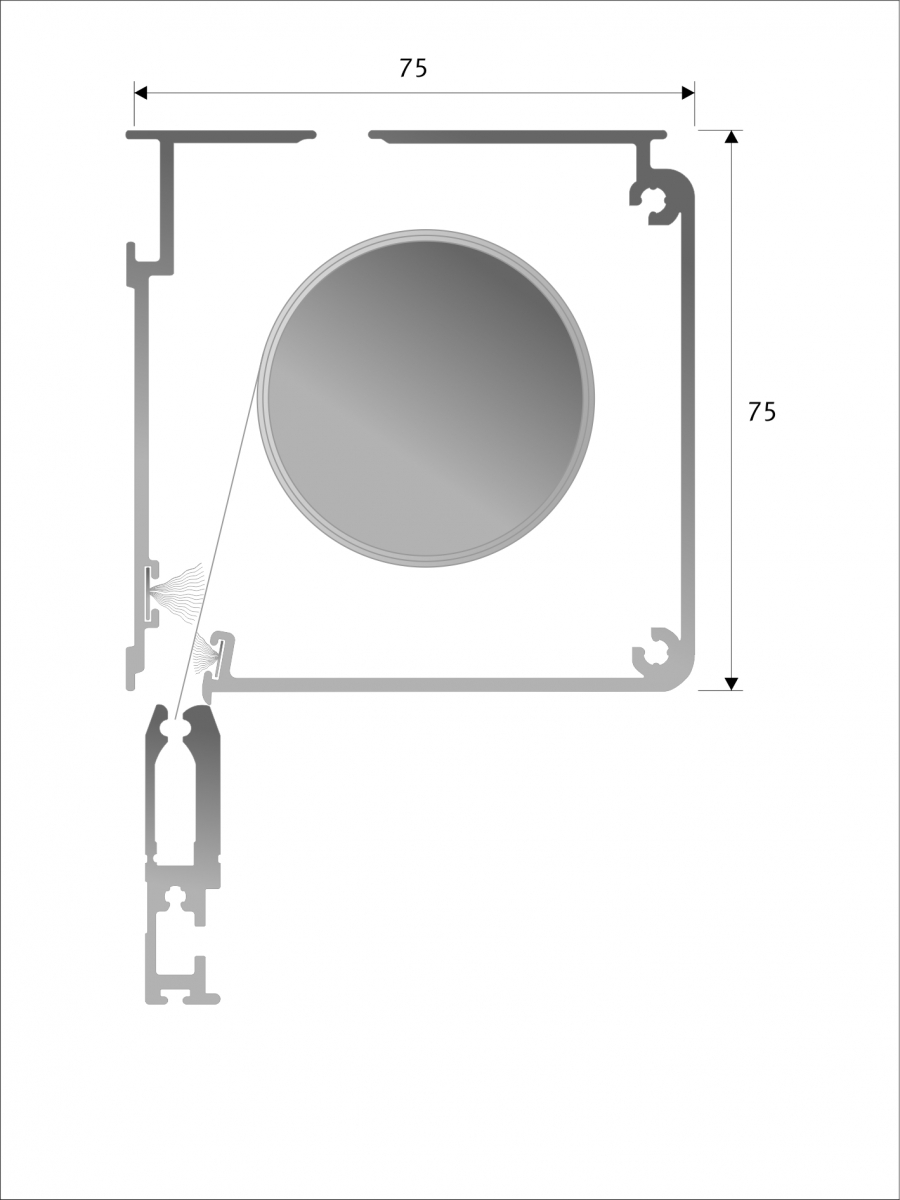

MultiFilm® facade system head box F1

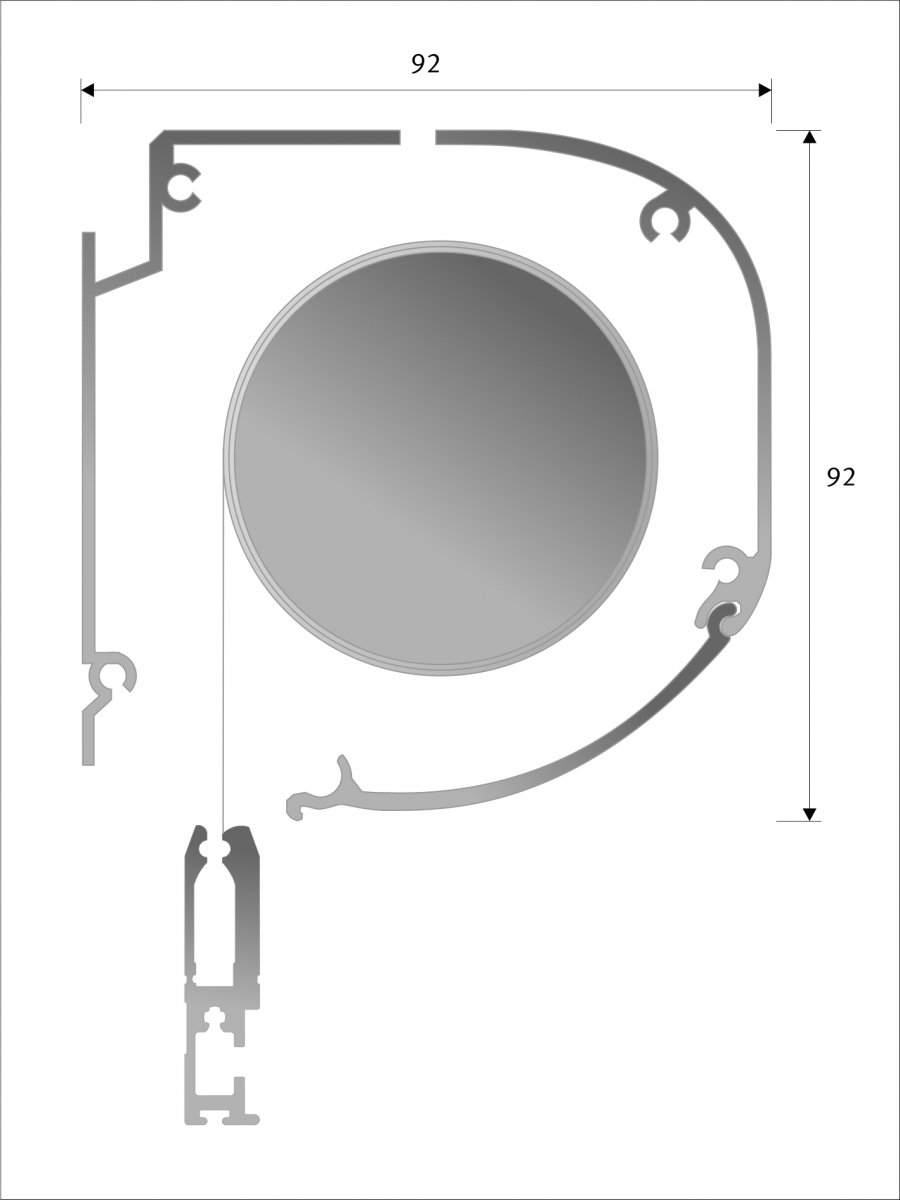

MultiFilm® facade system head box F2
