Roller blinds for large windows - shade in XXL format

MULTIFILM® offers roller blinds for large windows and glass façades - custom-fit and made to size. Using a special technology, single film sections can be welded together, producing roller blinds for large windows. This way, large windows must not be divided into segments anymore, but can be shaded with a single roller blind. An extra strong film is used which is additionally pleated. This ensures a harmonious interior and exterior view.

  • Large electrical XXL roller blinds as sun protection for conference rooms

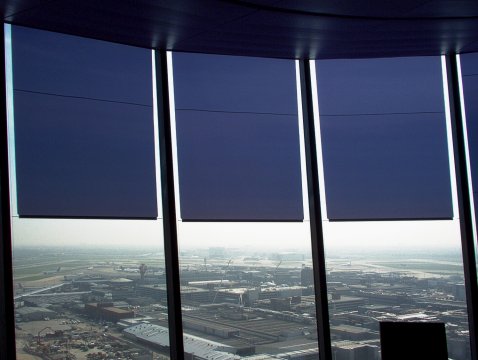

  • XXL sun protection for airport tower London Heathrow
  • Glare protection with transparent film roller blinds at airport tower London Heathrow
  • Product information
  • Operation
  • Maximum sizes
  • Technical details
  • Properties
    • Roller blinds up to 3 m width and 8 m height
    • With or without head box
    • Integration into façade possible

    Use
    • Buildings with large-surface glazing
  • Operation and drive variants

    Manual:

    • Chain loop

    Electrical:

    • Motor (230 V) with switch and remote control

  • Maximum sizes
    Max. width Max. height
    3,000 mm 8,000 mm

    Element height depending on film or fabric type as well as pleating

    • Head boxes
      • Multi-piece aluminium housing, either anodised or RAL powder-coated
      • Side metal cover
      • F1
        XXL-Head box F1
      • F2
        XXL-Head box F2
    • Side guides
      • Aluminium profiles, either anodised or RAL powder-coated
      • Optimal lateral guide for film and bottom rail
      • For covering the lateral light gaps
      • For protection of the film edges against damage
      • Side guides U27 for roller blinds
        U27

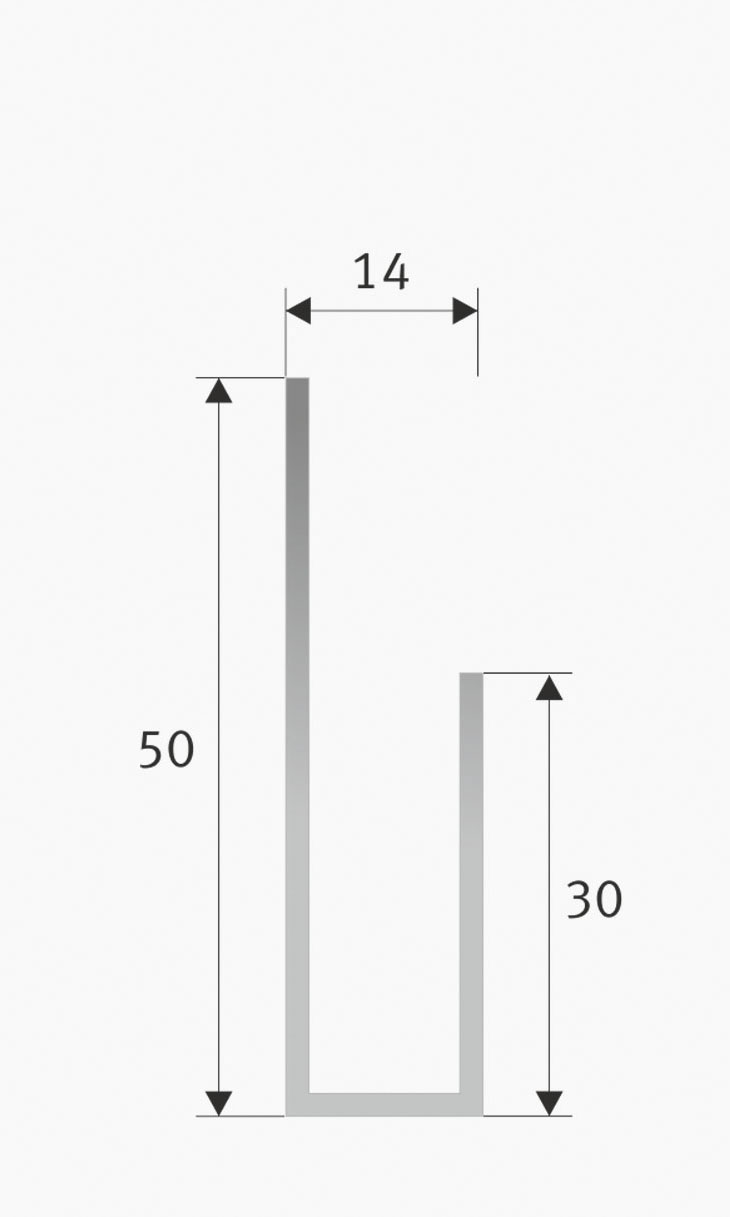

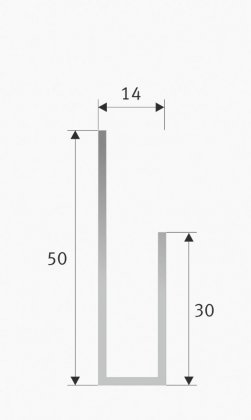

      • Seitenführung U30-50 für Rollos
        U30/50
      • side guide E60/27 for roller blinds
        E60/27
    • Bottom rails
      • Aluminium profiles, either anodised or RAL powder-coated
      • Side plastic gliders for minimised running noise
      • Different bottom rail types depending on hanging materials, e.g. with adjustable stop rollers for optimum guidance of the hanging
      • S
        Bottom rail S
    • Installation

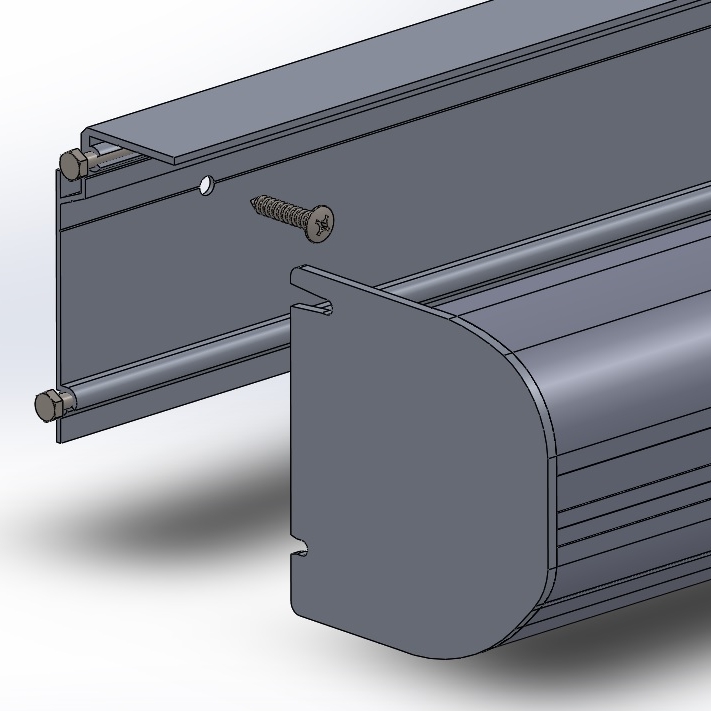

      • installation of XXL roller blinds by the rear part to the backp
        Installation by the rear part to the back

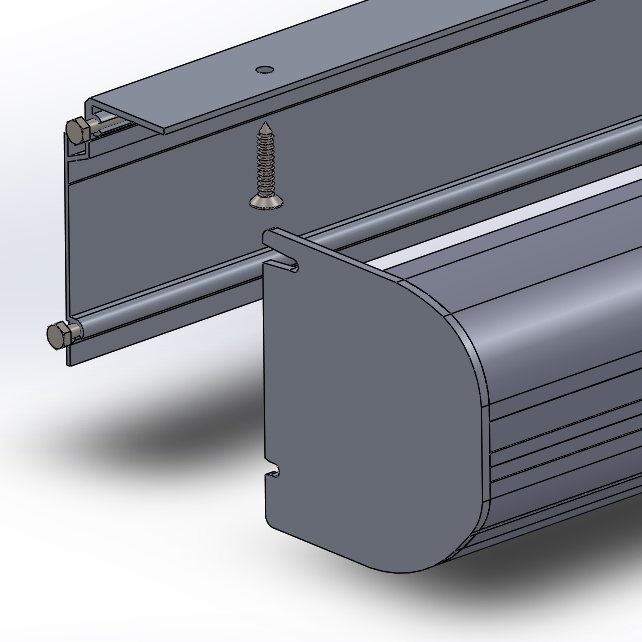

      • installation of XXL roller blinds by the rear part to the top
        Installation by the rear part to the top

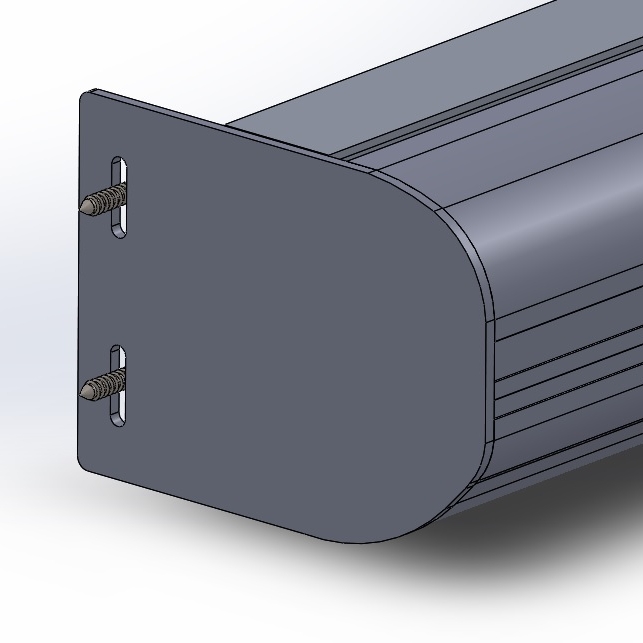

      • by screw channel to the back side
        Installation by side plates to the back side

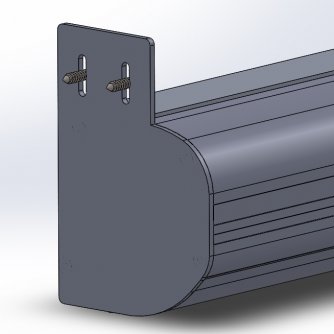

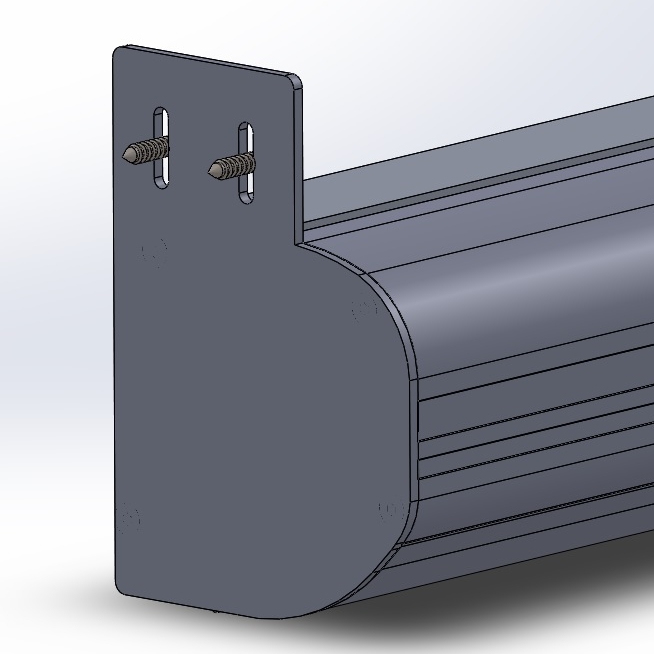

      • installation of XXL roller blinds by side plates to the top
        Installation by side plates to the top side

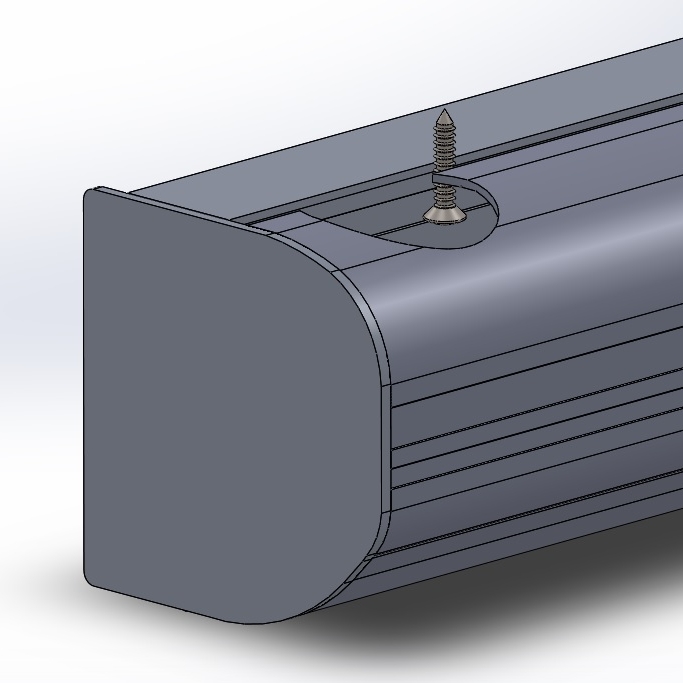

      • installation of XXL roller blinds by screw channel to the top
        Installation by screw channel to the top
