Opposite pull blinds - effective for horizontal and inclined glazing

back
  • electrical opposite pull blind integrated in the facade
  • opposite pull blinds at Gemini office buildings, Wollerau Schweiz

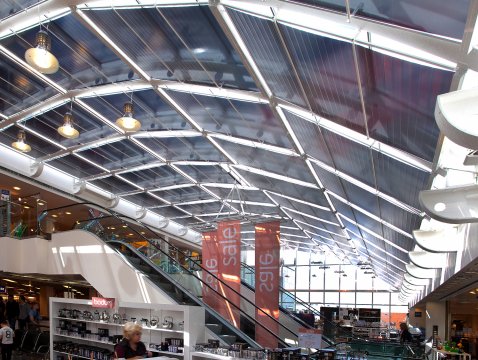

  • electrical opposite pull blinds with film hangings under horizontal glass roof
  • Product information
  • Operation
  • Maximum sizes
  • Technical details
  • Properties
    • System comprises two head boxes: one head box with spring loaded roller blind, one head box with electrical counter traction
    • Roller blind is always tight due to spring tension – inclined and horizontal installation positions realisable without problems
    • Special solutions for non-rectangular windows

    Use
    • Inclined glazing
    • Light domes and bands
    • Winter gardens and atria

  • Operation and drive variants

    Electrical:

    • Motor (24 V) with switch and remote control
    • Rechargeable battery motor with remote control:
      Can be retrofitted without complex cabling, uncomplicated recharging, charging cycle approx. 2 months
    • BUS-capable SMI motor (24 V) with switch or remote control:
      Intelligent motors enable synchronous run of adjacent systems and exact stopping at any intermediate positions, with soft start and stop



  • Maximum sizes
    Max. width Max. height
    2,200 mm 3,400 mm

    Element height depending on film or fabric type as well as pleating

    • Head boxes
      • Multi-piece aluminium housing, either anodised or RAL powder-coated
      • Non-visible ventilation slots
      • Side metal cover

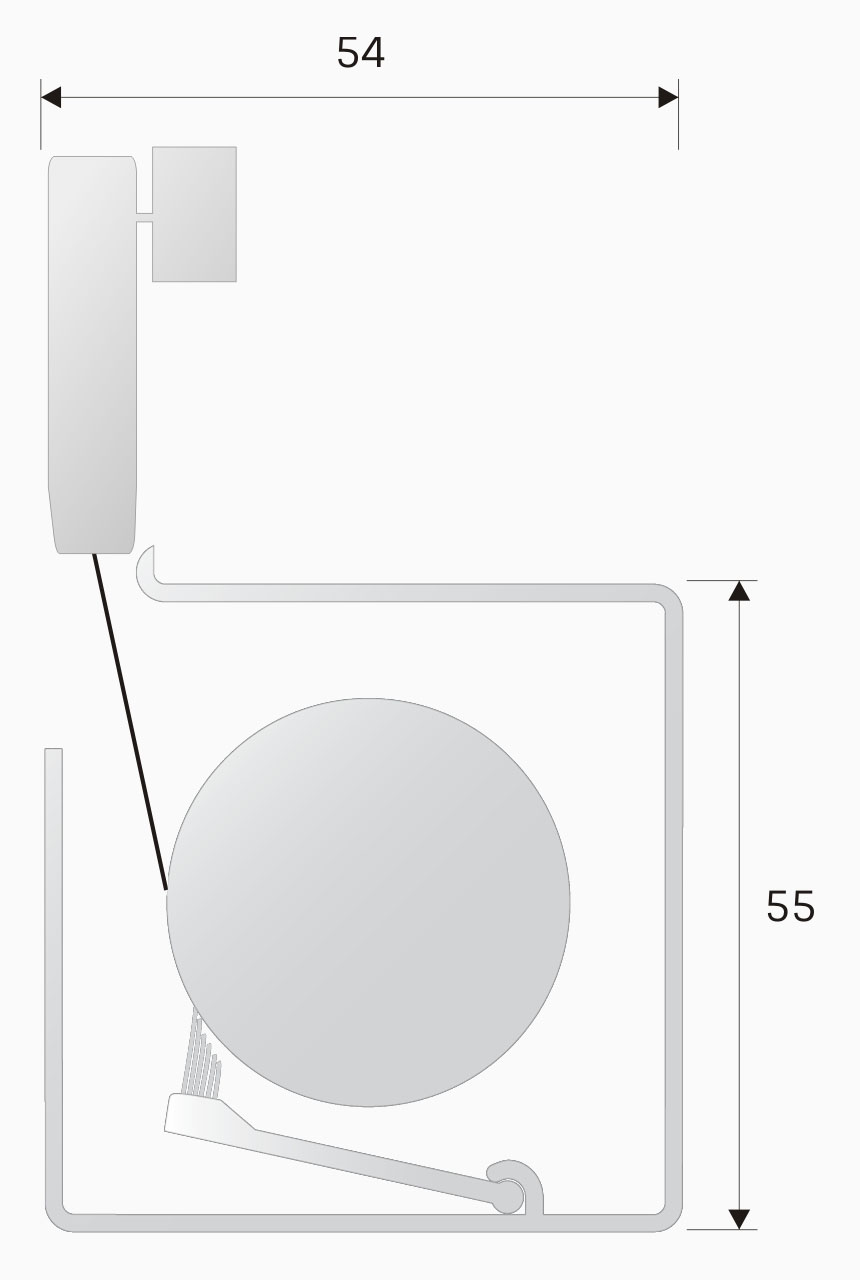

      • Head box of opposite pull blinds for spring operated blind
        Head box of opposite pull blinds for spring operated blind
    • Side guides
      • Aluminium profiles, either anodised or RAL powder-coated
      • Optimal lateral guide for film and bottom rail
      • For covering the lateral light gaps
      • For protection of the film edges against damage
      • Side guides U38 U50 for roller blinds
        U38, U50
      • Seitenführung U30-50 für Rollos
        U30/50
      • Side guides UL38 UL50 for roller blinds
        UL38, UL50
    • Bottom rails
      • Aluminium profiles, either anodised or RAL powder-coated
      • Adjustable type-E bottom rail enables subsequent hangings correction for improved appearance
      • Side plastic gliders for minimised running noise
    • Installation

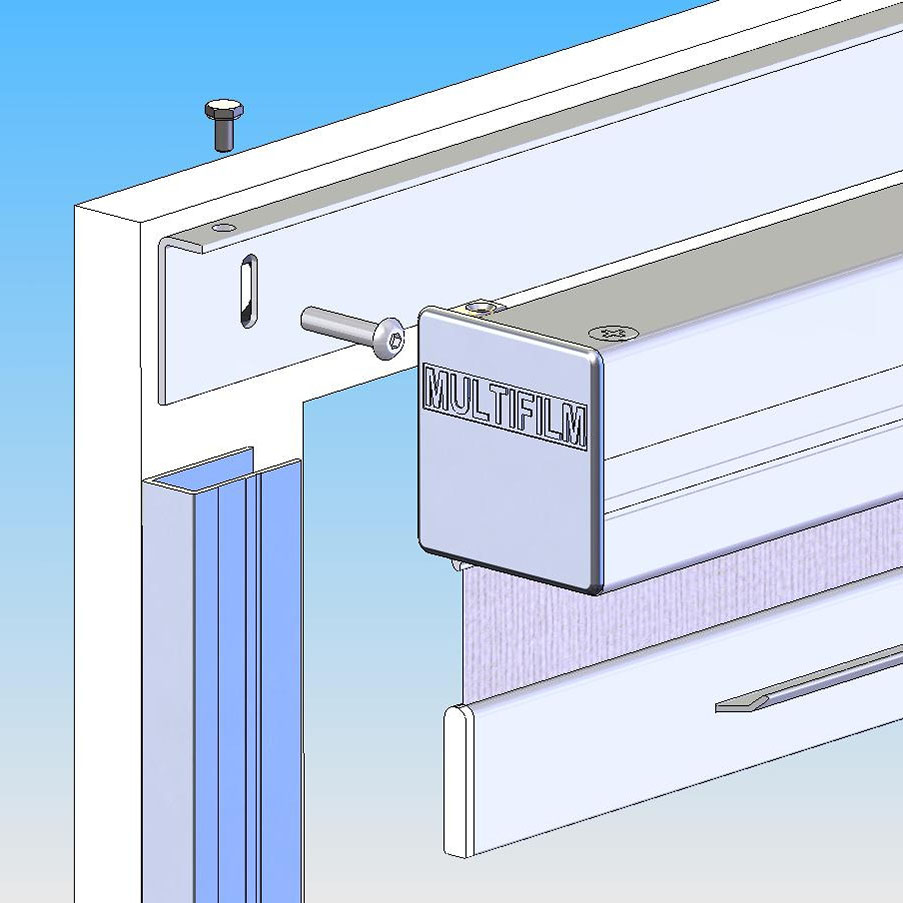

      • Classic-Line screw-fitting on or into the frame
        screw-fitting on or into the frame
