Lux-Line - the roller blind from bottom to top

back

Properties
- Closing direction of the hangings from bottom to top
- Patented bottom rail

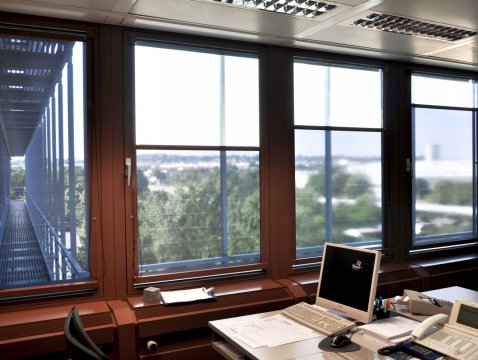

- Enables daylight utilization in the window’s top area and at the same time glare protection at eye level
Use
- Narrow, high or non-rectangular windows
- Inclined and horizontal windows
Operation and drive variants
- Chain loop
- Spring traction
- Cord lock locks the roller blind at any height
Maximum sizes

Max. width Max. height

Head box C1, R1 1,500 mm 1,800 mm

Head box C2 2,200 mm 3,400 mm

Element height depending on film or fabric type as well as pleating
- Head boxes
  Multi-piece aluminium housing, either anodised or RAL powder-coated

  Non-visible ventilation slots

  Side metal cover
  - Head box R1
  - Head box C1
  - Head box C2
- Side guides
  Aluminium profiles, either anodised or RAL powder-coated

  Optimal lateral guide for film and bottom rail

  For covering the lateral light gaps

  For protection of the film edges against damage
  - U27, U38, U50
  - U30/50
  - U27/60
  - UL38, UL50
  - Y32
    for Lux-Line
    with cord operation

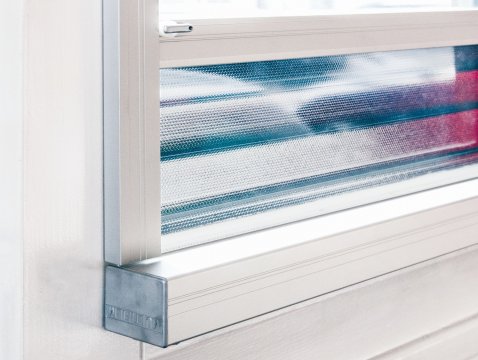

- Bottom rails
  Aluminium profiles, either anodised or RAL powder-coated

  Adjustable bottom rail type E enables subsequent hangings correction for improved appearance

  Side plastic gliders for minimised running noise
  - Bottomrail E
- Installation

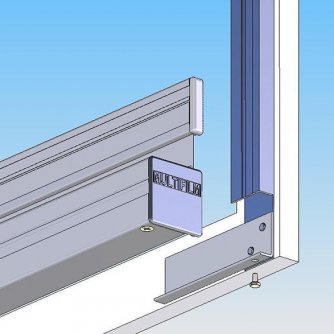

  - Screw fitting on the frame

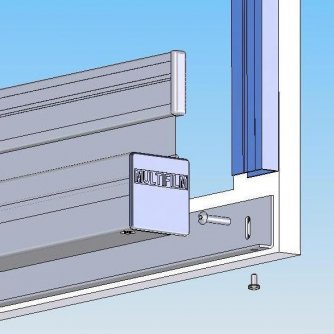

  - Adhesive installation on the frame (no drilling)
