• Properties

  • Most varied product group in terms of operation, hanging materials and window geometry
  • Wide choice of side guides, head boxes and bottom rails




  Use

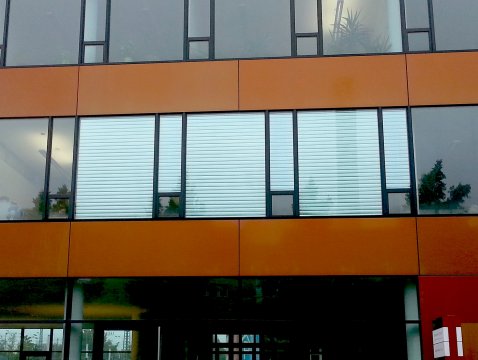

  • Industrial, commercial, administrative and private buildings



• Operation and drive variants

  Manual:

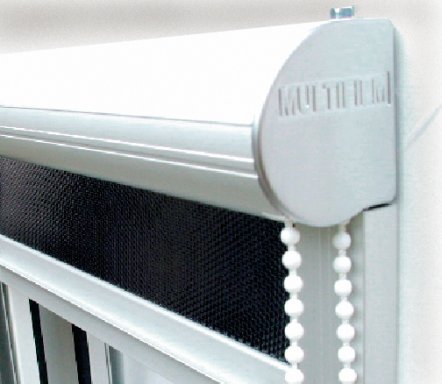

  • Chain loop
  • Spring traction
  • Operation on bottom rail



  Electrical:

  • Motor (24 V) with switch and remote control
  • Rechargeable battery motor with remote control:
    Can be retrofitted without complex cabling, uncomplicated recharging, charging cycle approx. 2 months

• Maximum sizes

  	Max. width	Max. height	Max. height
  		chain loop	electrical
  Head box C1, R1	1,500 mm	3,400 mm	2,300 mm
  Head box  C2	2,200 mm	3,400 mm	3,400 mm

  Element height depending on film or fabric type as well as pleating

• • Head boxes
    • Multi-piece aluminium housing, either anodised or RAL powder-coated
    • Non-visible ventilation slots
    • Side metal cover

    •

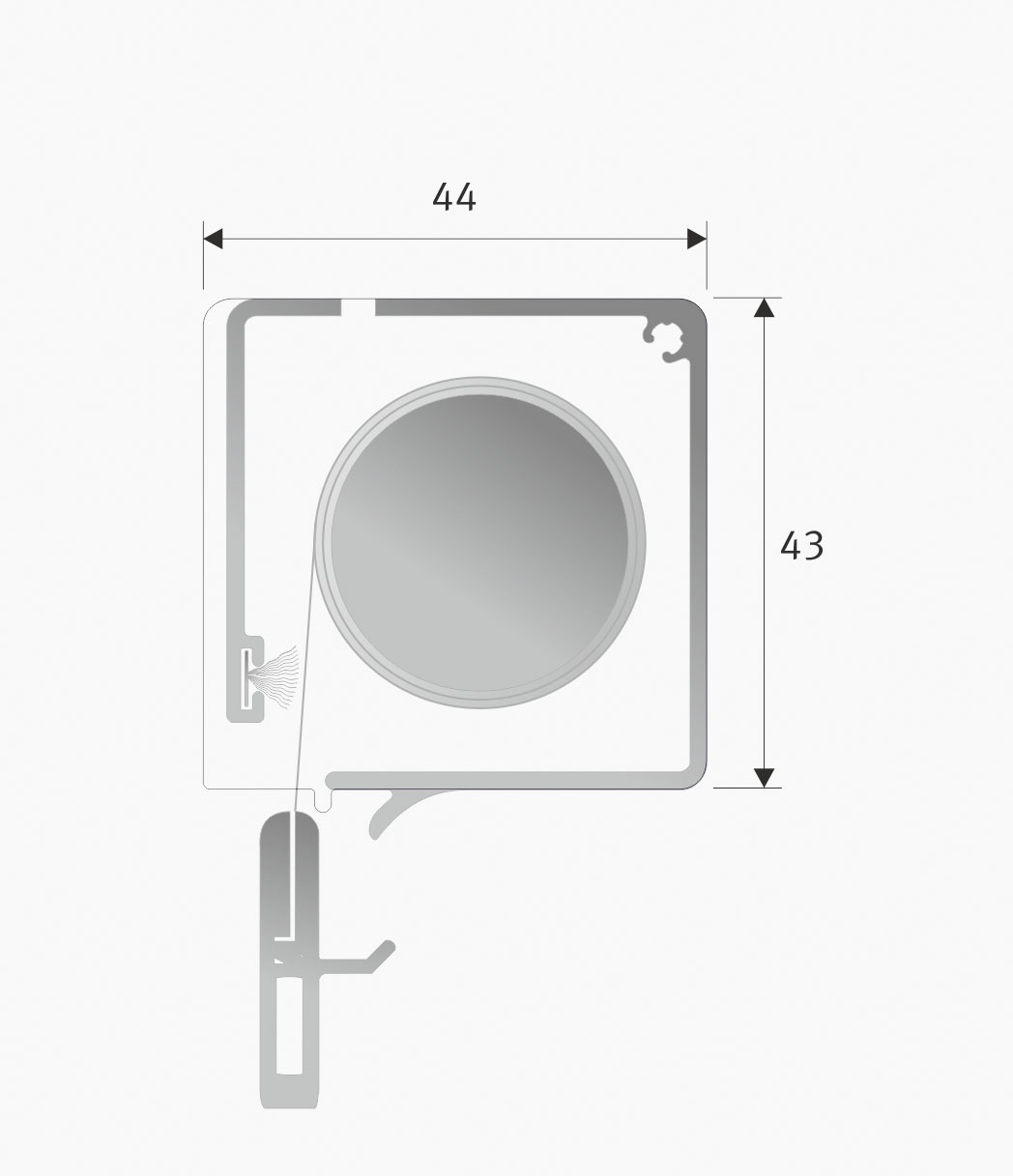

      Head box C1
    •

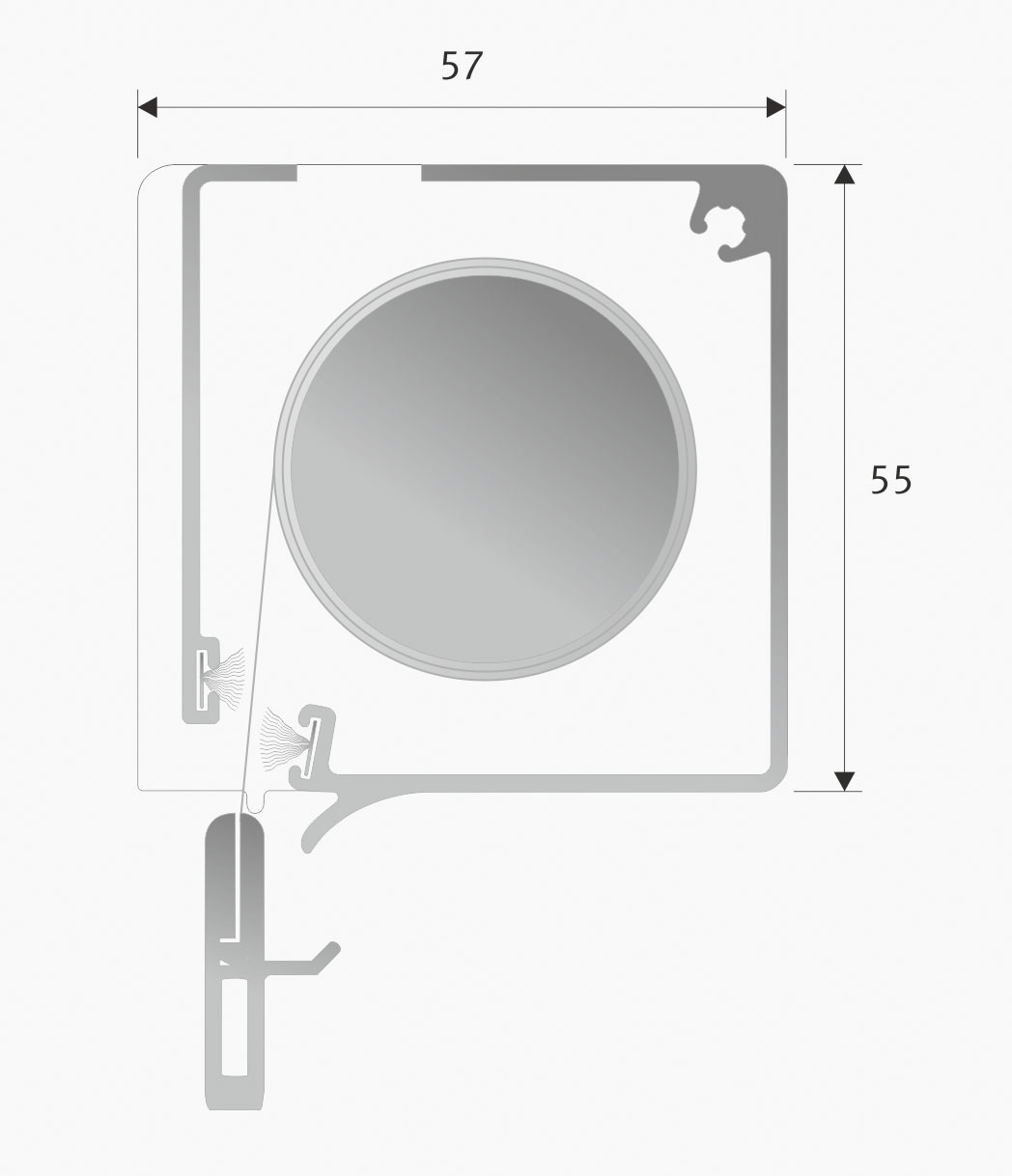

      Head box C2
    •
      Head box R1

    •

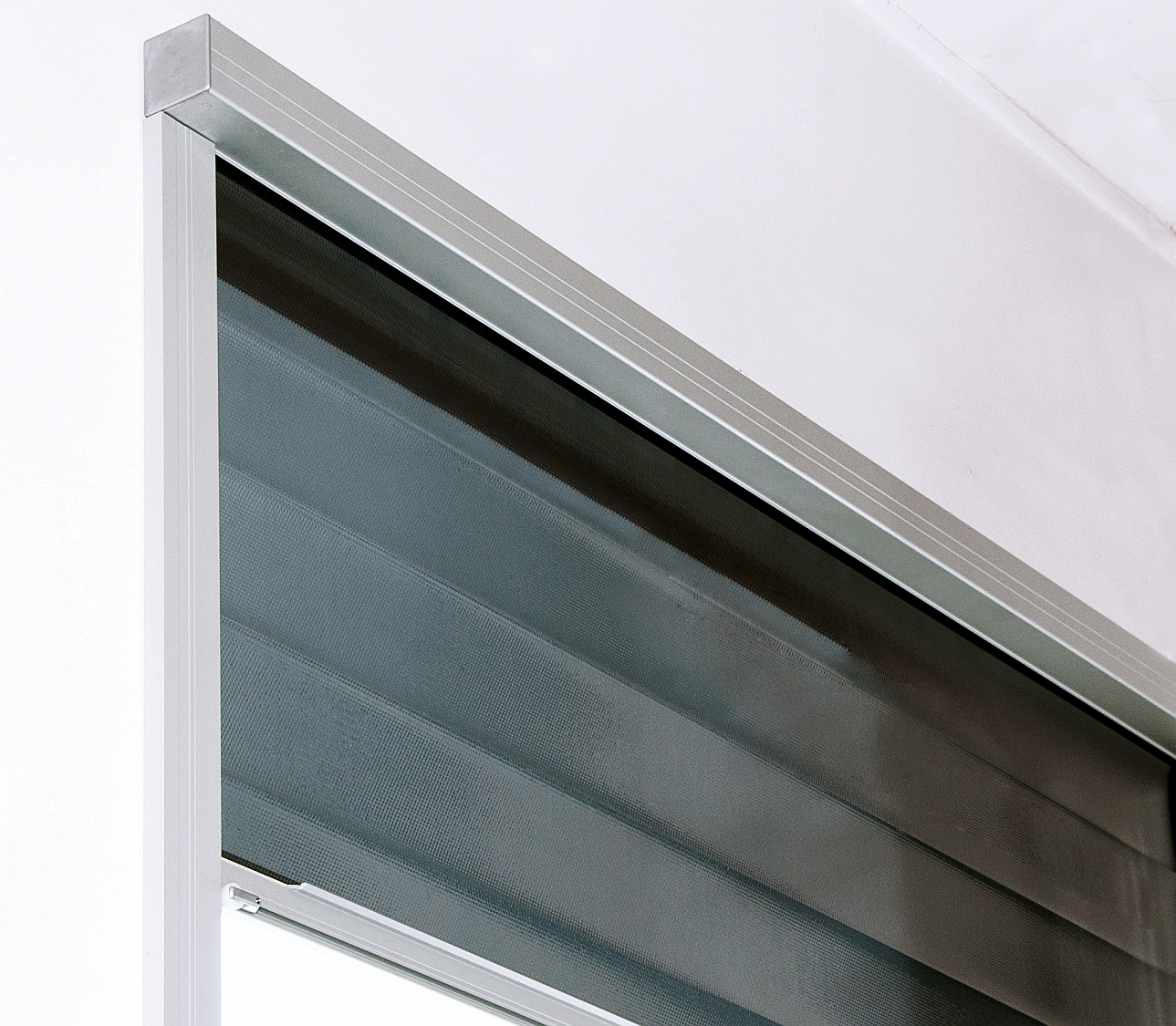

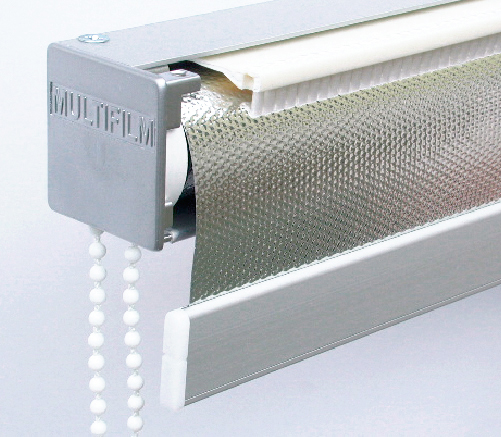

      Sun protection blind Multifilm Classic-Line C1 (aluminium anodised)
    •
      Integrated brushes are cleaning the outside surface of the blind with every moving
    •

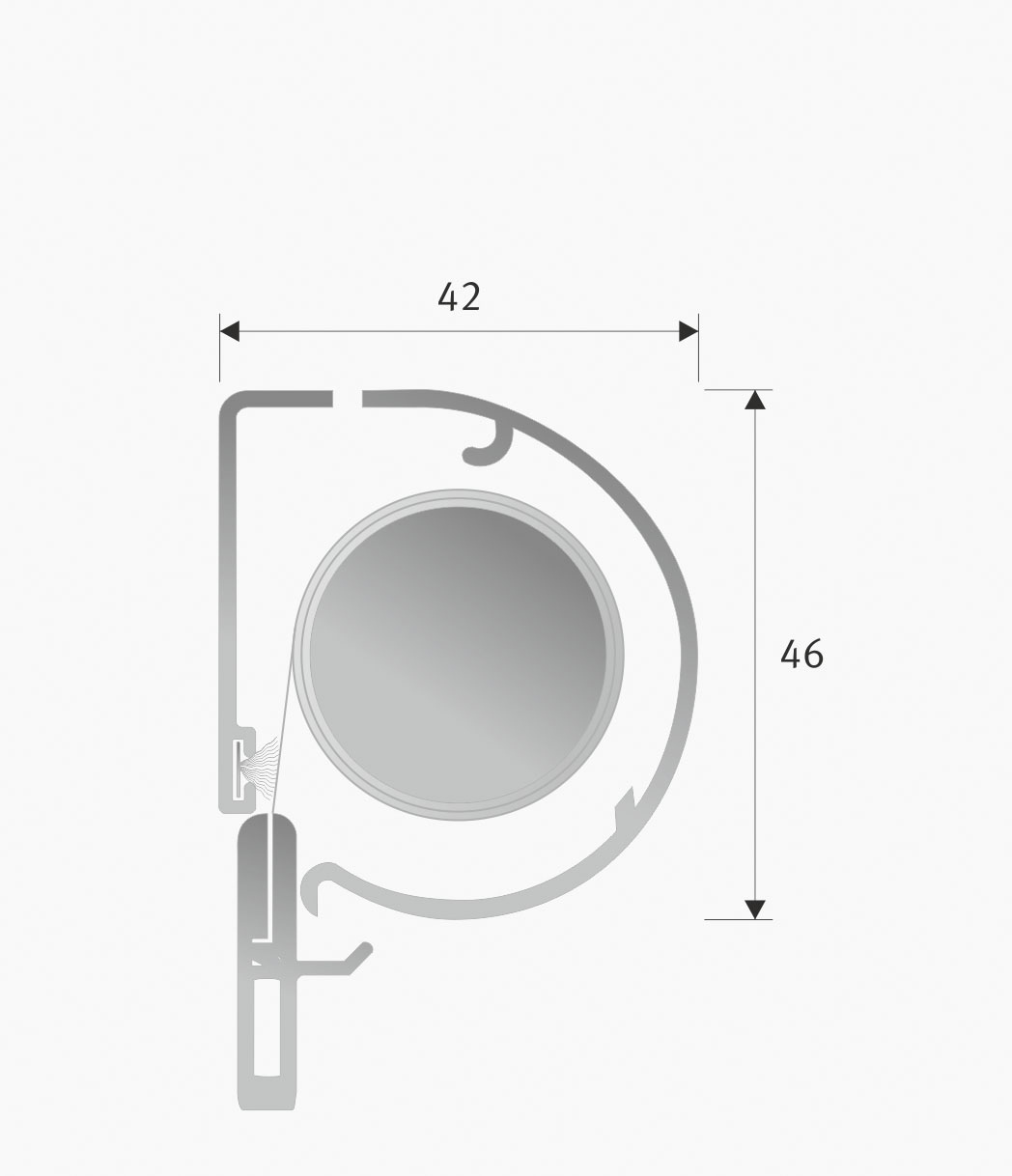

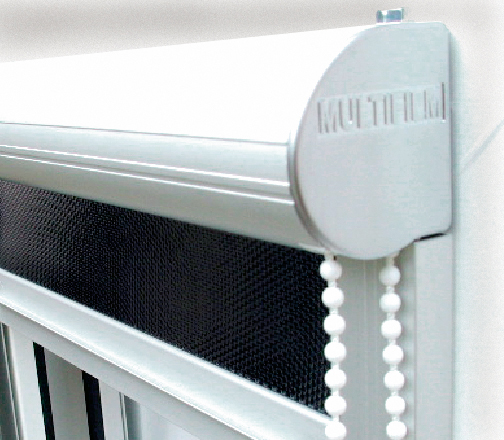

      Round shaped head box R1
  • Side guides
    • Aluminium profiles, either anodised or RAL powder-coated
    • Optimal lateral guide for film and bottom rail
    • For covering the lateral light gaps
    • For protection of the film edges against damage

    •

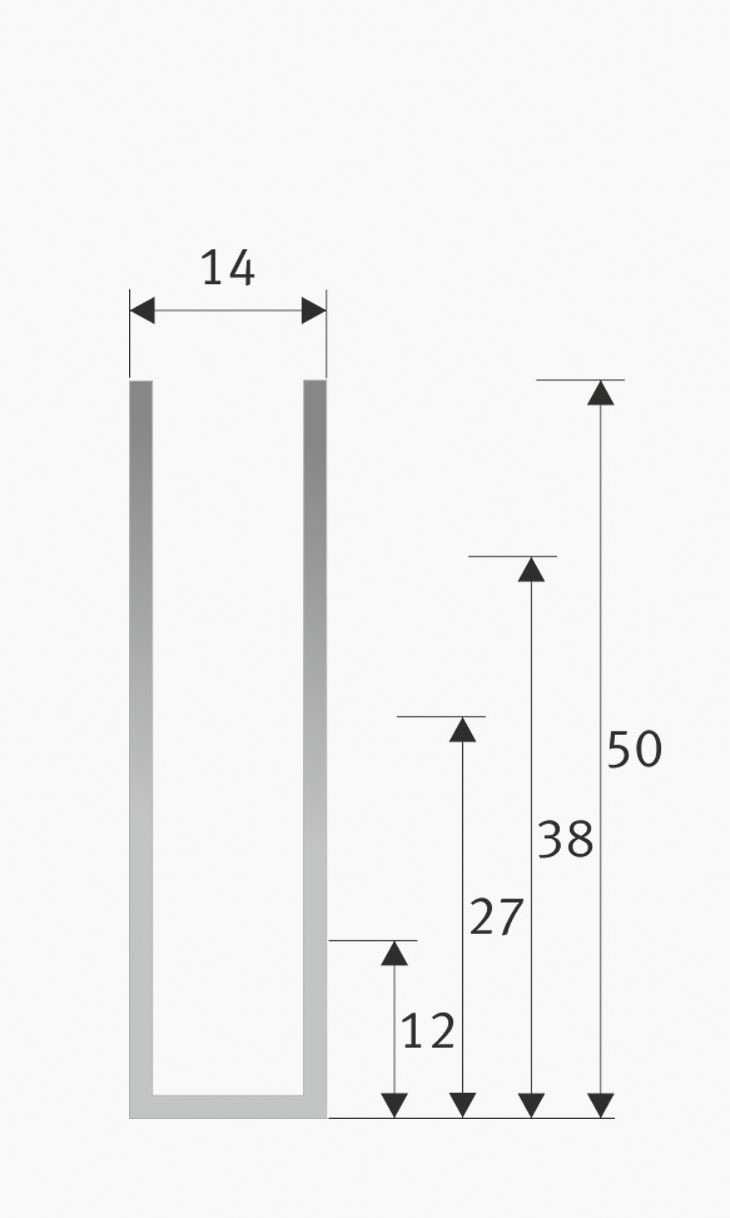

      U12, U27, U38, U50
    •

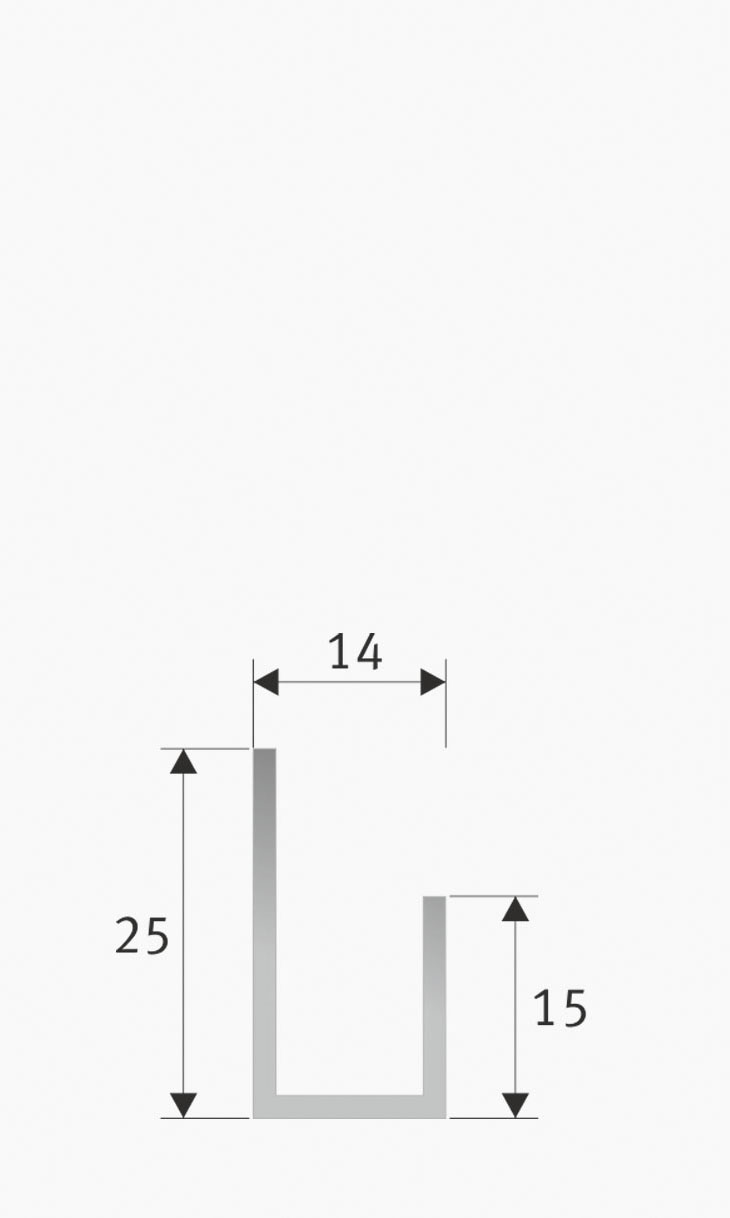

      U15/25
    •
      U30/50
    •

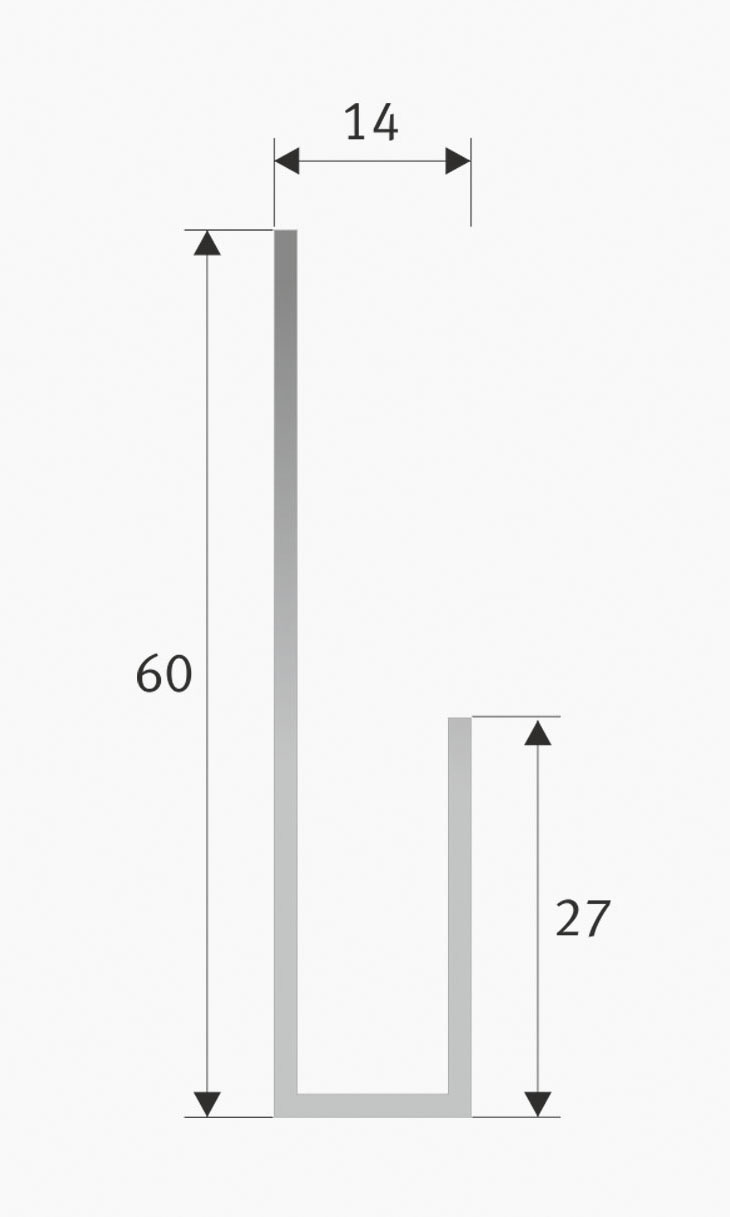

      U27/60
    •

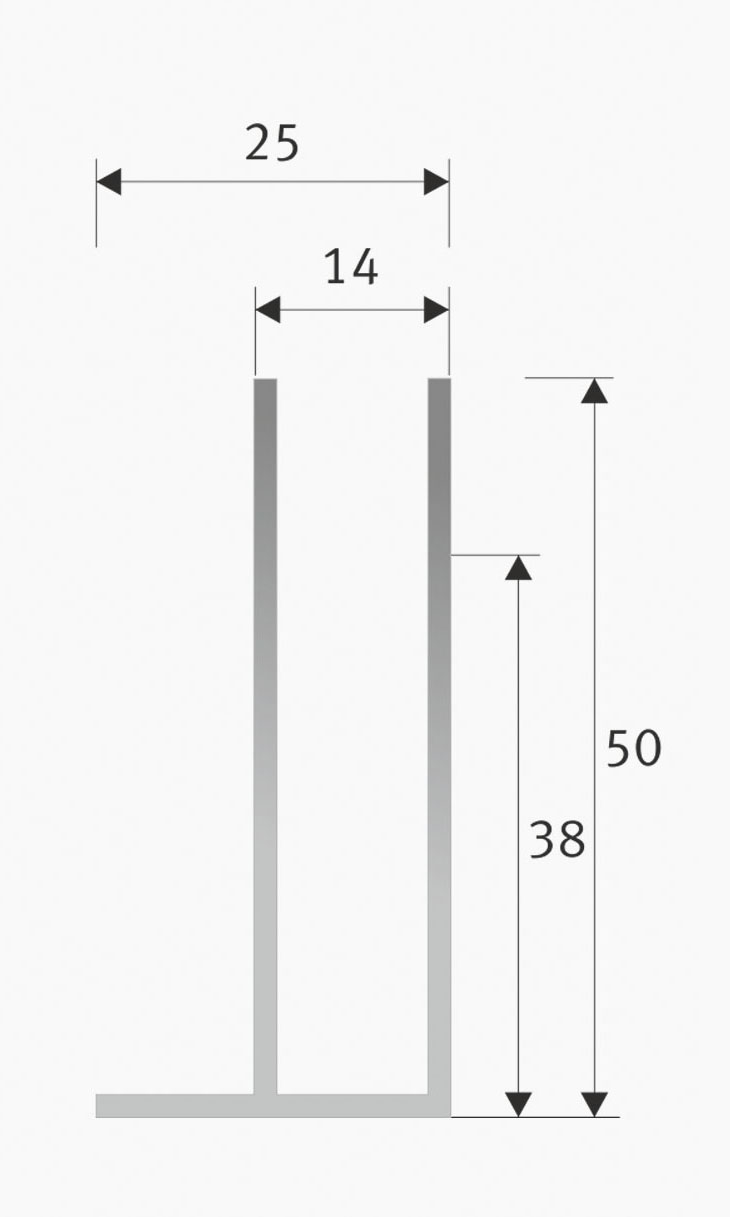

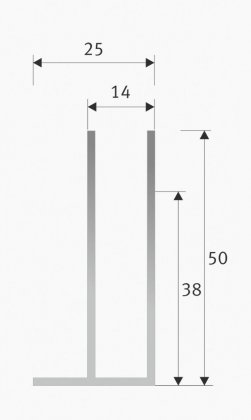

      UL38, UL50
    •

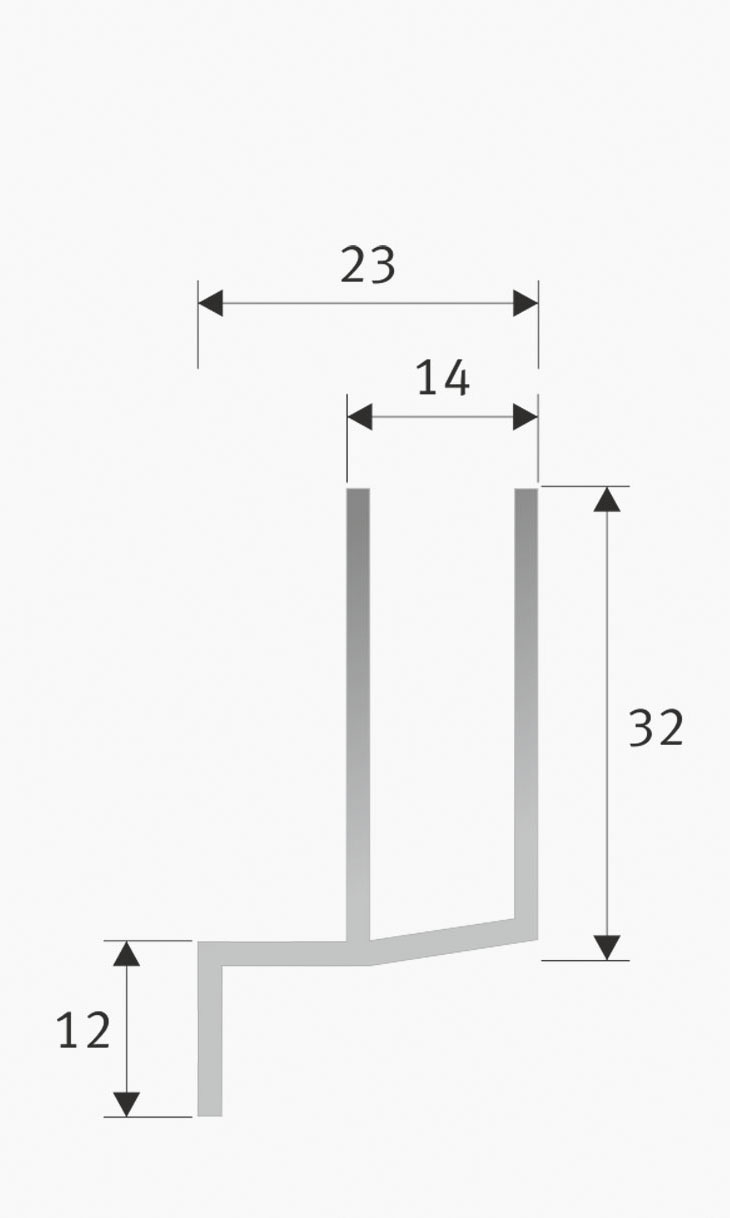

      Y32
    •

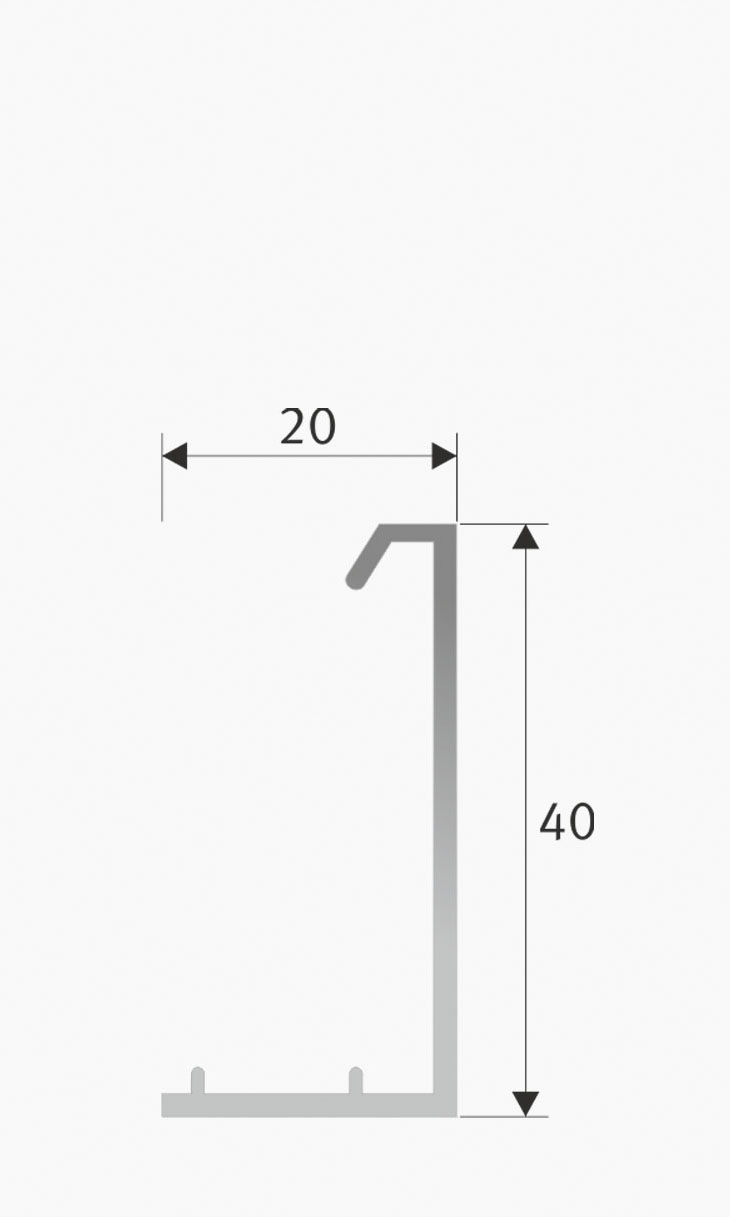

      L40



    •

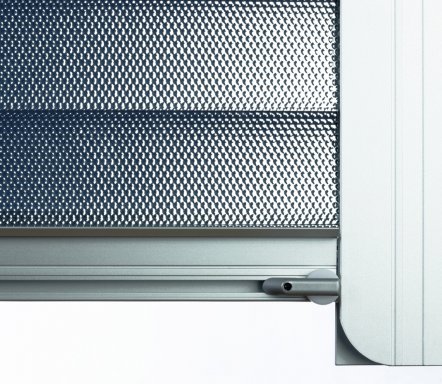

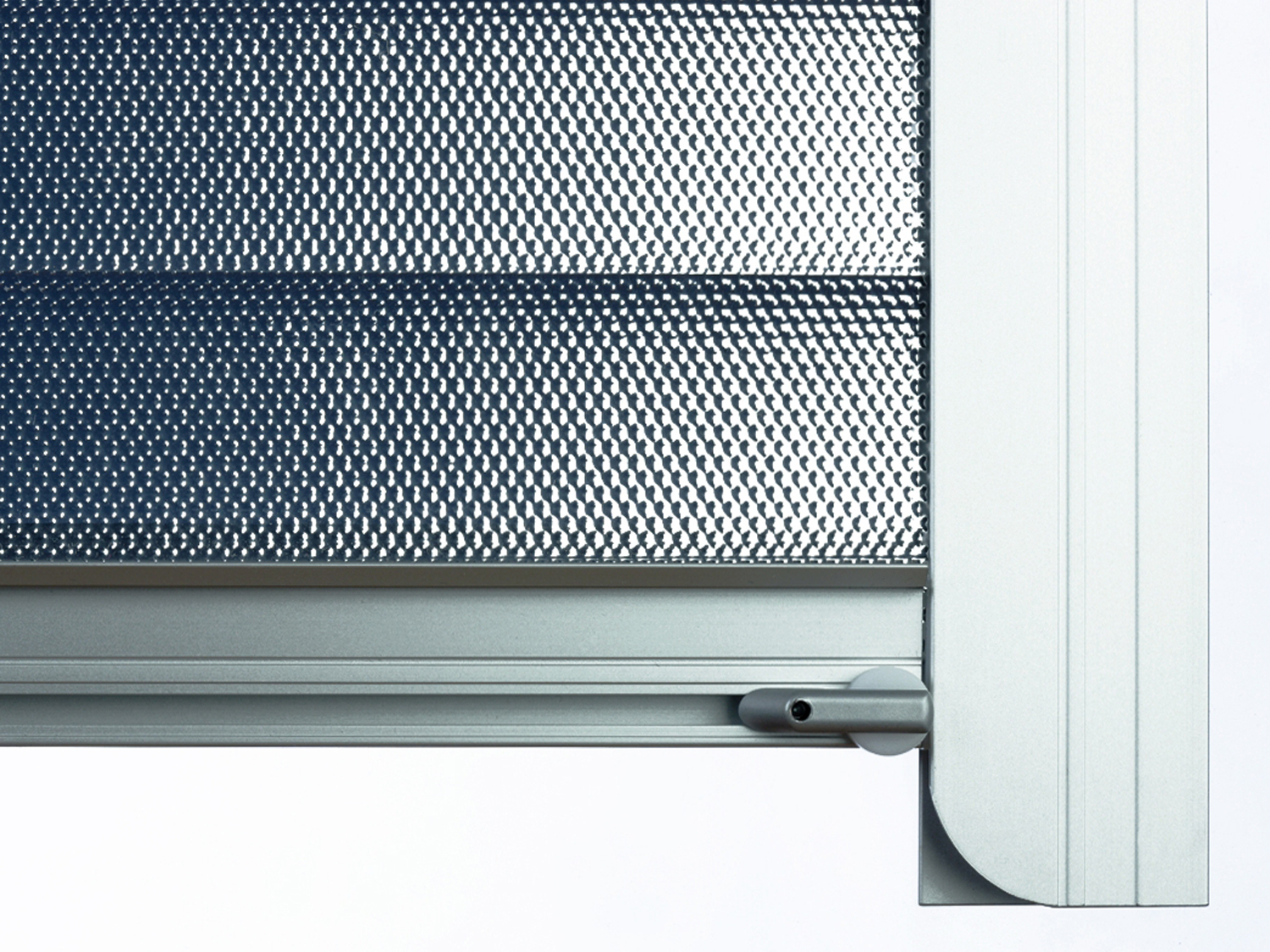

      Rounded side guides for protection against injuries
  • Bottom rails
    • Aluminium profiles, either anodised or RAL powder-coated
    • Side plastic gliders for minimised running noise
    • Different bottom rail types depending on hanging materials, e.g. with adjustable stop rollers for optimum guidance of film or fabric
    • Adaptations for rope guidance for C1 and C2 head box possible

    •

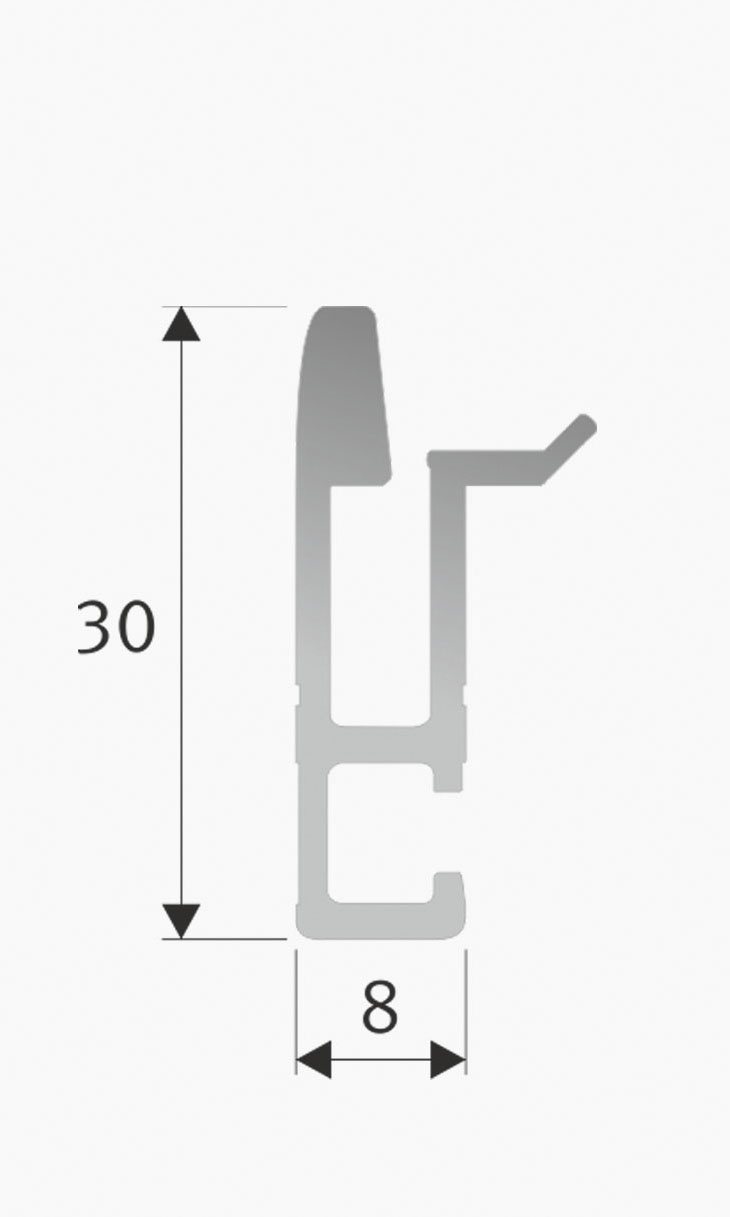

      Bottom rail P
    •

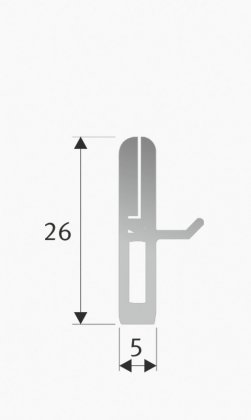

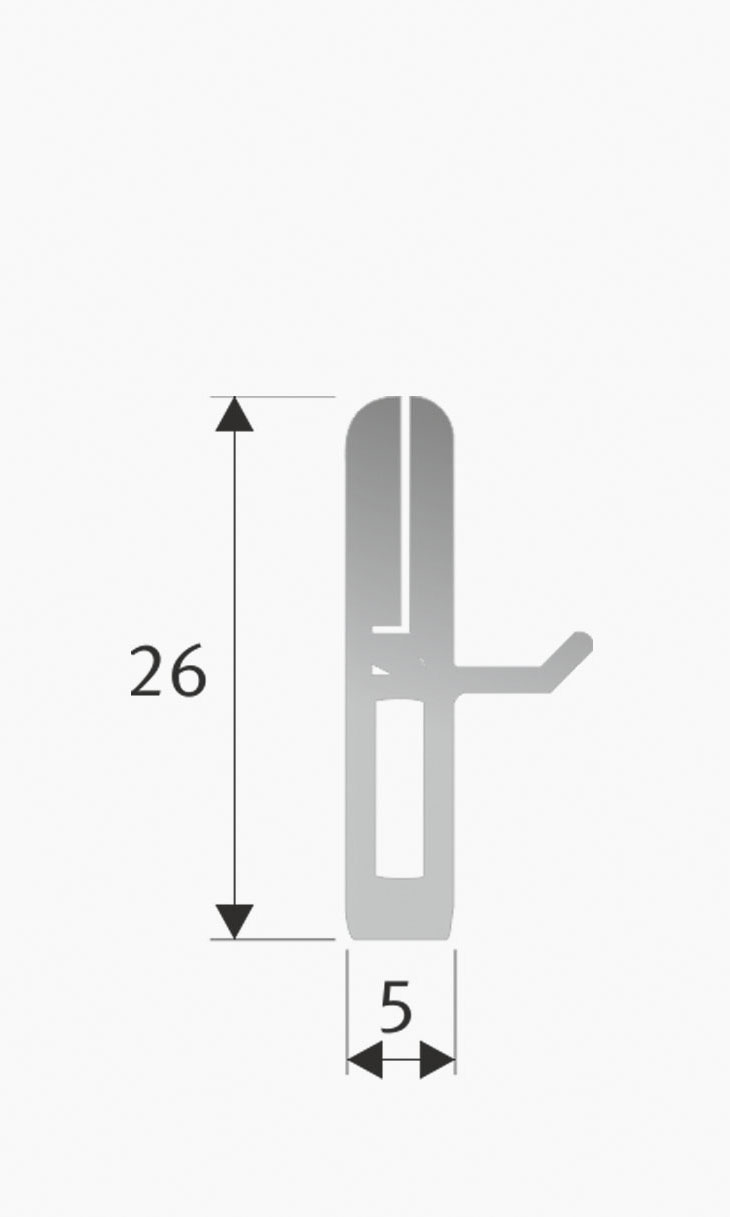

      Bottom rail L
    •

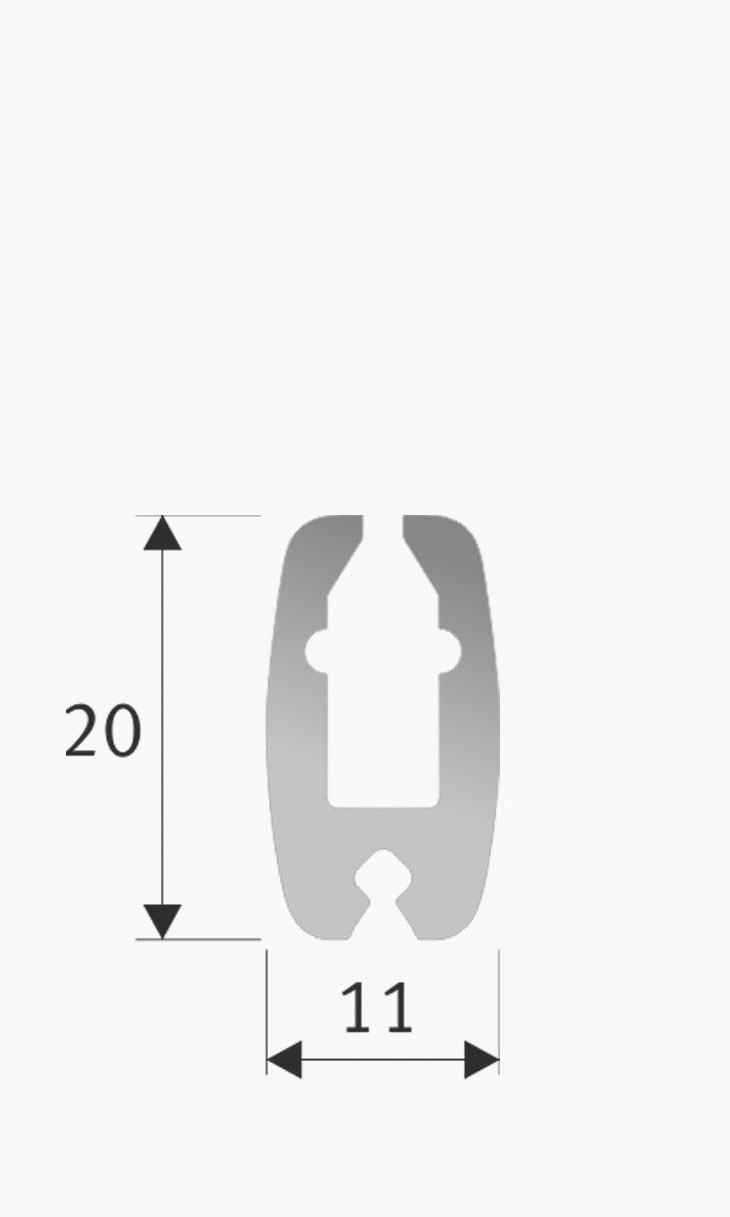

      Bottom rail T
    •

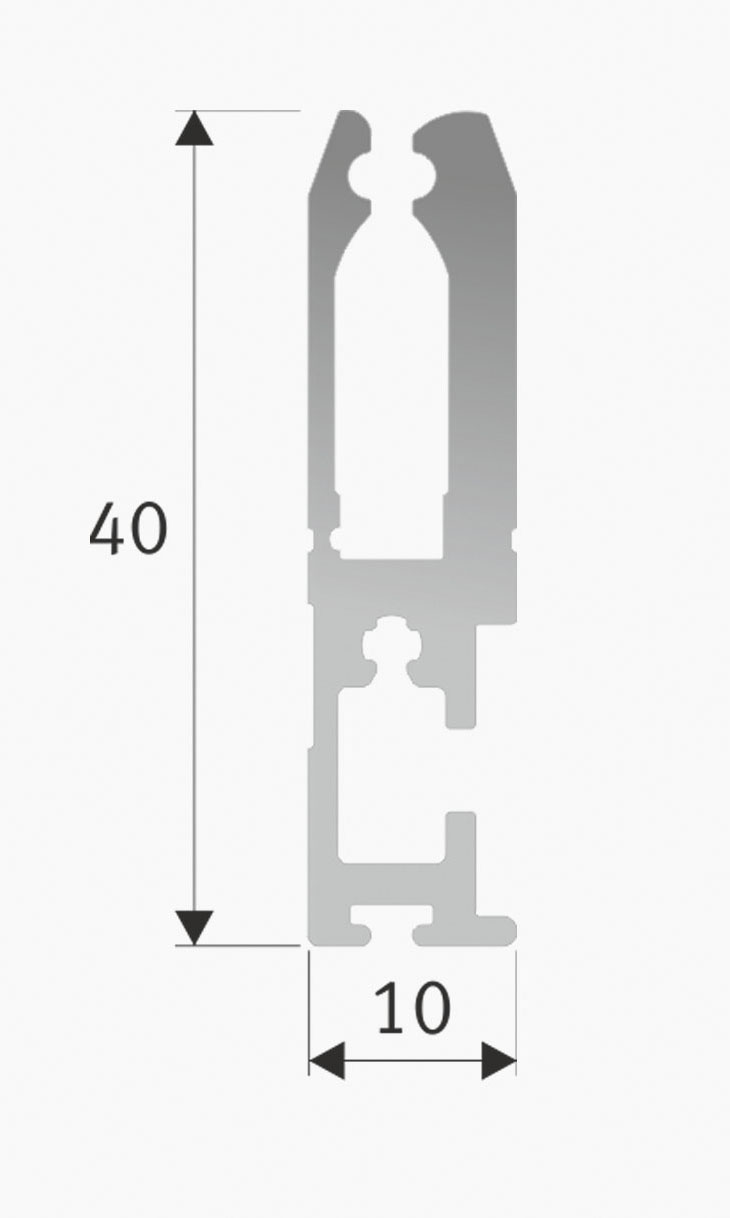

      Bottom rail S
  • Installation
    •

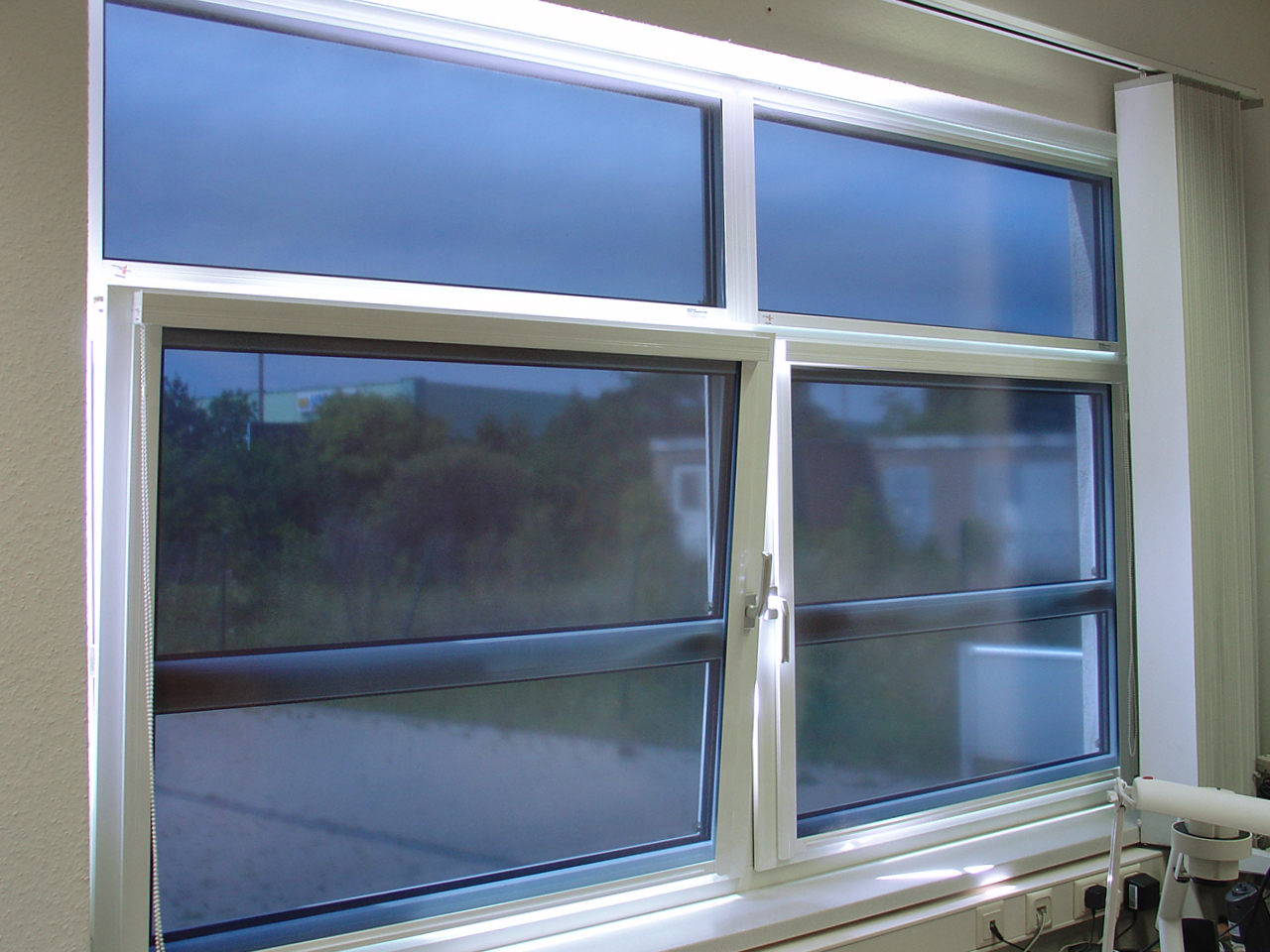

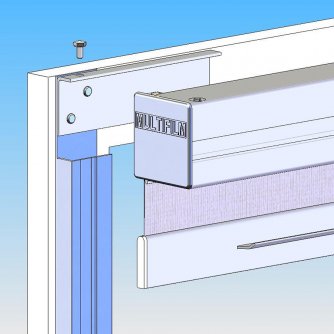

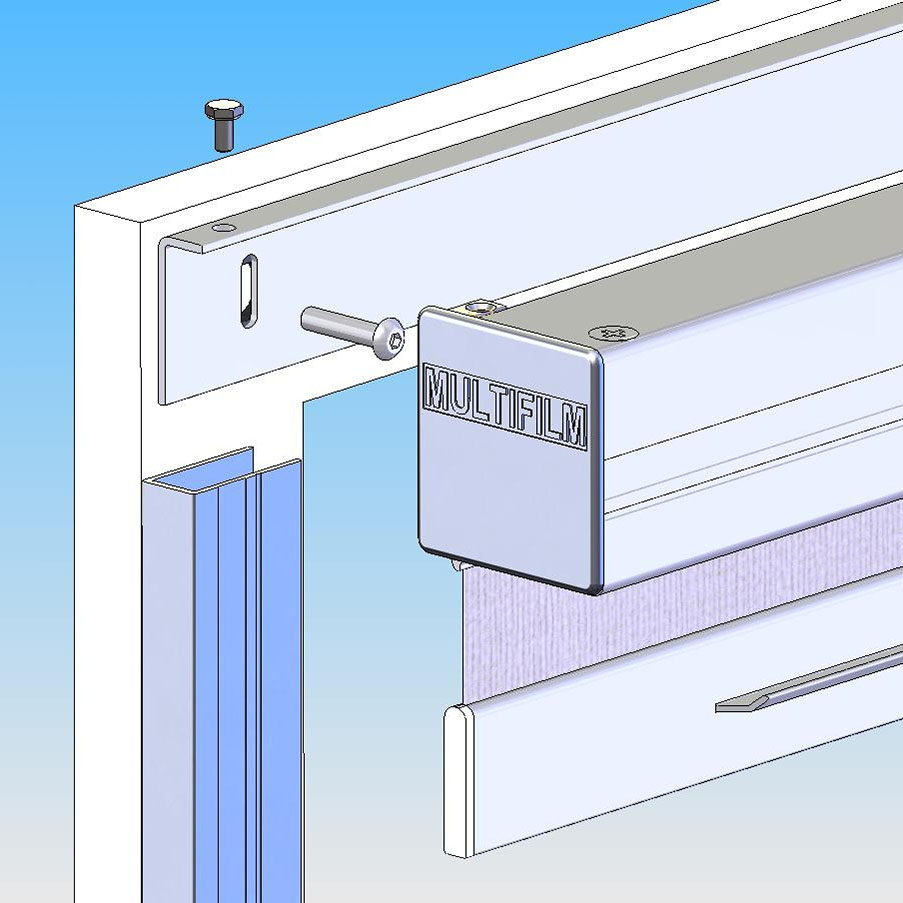

      Screw-fitting on the frame
    •

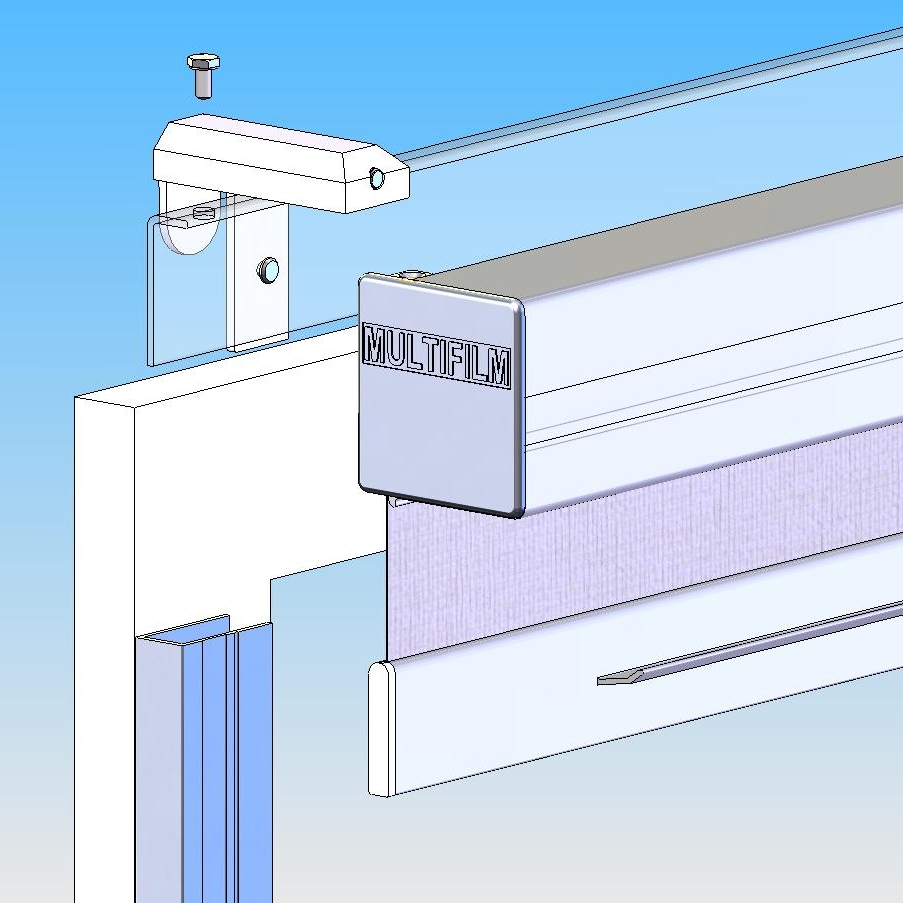

      Installation with clamps on the frame (without drilling)
    •
      Adhesive installation on the frame (no drilling)
    •

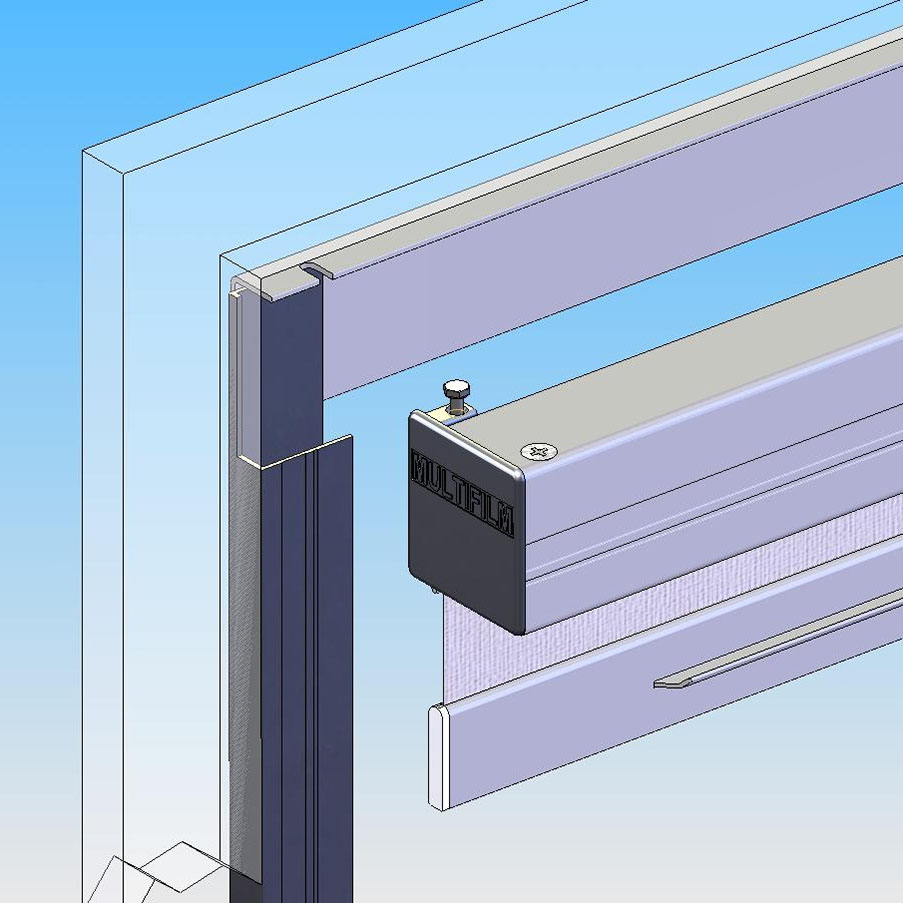

      Adhesive installation into the frame (no drilling)
